Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector n male crimp for lmr500 cable n-c-jlmr500 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

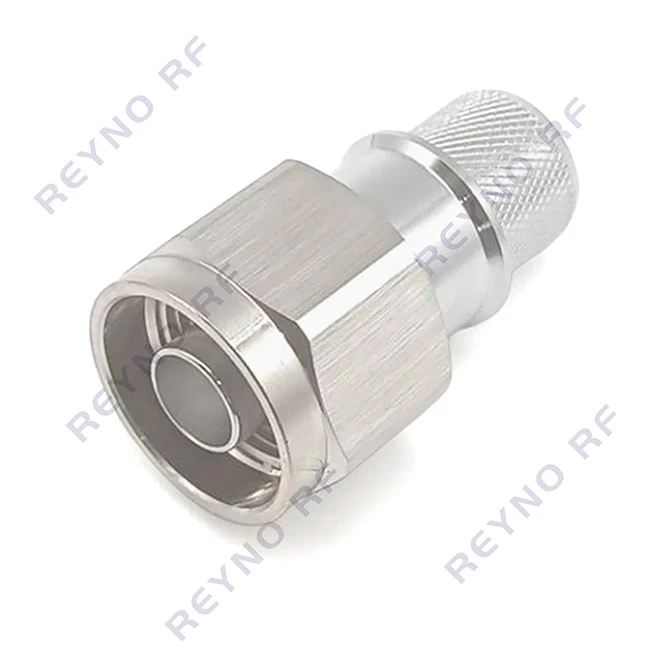

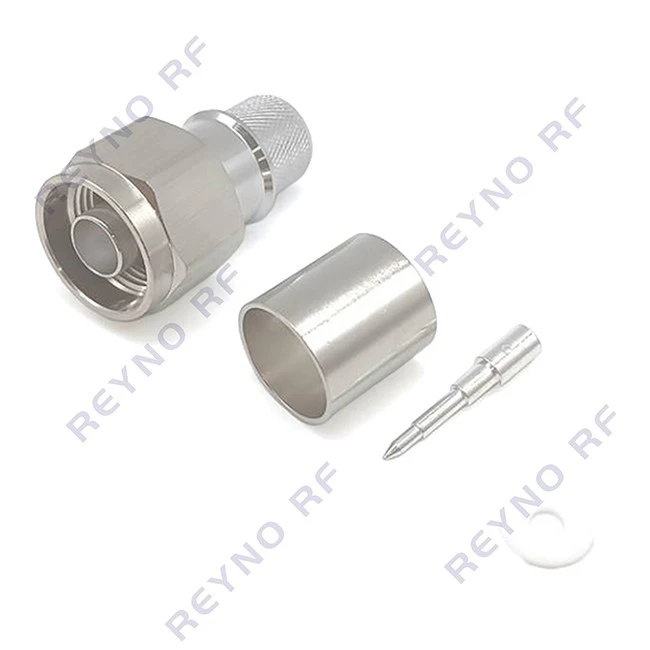

RF Coaxial Connector n type crimp connector for LMR500, Crimp type. The connector body is brass, ternary alloy plated, The center conductor is brass, silver-plated, and PTFE is commonly used as dielectric insulator. It is specially matched with 50 Ohm low-loss LMR500 coaxial cable, and widely applied in mobile communication, wireless base stations and microwave test equipment.
Features
Designed for LMR500 Cable
This n type crimp connector is engineered specifically for LMR500 coaxial cable, ensuring precise dimensional matching during installation.
Secure N Male Connection
The threaded N Male interface locks securely into standard N Female connectors, making N-C-JLMR500 a reliable choice for RF and wireless communication setups.
Crimp Termination
The crimp design delivers solid mechanical retention and a consistent connection, as long as proper cable prep and crimping procedures are followed.
Customized Cable Assemblies
We can supply the connector as a standalone part or pre-assembled with LMR500 cable, tailored to your required lengths and configurations.
OEM Supply
We customize cable assemblies and connector setups to meet OEM project needs, communication equipment specs, and specialized RF system requirements.

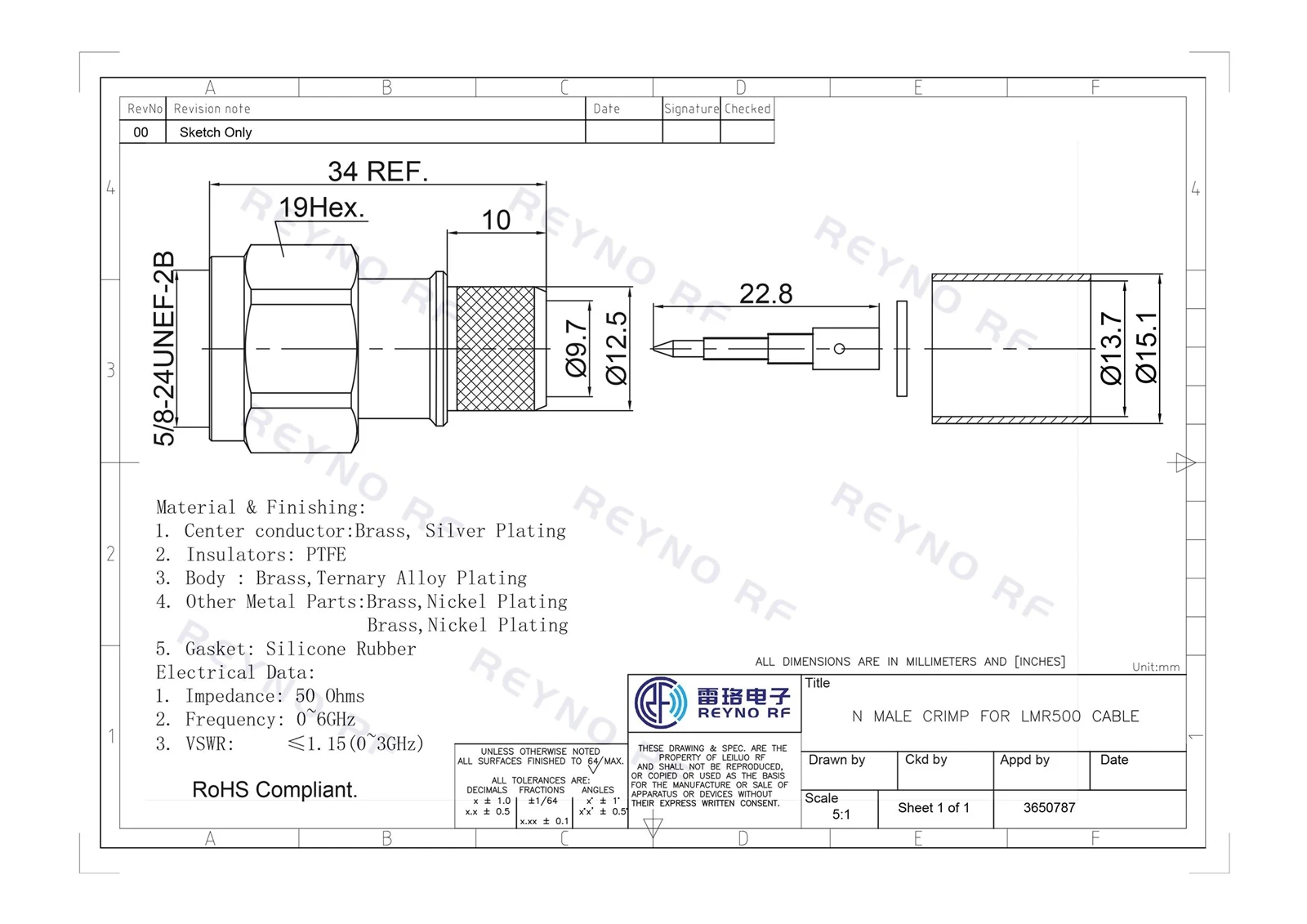

Specifications
|
Connector Type |
N-C-JLMR500 |
|
Cable Type |
LMR500 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor: |
Brass, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
This n type crimp connector fits LMR500 coaxial cable. Machined dimensions match the cable perfectly, so technicians can assemble it easily on site. The threaded coupling mates firmly with standard N female connectors. This robust connection is common for RF and wireless hardware.
When you strip and crimp the cable correctly, the crimp joint holds mechanically strong and keeps stable RF performance. We supply this connector loose, or build finished LMR500 cable assemblies cut to your specified length and layout. OEM modifications are available for custom RF systems.
Common use cases: wireless & RF antenna systems, base station antenna feeders, outdoor communication units, radio networks, RF signal transmission, microwave links, RF test instruments, telecom infrastructure and bespoke RF cable harnesses.
FAQ
How about Lvdao's after-sale policy and term
We provide warranty for our products. Within the warranty period, quality related problems caused by us will be solved for free. We supply long term technical consultation.
How to contact,negotiate and cooperate with LENO RF
You can reach us by email, WhatsApp or video meeting. Tell us your product requirements, then we discuss details and confirm orders.
If I were to visit your company, which airport is closest to your company
Changzhou Benniu International Airport
How can I get a sample to check your quality
Please send us your sample requirements. We will prepare samples and send them to you after sample payment and freight are confirmed.
