Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector n male crimp for lmr240 cable n-c-jlmr240 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

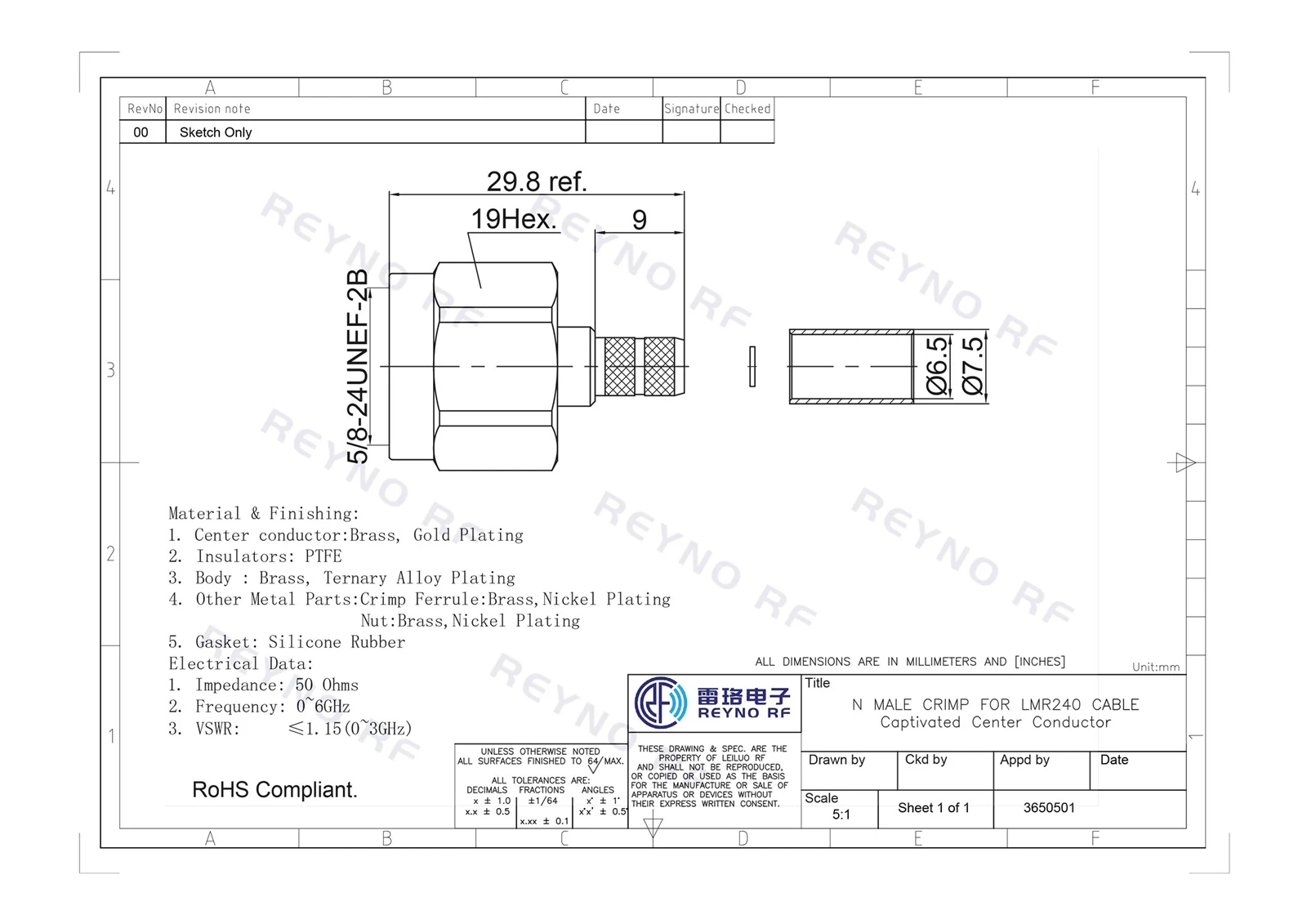

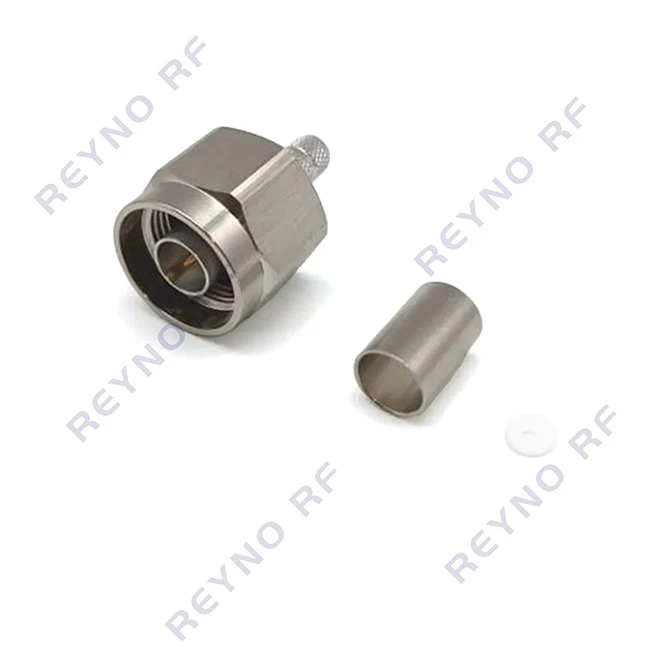

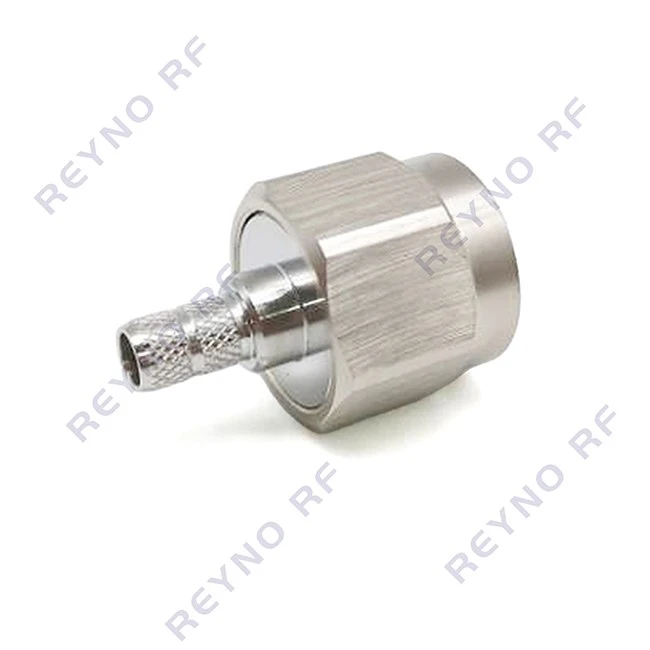

The type of lmr 240 n type connector is N-C-JLMR240. The connector body is brass,ternary alloy-plated, The center conductor is brass, gold-plated, and PTFE is commonly used as dielectric insulator. It is specially matched with 50 Ohm low-loss LMR240 coaxial cable, and widely applied in mobile communication, wireless base stations and microwave test equipment.
Features
LMR240 Cable Compatibility
The connector is specifically designed for LMR240 cable, helping maintain proper dimensional matching between the cable and connector during assembly.
Secure N-Type Connection
The threaded N Male interface provides a firm connection and is widely used in RF and wireless communication systems.
Reliable Cable Termination
The cable termination structure is designed to maintain stable contact between the center conductor, dielectric, shielding layer and connector body.
Custom Cable Assembly
N-C-JLMR240 can be supplied separately or assembled with LMR240 coaxial cable according to required cable length, connector configuration and assembly requirements.
Specifications
|
Connector Type |
N-C-JLMR240 |
|
Cable Type |
LMR240 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor: |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The lmr 240 n type connectors have been widely used in the following aspects:
Private Network Infrastructure
4G/5G base stations and outdoor feeder systems
Signal Transmission
High-power wireless bridges and amplification solutions
Industrial Connectivity
Antenna jumpers for GPS, IoT, and industrial wireless applications
Testing & Maintenance
RF test instruments and radio communication feedlines
FAQ
When can I get the price?
Normally we will send you the quotation within 24 working hours after receiving your detailed requirements.
What's your MOQ?
Regular connectors: 300 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
What is your delivery time?
Regular models require 15 days, while some complex connectors require 25 days.
Which certificate do you have?
Our products can meet CE, RoHS standards. ISO:9001
