Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector n female crimp for lmr400 cable n-c-klmr400 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

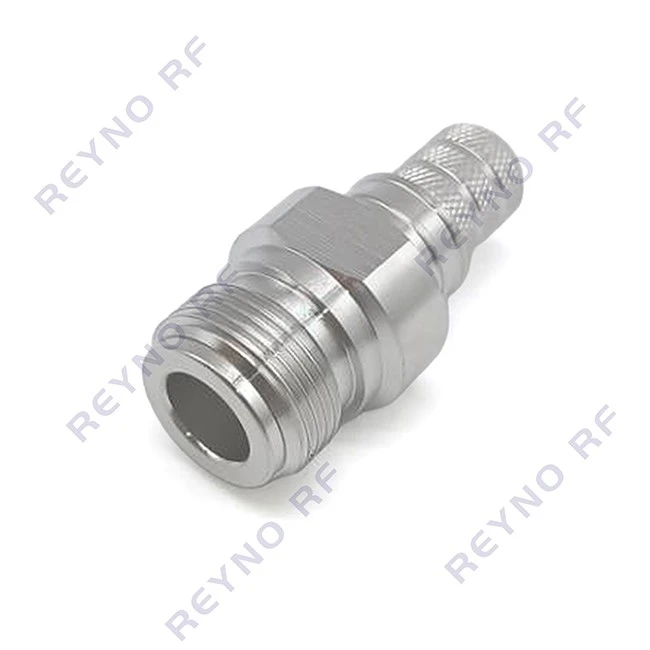

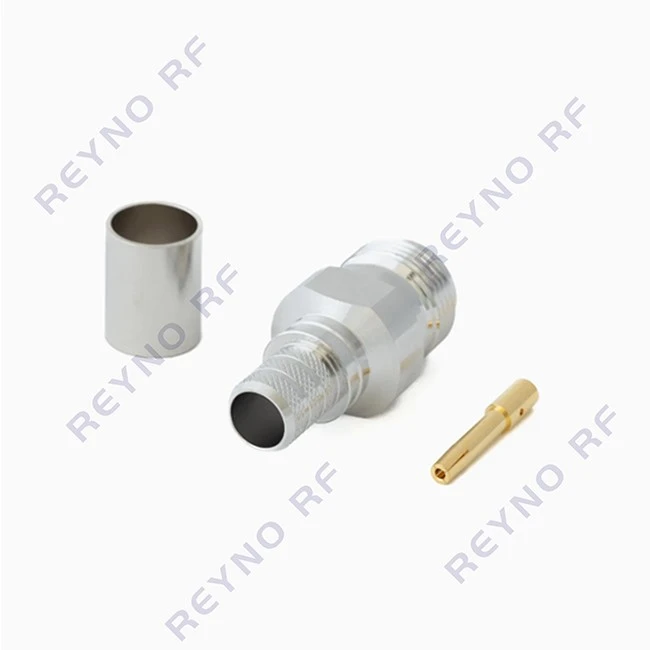

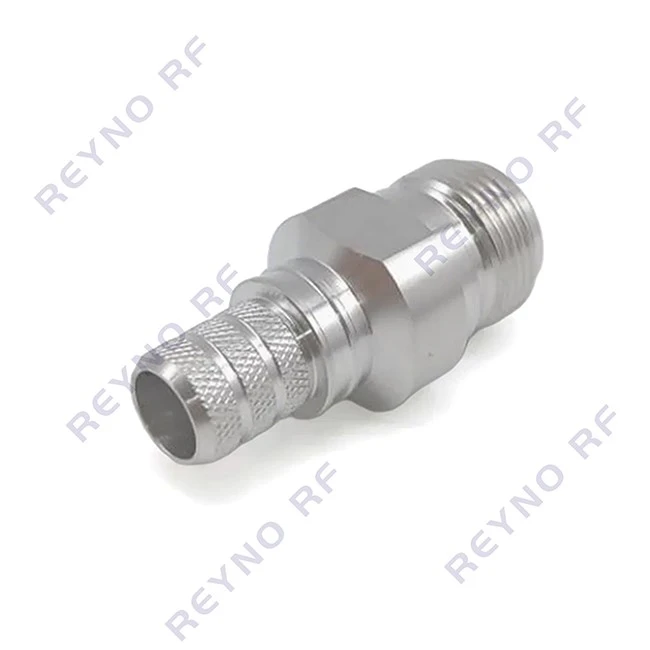

Straight N female crimp coaxial connector designed for LMR400 low-loss 50 ohm coaxial cable. Threaded coupling ensures stable and vibration-resistant connection. Brass housing with gold-plated female contact and PTFE dielectric provides low VSWR up to 11GHz. Crimp termination enables fast field assembly without soldering. The lmr400 n type connectors handle higher power for long-distance RF transmission, widely used for base station antenna feeders, microwave radio, broadcast and outdoor wireless systems.
Features
Low-loss transmission
Matching the low-loss characteristics of LMR400 cable, signal attenuation is only about 10.5dB per 100 meters in the 2GHz band, reducing loss by more than 30% compared to traditional RG-8 cable.
Reliable connection
The threaded locking structure provides excellent vibration resistance, and the crimping process ensures 360° grounding of the shielding layer, effectively preventing signal leakage.
Environmental adaptability
A wide operating temperature range and silicone rubber sealing design meet the long-term use requirements in harsh outdoor environments.
Easy installation
The crimped structure of lmr400 n type connectors requires no welding; cable termination can be quickly completed with a dedicated crimping tool, reducing construction difficulty.
Specifications
|
Connector Type |
N-C-KLMR400 |
|
Cable Type |
LMR400 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor bronze, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
This lmr400 n type connectors suit feeder wiring for mobile base station systems, covering GSM, CDMA, 5G and other mainstream network standards. It supports RF signal transmission for various antenna systems and satellite ground station equipment, and is also applicable to RF wiring for broadcast devices and WLAN wireless coverage systems. In addition, it can be used for RF connection matching in medical equipment, automotive electronic modules and industrial testing instruments, and adapts to custom cable assembly production for both indoor and outdoor communication scenarios.
FAQ
What machines you have in your factory
We own injection molding machines, stamping machines, CNC machines, assembly lines and various testing equipment.
What is the customer you work with
We main customer is LUXSHAREICT,Rosenberger,AMPHENOL ,HUBER SUHNER,ANDREW.
How far is your factory from the airport and train station
Our factory is 28.2kms away from the Changzhou benniu airport and 17.9kms away from the Danyang train station.
Do you have a export licence
Yes, we have complete export licence.
