Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector n male crimp for lmr300 cable n-c-jlmr300 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

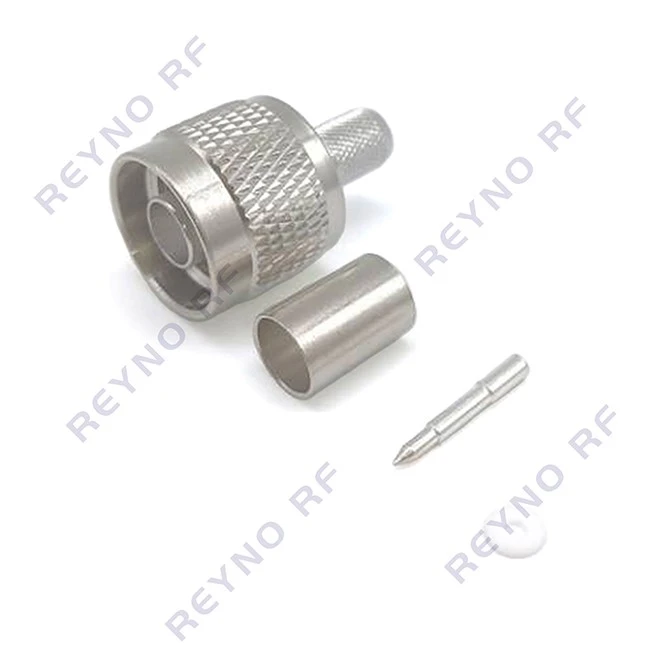

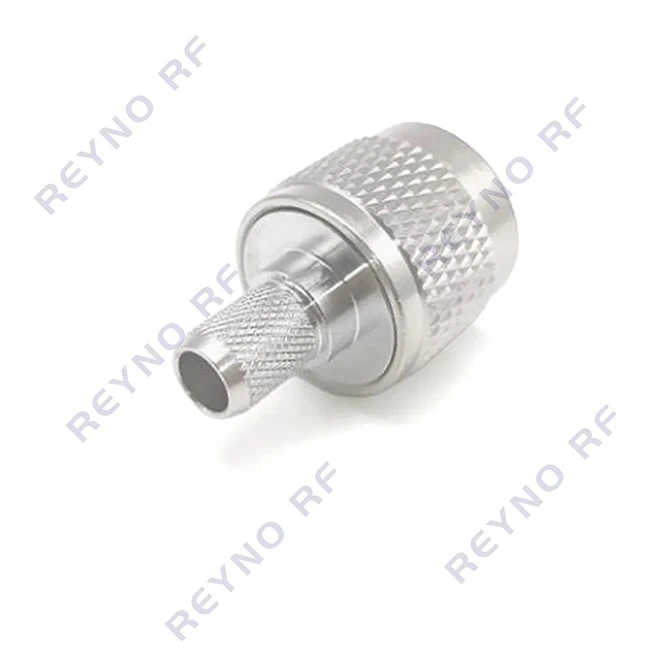

RF Coaxial Connector N Male Crimp for LMR300, Crimp type. The type of crimp n connector is N-C-JLMR300.The connector body is brass, ternary alloy plated, The center conductor is brass, silver-plated, and PTFE is commonly used as dielectric insulator. It is specially matched with 50 Ohm low-loss LMR300 coaxial cable, and widely applied in mobile communication, wireless base stations and microwave test equipment.
Features
N-type threaded locking design. It's vibration-resistant and anti-loosening, built to handle tough outdoor engineering conditions better than standard connectors.
O-Exclusively compatible with LMR300 cable. Offers lower high-frequency attenuation, higher power handling, and longer transmission distances.
Uses a standardized crimping process. Simple to assemble with high consistency, making it ideal for mass production of patch cords.
Features a gold-plated inner core and nickel-plated outer shell. This combination ensures low loss, strong anti-interference, and corrosion resistance.
Delivers stable transmission across the full frequency band with low VSWR and low intermodulation, meeting the strict requirements of precision RF equipment

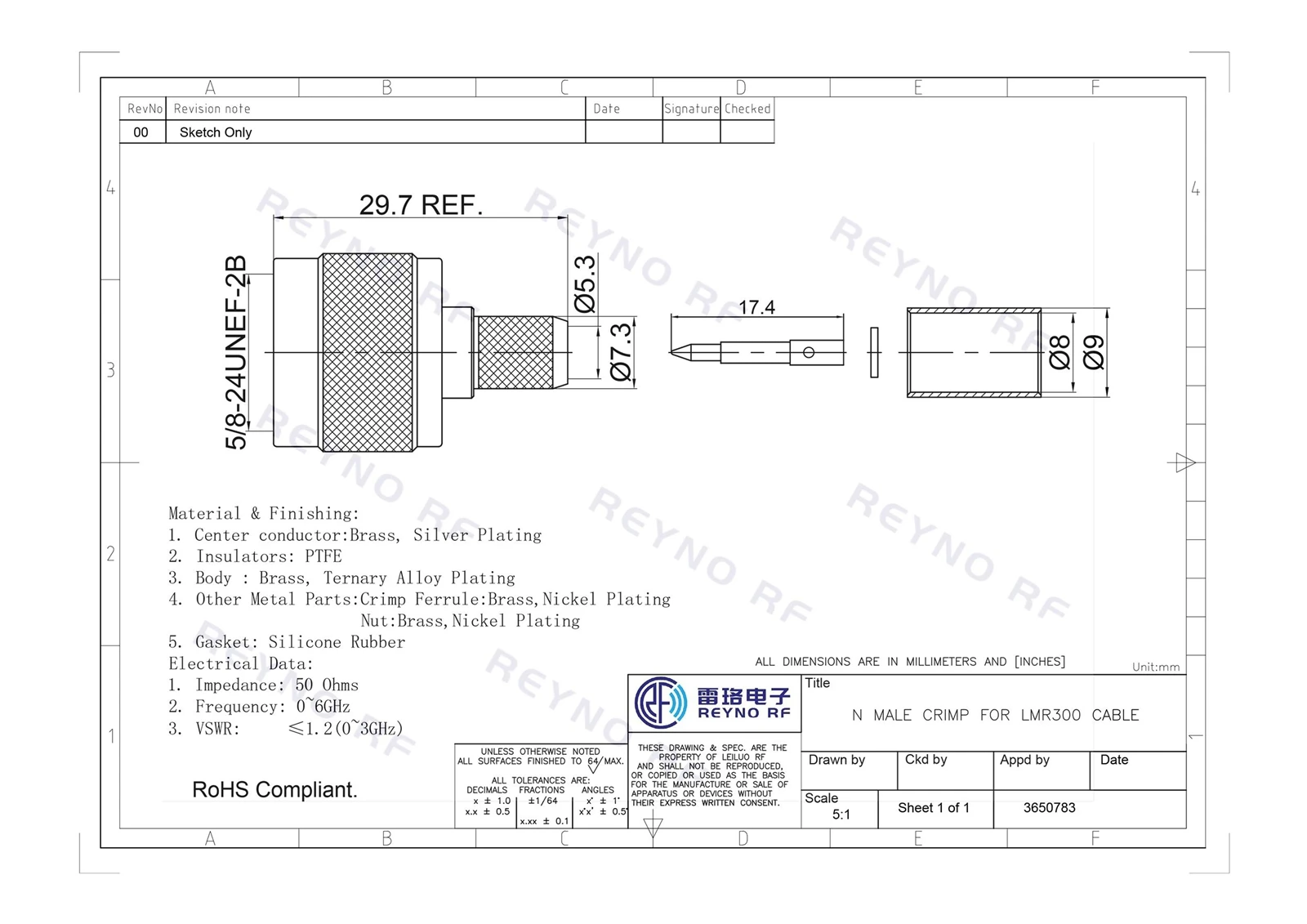

Specifications
|
Connector Type |
N-C-JLMR300 |
|
Cable Type |
LMR300 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤ 1.2 (0 ~ 3 GHz) |
|
Center Conductor: |
Brass, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The crimp n connectors have been widely used in the following aspects:
4G/5G Private Networks & Outdoor Macro Base Stations
Designed for robust feeder connections in relay stations and macro base station deployments.
High-Power Wireless Bridges & Industrial WiFi
Built for heavy-duty signal amplification and long-distance transmission systems.
GPS Positioning & IoT Wireless Terminals
Reliable connectivity for industrial wireless communication equipment and tracking systems.
RF Test Instruments & Radio Communication
Essential for outdoor security wireless transmission and field testing applications.
FAQ
Do you have the test and audit service?
We carry out full-range in-house product testing.
Do you provide samples? Are they free?
Samples are available. Normally sample cost and freight need to be covered by customers. We can refund sample fees when you place bulk orders.
Can you provide the shipping service?
Yes, we can arrange shipment for you. You can choose your preferred shipping method.
How can we get a quote?
You can contact us via email and WhatsApp, and tell us your detailed requirements, then we will offer you a quotation.
