Introduction

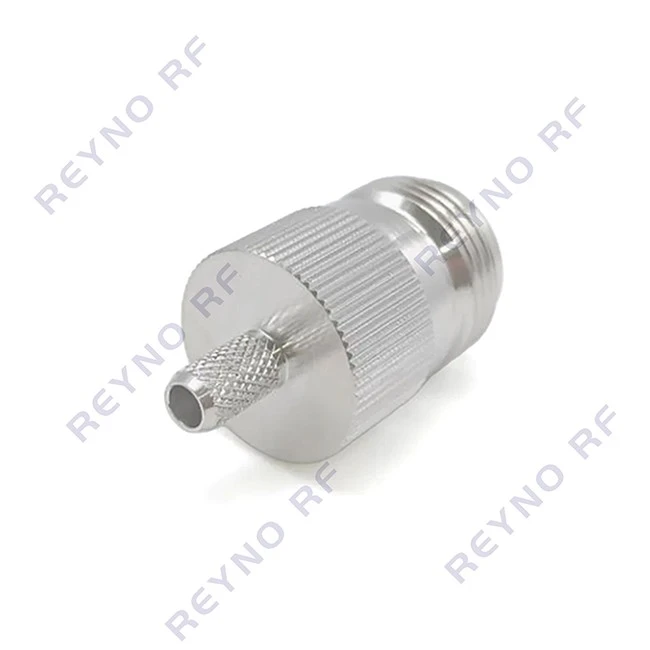

This n type rg58 connector is machined to fit RG58 coaxial cable for RF, wireless and antenna installations. It combines a standard N female interface with crimp termination sized for RG58 cable structure.

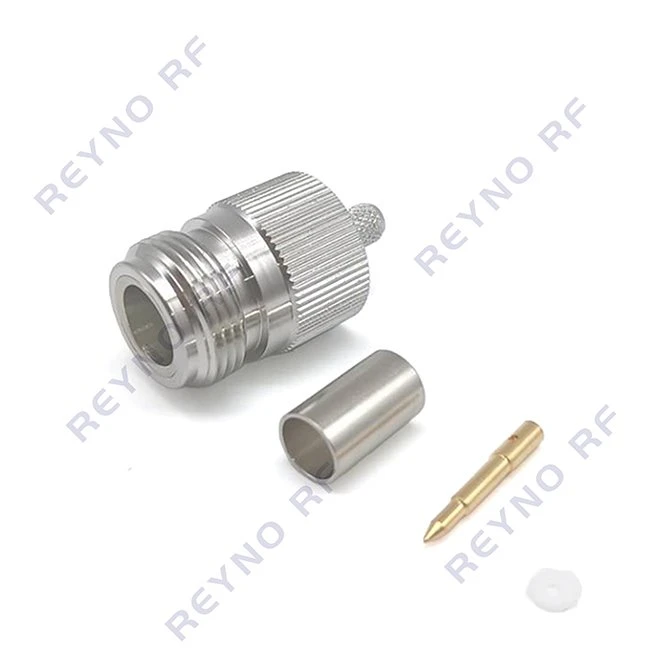

The threaded coupling mates with matching N male connectors. The crimp construction secures the cable during assembly and maintains electrical contact between cable and connector, with no soldering required.
RG58 is a common 50Ω cable used for radio communication and measurement instruments. This n type rg58 connector provides a durable interface to connect RG58 cable to antennas and other N-type parts.
We offer separate connectors, or fabricate RG58 cable assemblies with specified lengths and connector combinations according to your equipment interfaces and cable layout.
Features
- N-type thread locking, secure connection, vibration resistant.
- Crimp-fit structure, no welding required, quick on-site assembly.
- PTFE insulation, stable high-frequency performance, low signal loss.
- Gold-plated beryllium copper female connector, corrosion resistant, reliable contact over long-term use.
- Compatible with RG58 fine cable, flexible wiring, suitable for wiring in confined spaces.

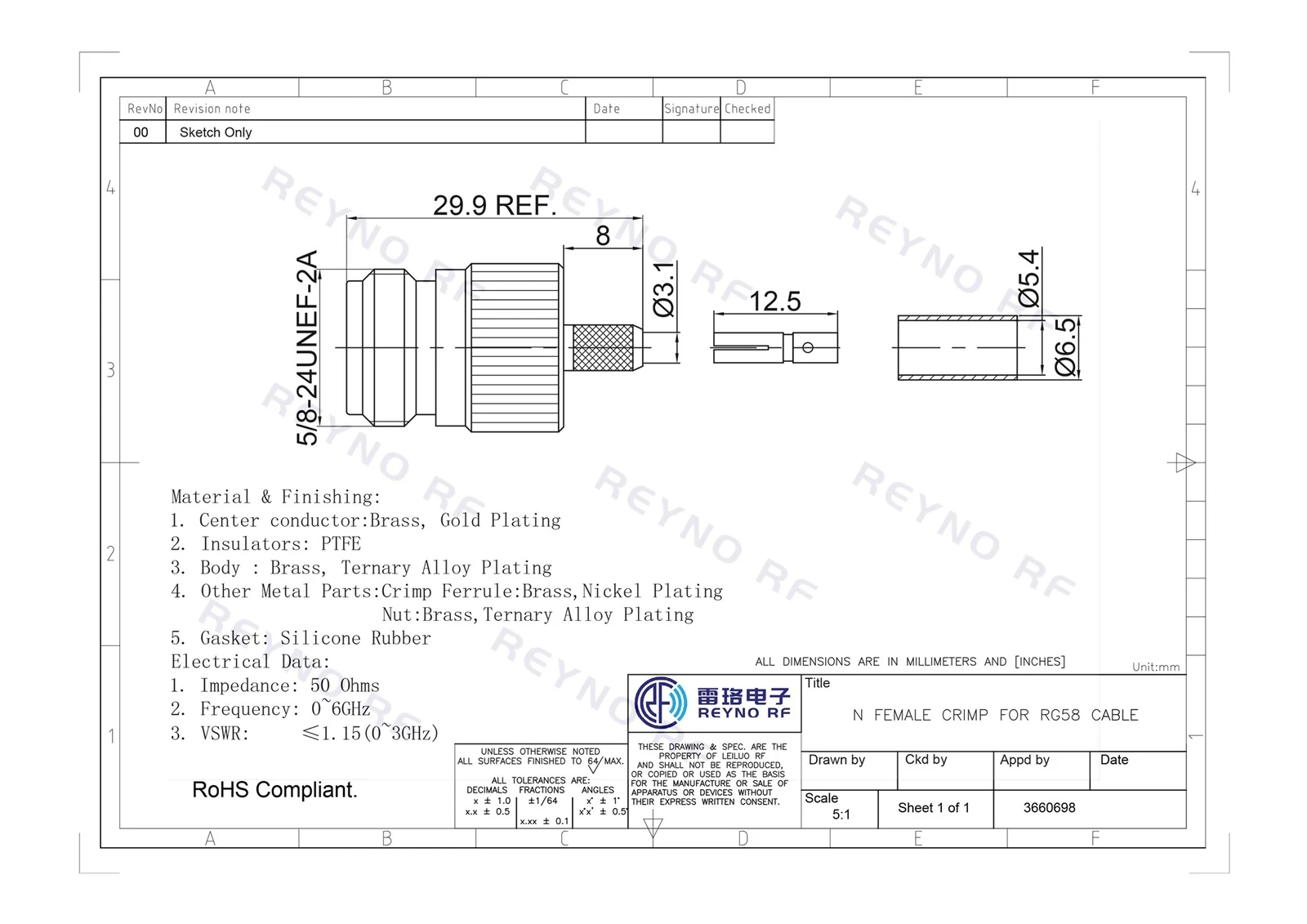

Specifications
|
Connector Type |
N-C-KRG58 |
|
Cable Type |
RG58 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15(0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating,Ternary Alloy Plating |
|
Gasket |
Silicone Rubber |
Applications
The n type rg58 connectors have been widely used in the following aspects:
Feeder cables for walkie-talkie systems and RF connection cables for wireless APs
RF test cables used in laboratories and probe cables for spectrum analyzers
Amateur radio communication setups
Industrial wireless hardware and wireless signal transmission for security systems
FAQ
Would you have a discount if l have a large order
Yes, better price will be offered for large‑volume orders according to order quantity.
Can I mix orders of different styles
Mixed order is acceptable. Please discuss details with our sales.
Can I request to advance the shipment
We will try our best if advance shipment is required. It depends on our current production schedule.
What is your advantage compared with your competitors
We are direct manufacturer with strong R&D capability. We support full customization, strict pre shipment testing, stable quality, competitive price and complete after sales technical support.
