Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector n female crimp for rg141 cable n-c-krg141 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

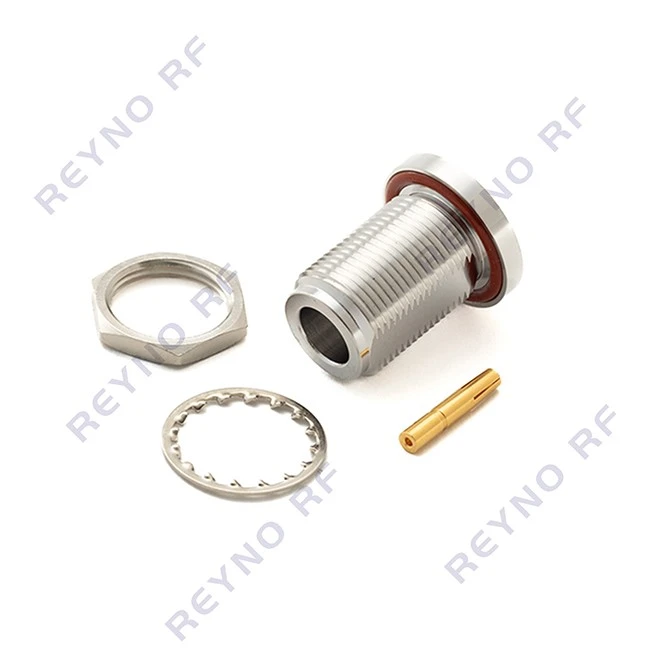

This is a standard N-type female connector built specifically for RG141 coaxial cables. We designed it to handle the physical demands of outdoor and industrial environments without sacrificing signal integrity.The n female crimp connector features a solid crimp attachment method, meaning no soldering is required for the outer conductor, which makes field installation much faster and more reliable.
Features
This N-C-KRG141 connector is machined to fit RG141 coaxial cable, supporting standard dimensional matching for routine cable assembly. It features a threaded N female interface that mates steadily with standard N male connectors, suitable for common RF and microwave system connections. The crimp structure stabilizes cable fixation and delivers uniform termination results when operators follow standard cable preparation procedures and use matched tooling. The n female crimp connector serves as a functional N-type transition interface for RG141 cables deployed in RF, microwave, antenna and high-frequency communication systems.

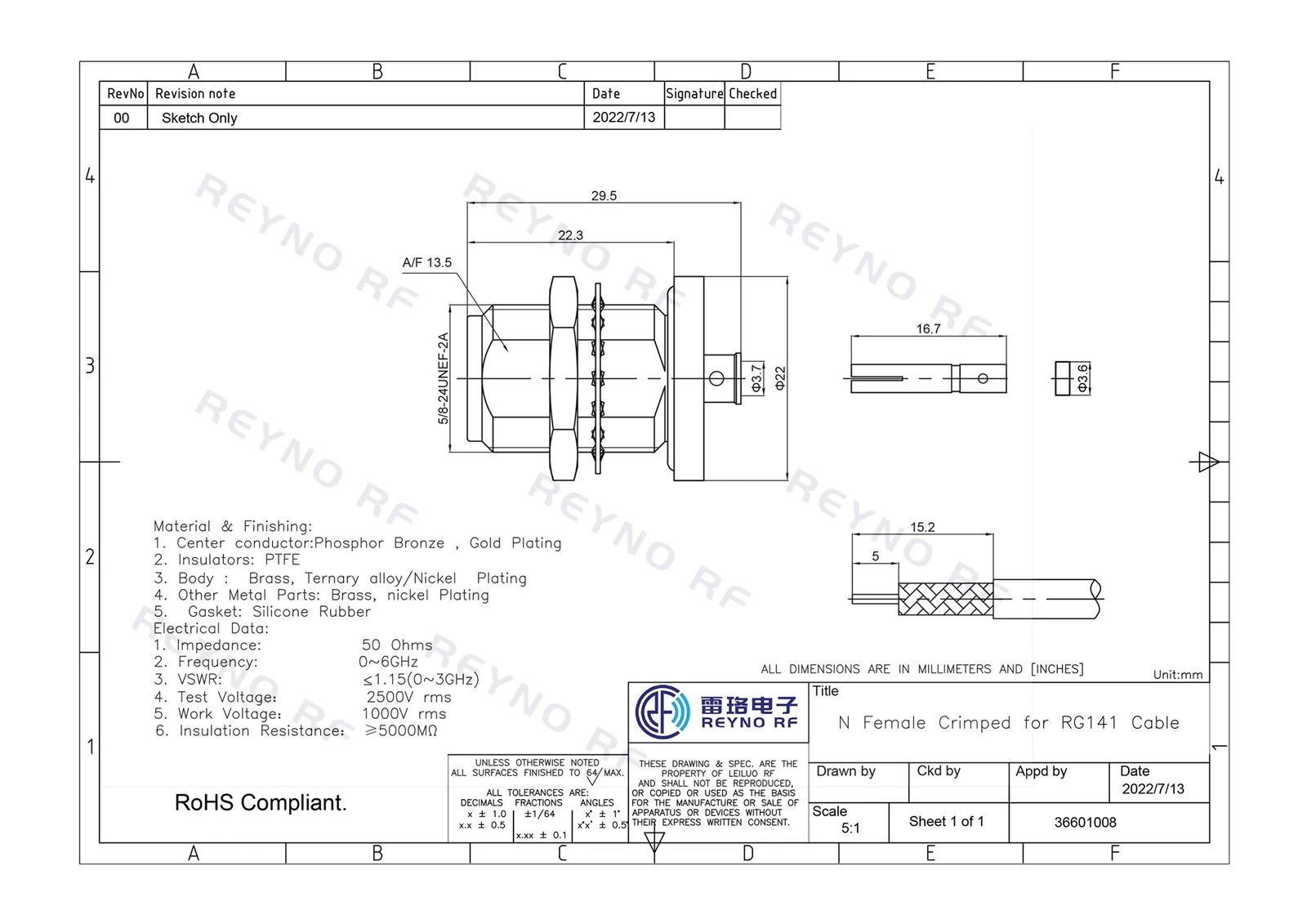

Specifications
|
Connector Type |
N-C-KRG141 |
|
Cable Type |
RG141 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15(0 ~ 3 GHz) |
|
Center Conductor: |
Phosphor Bronze, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy/Plating |
|
Other Metal Components |
Brass, Nickel Plating,Ternary Alloy Plating |
|
Gasket |
Silicone Rubber |
Applications
The n female crimp connectors have been widely used in the following aspects:
Cellular base stations and signal repeaters
Amateur radio and commercial two-way radio setups
Wi-Fi and wireless local loop (WLL) installations
Broadcast hardware and ground stations for satellite communication
FAQ
How to solve the equipment trouble during using
Please describe the failure or send us pictures. Our technical team will give you guidance to solve the problem.
What quality assurance or guarantee do you offer if we purchase your products
Our products can meet CE, RoHS standards,ISO:9001
What to do with return
Returns will be accepted for quality problems caused by us. We will confirm the situation first, then arrange replacement or refund. For man made damage or wrong order from customer side, return is not available.
What if I don't have export experience
We can give you professional guidance. We can cooperate with your freight forwarder or arrange logistics for you.
