Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector 4.3-10 female clamp for 1/2 cable 4.3-10-k1/2 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

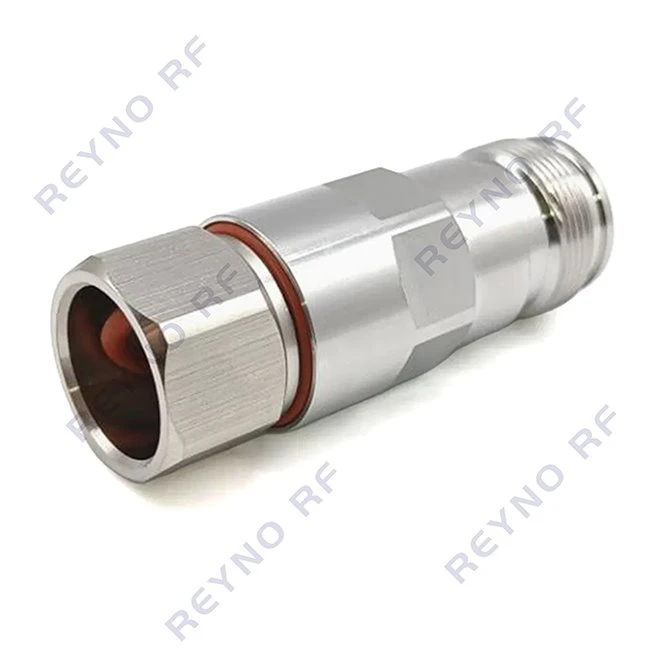

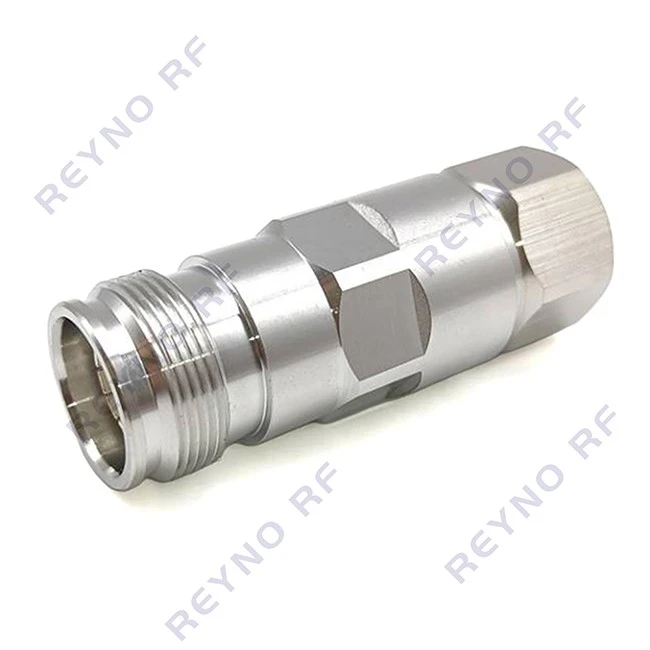

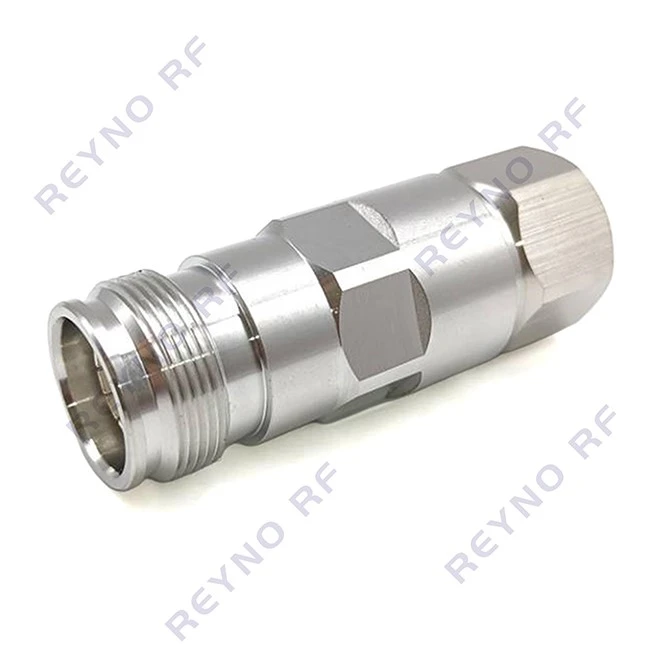

Straight 4.3-10 female clamp coaxial connector for 50 ohm 1/2 inch corrugated feeder cable. The 4.3 10 female clamp connector adopts clamp termination without soldering or crimping. Field assembly and maintenance can be carried out with standard hand tools. This 4.3-10 connector is designed for low-PIM performance. It has a compact size and lower weight than traditional 7/16 DIN connectors. The connector supports hand-tight or wrench coupling. A silicone O-ring provides IP67 protection when properly mated for outdoor deployment.
It serves 4G/5G base station feeder connections, DAS distributed antenna systems, rail tunnel radio coverage, large venue wireless networks, private radio networks and RF passive component interconnections.
Features
This 4.3 10 female clamp connector with standard 4.3-10 male connectors. It is used with 1/2 inch feeder cable. The clamp-style termination provides a secure mechanical connection between the connector and cable without soldering or crimping. Field assembly can be carried out with standard hand tools. This 4.3-10-K1/2 connector is suitable for producing custom RF feeder cables with specific connector combinations and lengths.

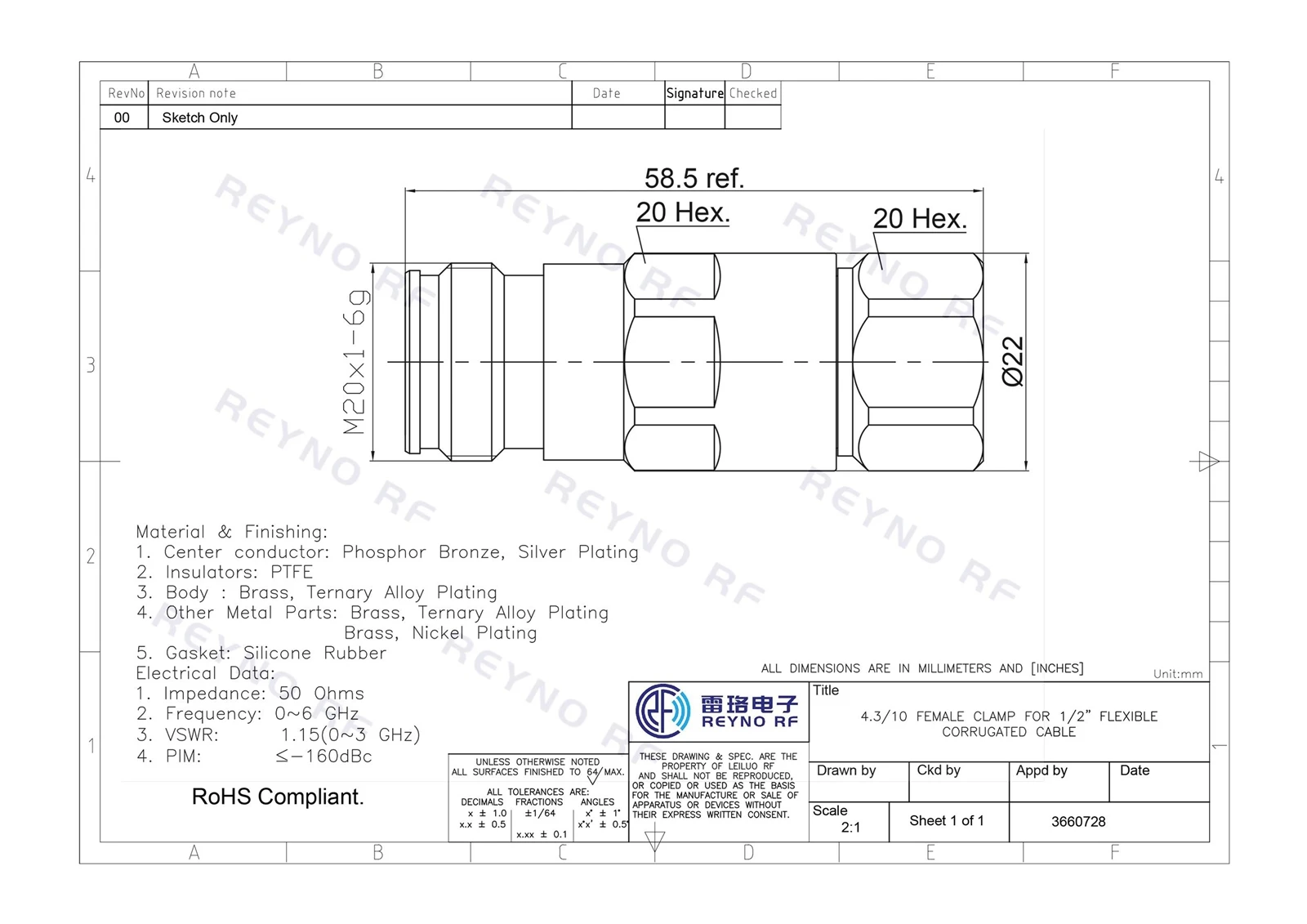

Specifications
|
Connector Type |
4.3-10-K1/2 |
|
Cable Type |
1/2" Flexible Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
This 4.3 10 female clamp connector terminates 1/2-inch feeder cable and mates with standard 4.3-10 male connectors. It is used for cellular base station installations, connecting RF equipment and antenna systems.
In antenna feeder assemblies, it connects antennas, radio units, and RF distribution components. It is suitable for 4G and 5G infrastructure where 4.3-10 interfaces are required. For distributed antenna systems, it is used in DAS feeder assemblies that distribute RF signals throughout buildings and other areas requiring RF coverage.
The connector is also used in communication equipment cabinets and RF equipment racks for 1/2-inch feeder cable connections. For projects requiring custom solutions, it can be assembled into RF feeder cable assemblies with specified lengths and complementary connector types on the opposite end.
FAQ
What is your company's core advantage
We are a direct manufacturer with strong R&D capability. We support full customization, strict pre-shipment testing, stable quality, competitive prices and complete after-sales technical support.
What are RF cables
RF cables are coaxial cables designed to transmit radio frequency signals with low loss and stable performance.
Are products tested before shipping
Yes, all products will go through strict inspection and testing before shipment.
Do you offer discounts for large orders
Yes, better prices will be offered for large-volume orders according to the order quantity.
