Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector 4.3-10 female solder for 1/4 super flexible cable 4.3-10-k1/4s-hj in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

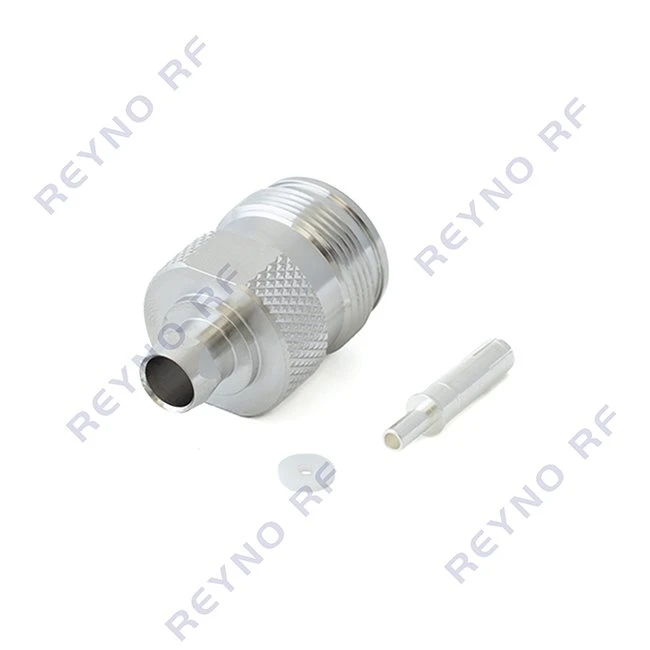

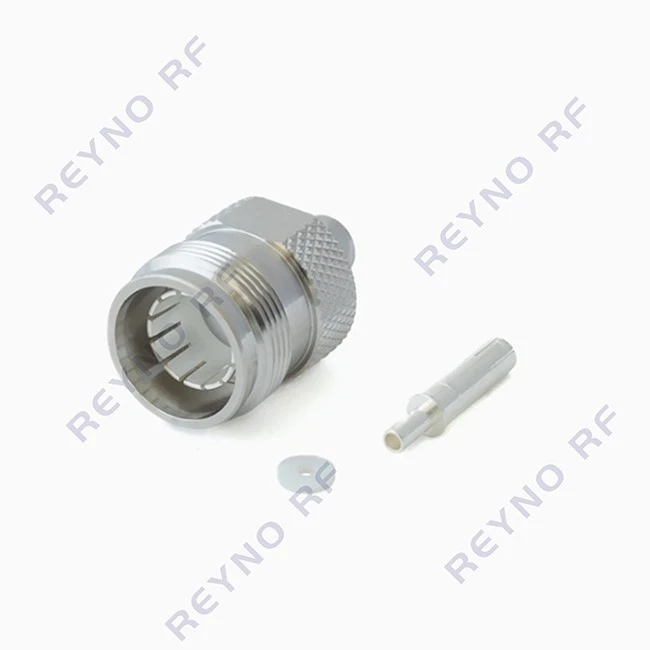

This 4.3-10 RF coax connector is designed for 0.250-inch super flexible RF coaxial cable. It has a standard 4.3-10 female interface and solder termination, and creates direct electrical and mechanical joints with matching prepared cables. The connector accommodates 0.250-inch cable for compact RF assemblies where small cable dimensions and space-efficient installation are required. Used with super flexible cable, it supports routing around RF hardware, antenna parts and site obstructions for constrained installation layouts. The 4.3-10-K1/4S-HJ connector serves custom RF cable assemblies, wireless communication hardware, antenna systems, RF module interconnections and professional RF test and measurement equipment.
Features
This 4.3-10 RF coax connector features a standard 50Ω nominal impedance. It operates from DC to 6 GHz, with custom variants extending the upper frequency limit to 12 GHz, matching the operational bandwidth of 0.250-inch ultra-flexible cables. External mechanical housings protect internal electrical contacts. This design lowers the risk of insertion loss rise and PIM deviation triggered by improper handling, impact damage and surface wear during field assembly.
Standard units are rated IP67, applicable for indoor system integration and outdoor base station deployment. The robust structure withstands humidity, dust and temperature fluctuations for outdoor and long-term field use.

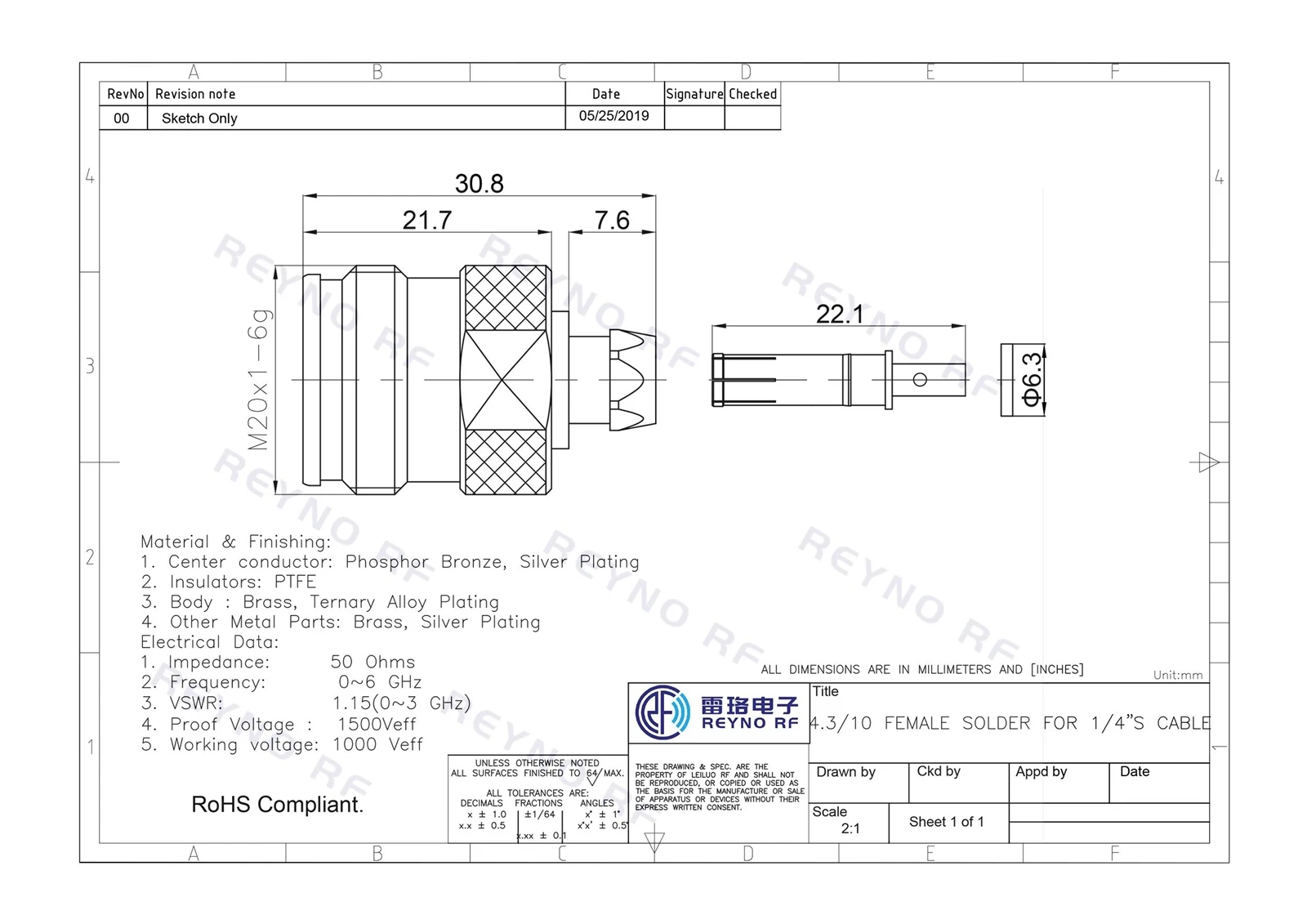

Specifications
|
Connector Type |
4.3-10-K1/4S-HJ |
|
Cable Type |
1/4" Super flexible Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Parts |
Brass, Silver Plating |
Applications
The 4.3-10 RF coax connector is used in 5G multi-carrier wireless systems, distributed antenna systems (DAS) and indoor RF distribution systems. It serves as antenna jumpers for wireless network links. The assembly fits dense cable runs within space-limited equipment rooms and urban micro-site deployments. It addresses interface matching between legacy and new hardware. Proper component selection reduces risks of VSWR alerts and signal attenuation linked to adapter tolerance deviations.
FAQ
How many product models do you have
We produce regular connectors, adapters and military-grade connectors, covering hundreds of models. Most of our products are customized according to customer needs.
Where are your products mainly used
Our products are widely used in industrial equipment, new energy, communication equipment, military facilities and automation equipment.
Can your technical team help solve product application problems
Yes, our technical team can provide professional guidance to solve product application and installation problems.
What is your quality guarantee
We implement strict quality control throughout every production procedure and conduct full inspection before shipment to ensure product quality.
