Introduction

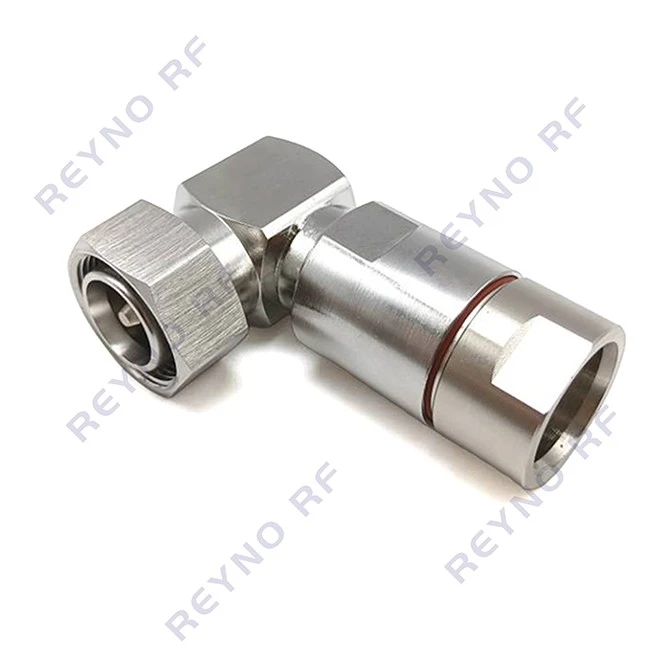

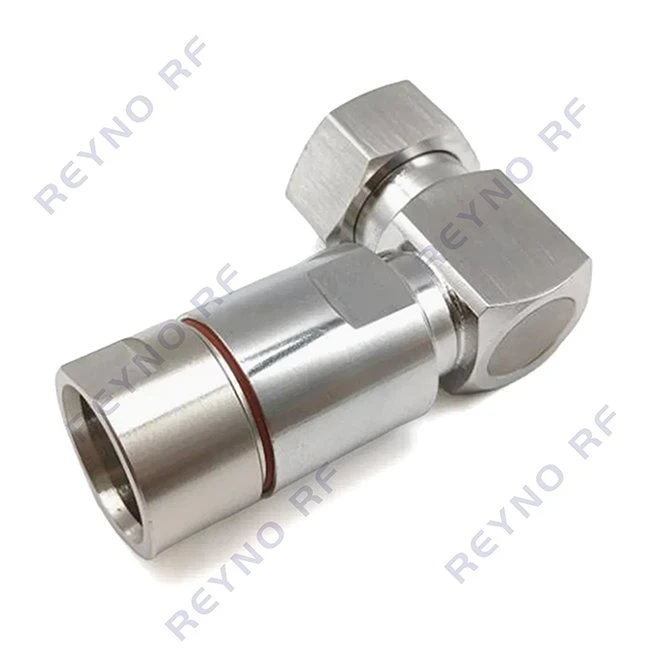

This 4.3 10 male right angle connector is for 1/2-inch feeder cable for wireless communication and RF transmission systems. The 90° configuration changes the cable routing direction. The right-angle body is useful in installations with limited rear clearance.The connector has a 4.3-10 male interface and clamp-style termination. It is used with 1/2-inch coaxial feeder cable for antenna feeder assemblies, base station hardware, distributed antenna systems and other RF infrastructure.
Features
This 90° right-angle connector provides a side cable exit, helping route the feeder cable around equipment housings and enclosure walls. It suits antenna and RRU connections with limited space, where straight connectors are difficult to install. The 90° layout provides additional routing space for large feeder cables such as 7/8-inch types.
Its clamp termination eliminates soldering and dedicated crimp tools. Installation can be carried out on site with standard hand tools. The clamp termination can be removed and reinstalled when the cable assembly needs to be serviced or replaced.
The 4.3 10 male right angle connector is designed to maintain consistent PIM performance over the specified installation torque range.
The 4.3-10 interface has a compact form factor compared with traditional 7/16 DIN connectors. Its compact size is suitable for base station panels where multiple RF ports are installed in a limited space.
For outdoor installations, the 4.3-10-JW1/2-1connector carries an IP67 rating. It withstands temperature variation, rain and coastal salt fog. The clamp structure is suited to applications subject to vibration and cable pull-out loads.

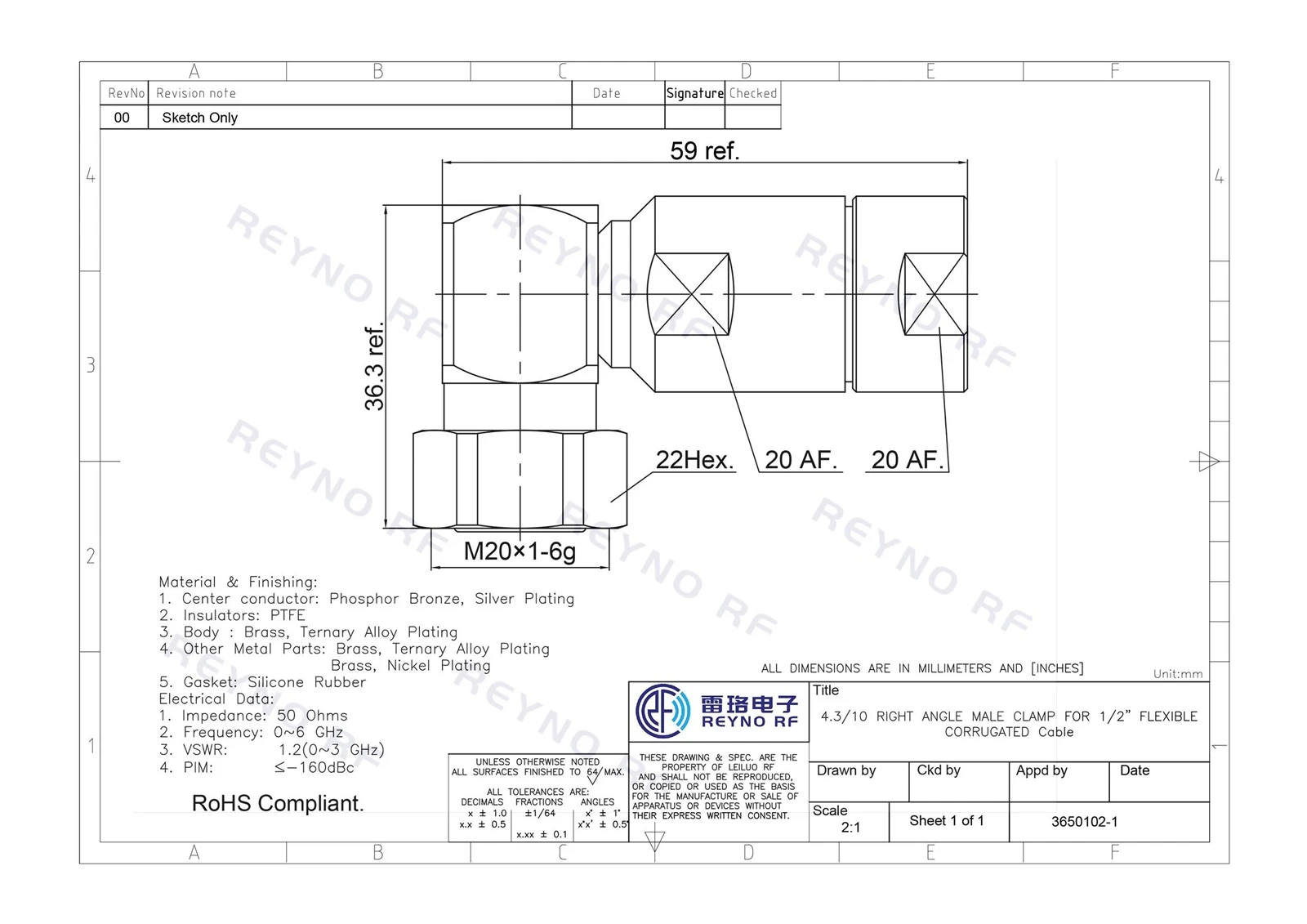

Specifications
|
Connector Type |
4.3-10-JW1/2-1 |
|
Cable Type |
1/2" Flexible Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.2 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 4.3 10 male right angle connectors have been widely used in the following aspects:
4G LTE / 5G base station feeder connections
RRH / AAU jumper assemblies
DAS and indoor distribution systems
Outdoor antenna and microwave feeder links
Telecom infrastructure requiring low-PIM, space-saving connectors
Installations where 90° cable routing is required
