Introduction

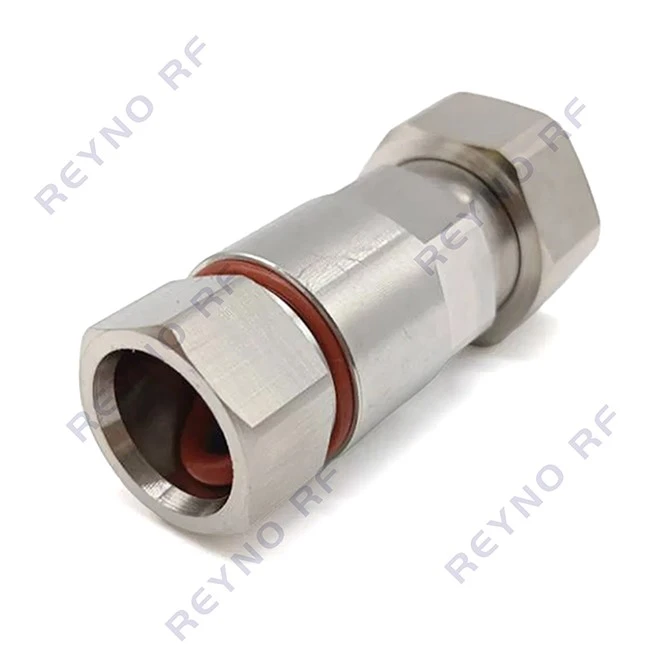

Straight 4.3 10 type male connector for 1/2-inch ultra-flexible corrugated 50 Ω feeder cable. This connector uses clamp-style termination. No crimping or soldering is required. Mechanical clamps fasten the connector to the corrugated outer conductor for field installation and repair.
The 4.3-10 interface supports low-PIM performance. It is more compact and lighter than 7/16 DIN connectors. The coupling nut accepts hand tightening or wrench tightening.
Features
The clamp-on structure removes welding and crimping steps. Field installation proceeds quickly, and disassembly or replacement can be carried out when faults occur. This low PIM design limits the influence of tightening torque on RF performance. The 4.3 10 type male connector is more compact and lighter than 7/16 DIN types. It fits high-density port layouts on RRUs and antennas. The connector carries an IP67 sealing rating. It works on rooftops and in outdoor cabinets, withstanding temperature variation, rain and salt spray. It mates with 1/2-inch ultra-flexible corrugated feeder cable. The cable has a low minimum bending radius for routing inside confined equipment spaces. The assembly withstands vibration and tensile load.

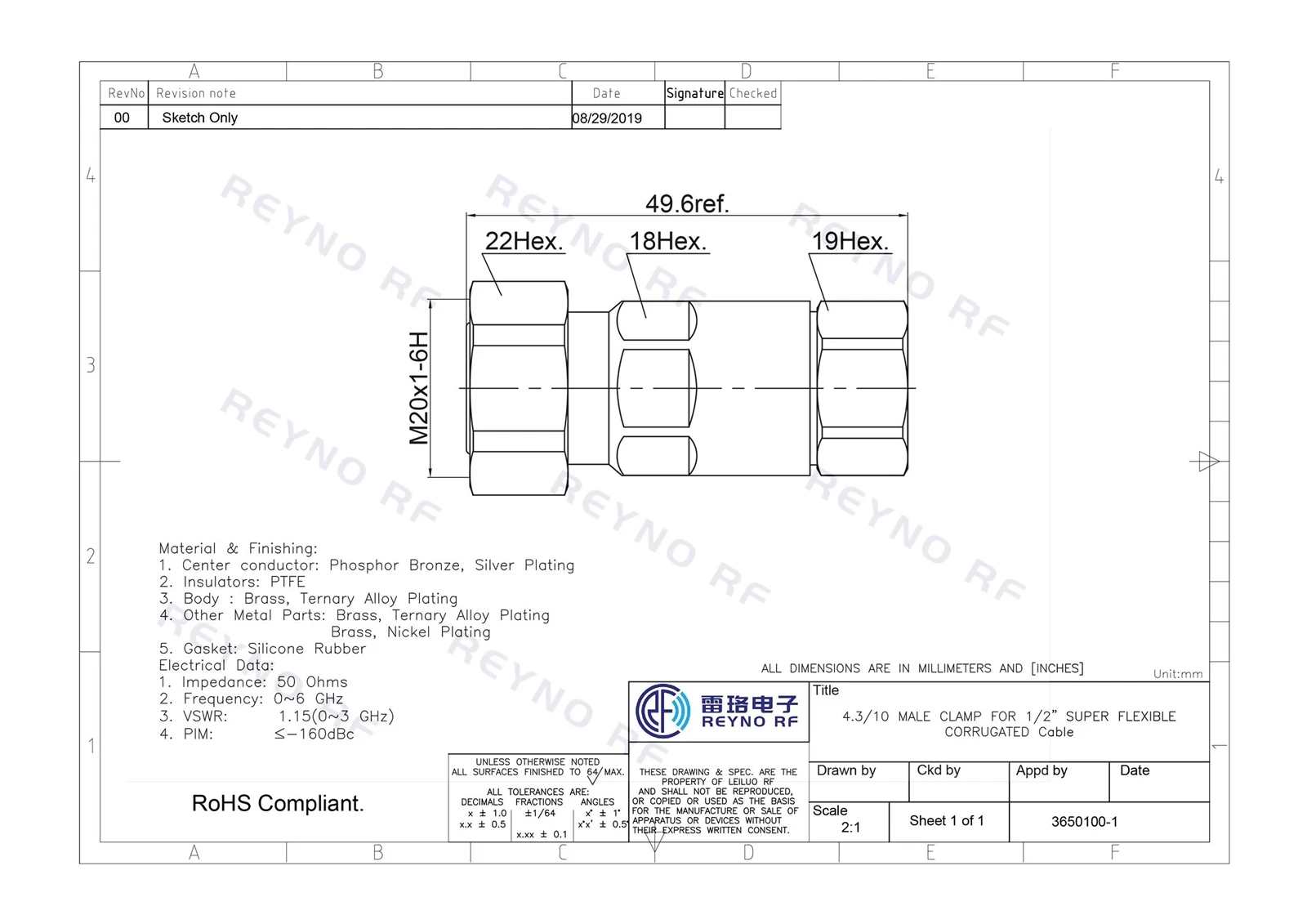

Specifications
|
Connector Type |
4.3-10-J1/2S |
|
Cable Type |
1/2" Super Flexible Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 4.3 10 type male connectors have been widely used in the following aspects:
- This 4.3-10-J1/2S connector forms short RF jumpers between RRUs and antennas on 4G and 5G macro and micro base stations, and supports feeder interconnection in tower-top confined spaces.
- DAS deployments in shopping malls, office buildings and underground parking areas use this connector for flexible feeder connections.
- For rail transit communication, it handles wireless coverage for dedicated wireless networks inside subway tunnels and along railway routes, and accommodates curved routing within equipment cabinets.
- Stadiums, convention centers and airports deploy this assembly for flexible RF links across combined indoor and outdoor communication systems.
- Outdoor antenna jumpers built with this connector serve private networks for public security, power and emergency communications.
- The connector establishes RF links between base station passive RF components including filters, combiners and power dividers.
