Introduction

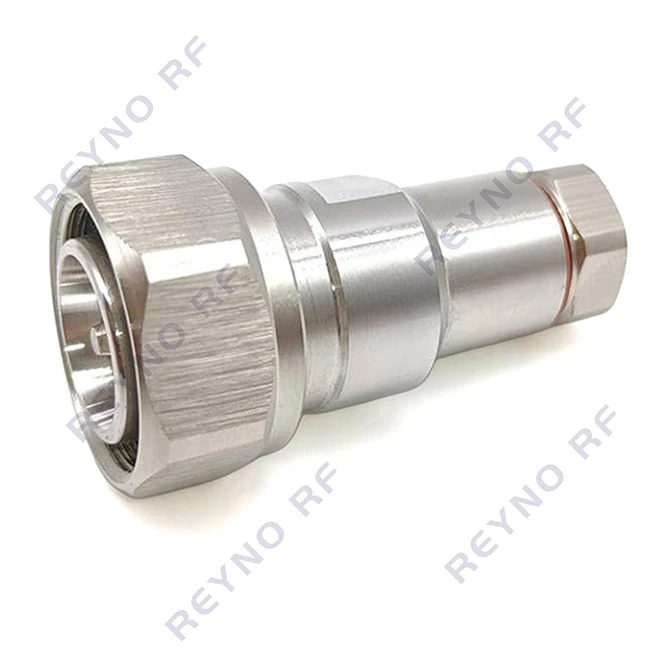

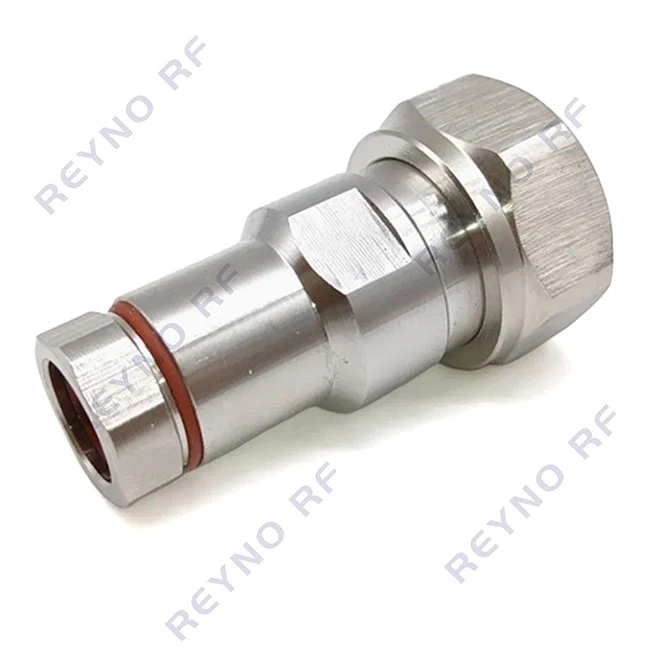

This 4.3 10 male clamp connector works with 1/4" corrugated coaxial cable. It is a 50 Ω RF interface with low PIM performance for feeder and jumper assemblies in installations with limited space. The unit features a 4.3-10 mating interface and clamp-style termination built for 1/4" corrugated coaxial cable. Small-cell sites, DAS, indoor distribution systems and compact antenna feeders use this connector for base station jumpers. The 4.3-10 interface is more compact and lighter than 7/16 DIN connectors, and suits crowded RF ports and panel layouts. Clamp termination eliminates soldering and forms mechanical and electrical connection with the corrugated outer conductor.
Features
The 4.3 10 male interface adopts a multi-thread coupling structure. It is used in modern wireless infrastructure such as 4G/5G base stations, small cells, DAS and antenna systems.
This clamp termination fits 1/4" corrugated cable. The clamp fastens to the corrugated outer conductor. Soldering is not required, and the structure lowers variation during assembly.
PIM3 performance can reach ≤ -160 dBc at 2×20W; values vary by manufacturer, cable type and test conditions. Low PIM helps reduce intermodulation interference within multi-carrier systems.
The connector has a 50 Ω impedance for RF signal transmission and reduced signal reflection.
The connector operates from DC to 6 GHz, for cellular, broadband RF, feeder and jumper applications.
The connector is rated for at least 500 mating cycles to accommodate repeated assembly, testing and maintenance work.

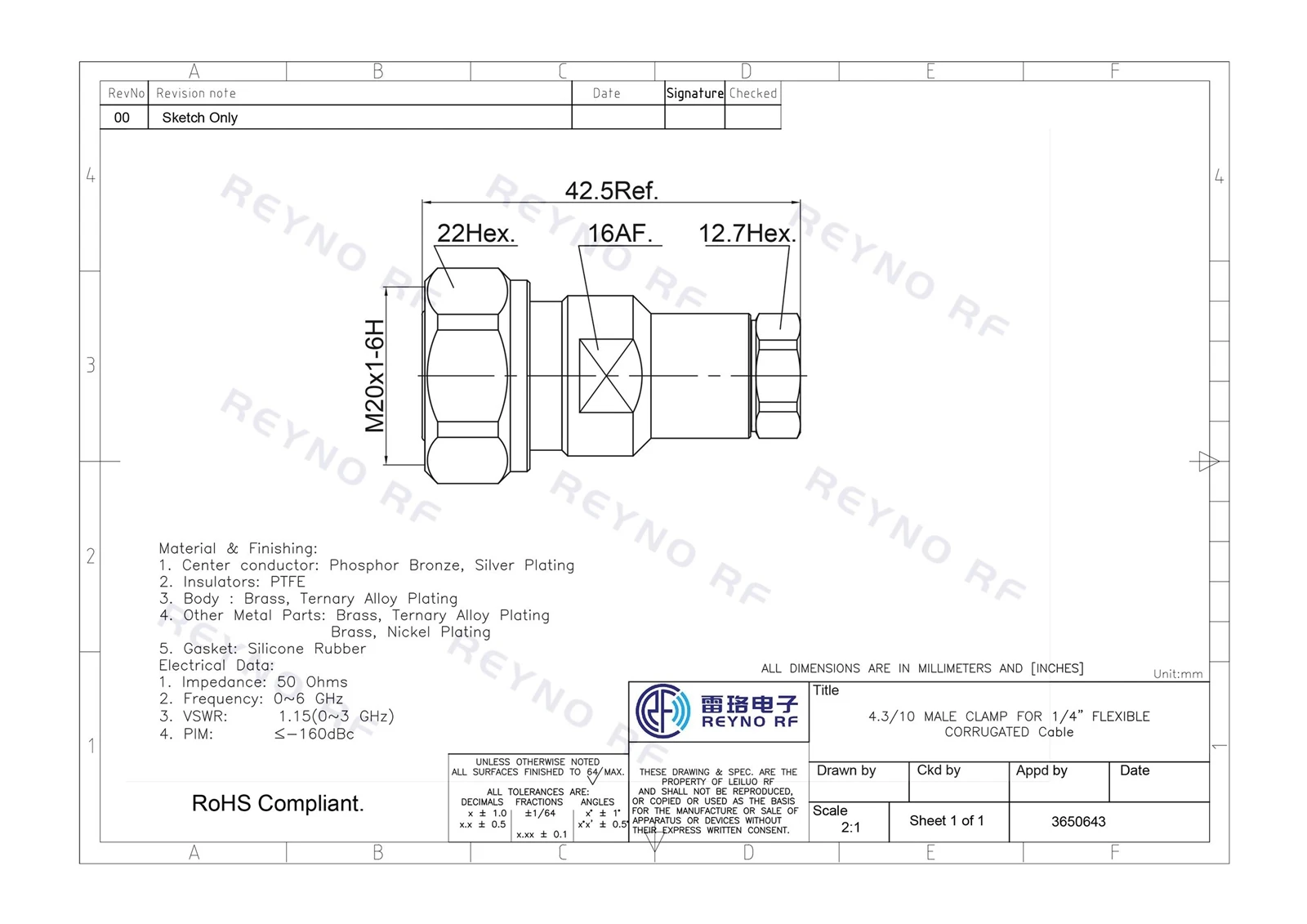

Specifications
|
Connector Type |
4.3-10-J1/4 |
|
Cable Type |
1/4" Flexible Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor: |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 4.3 10 male clamp connectors have been widely used in the following aspects:
4G LTE / 5G small-cell and base station feeders
DAS and indoor distribution systems
Compact RRH / AAU jumper assemblies
Outdoor antenna and microwave feeder links
Telecom infrastructure requiring low-PIM, space-saving connectors
FAQ
How can we arrange a factory visit?
You can contact us by email or WhatsApp to schedule a visit. We will arrange pickup from the airport or train station and a factory tour.
What are cable assemblies
Cable assemblies are pre-assembled cables with connectors attached at one or both ends, ready for direct installation in equipment.
What kind of technical support do you offer
We offer product selection guidance, technical datasheets, installation guidance, troubleshooting and long-term technical consultation.
Do you have professional teams in R&D, production, QC and after-sales
Yes, we have professional R&D, production, quality control and after-sales teams to ensure full-process service.
