Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector 4.3-10 female solder for 3/8”cable 4.3-10-k3/8-hj in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

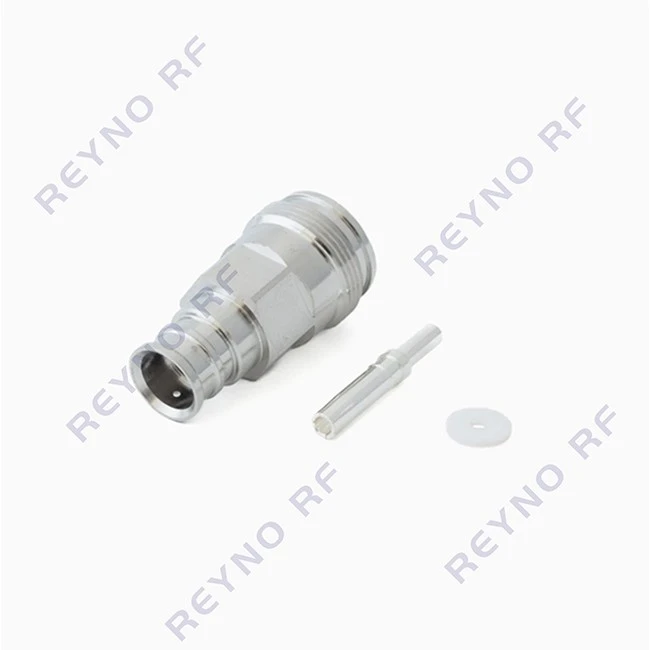

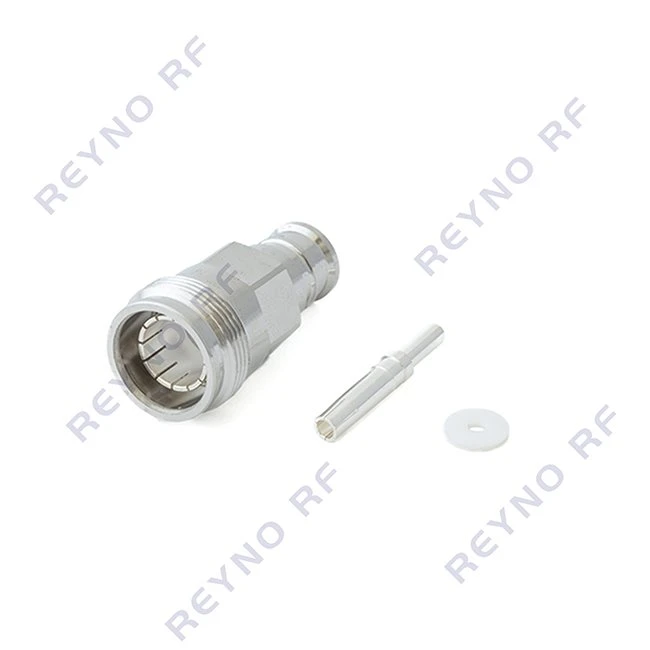

The 4.3-10 female solder connector for 3/8-inch corrugated RF cables is a low-PIM RF connector designed specifically for 5G communication base stations and distributed antenna systems. The industry standard model is often marked as 4.3-10-K-3/8"S. It adopts a soldered termination structure and is fully compatible with 3/8-inch spiral corrugated ultra-flexible RF cables.
Features
The three-interface separation design keeps electrical and mechanical mating surfaces separate. Performance remains stable within the specified torque range. Compared with traditional 7/16 DIN connectors, this design cuts size by roughly 40% and weight by 60%. It fits high-density compact base station installations. The compact body mounts inside a 6.45 cm² footprint for dense cable routing. The 4.3-10 female solder connector maintains transmission and PIM performance under specified mating conditions. This reduces the effect of torque variation during field assembly. The outer housing shields electrical contacts, for outdoor deployment and improved protection against accidental impact. The corrugated outer conductor uses a continuous metal tube construction. It offers heat dissipation and EMI suppression for long-term field service.

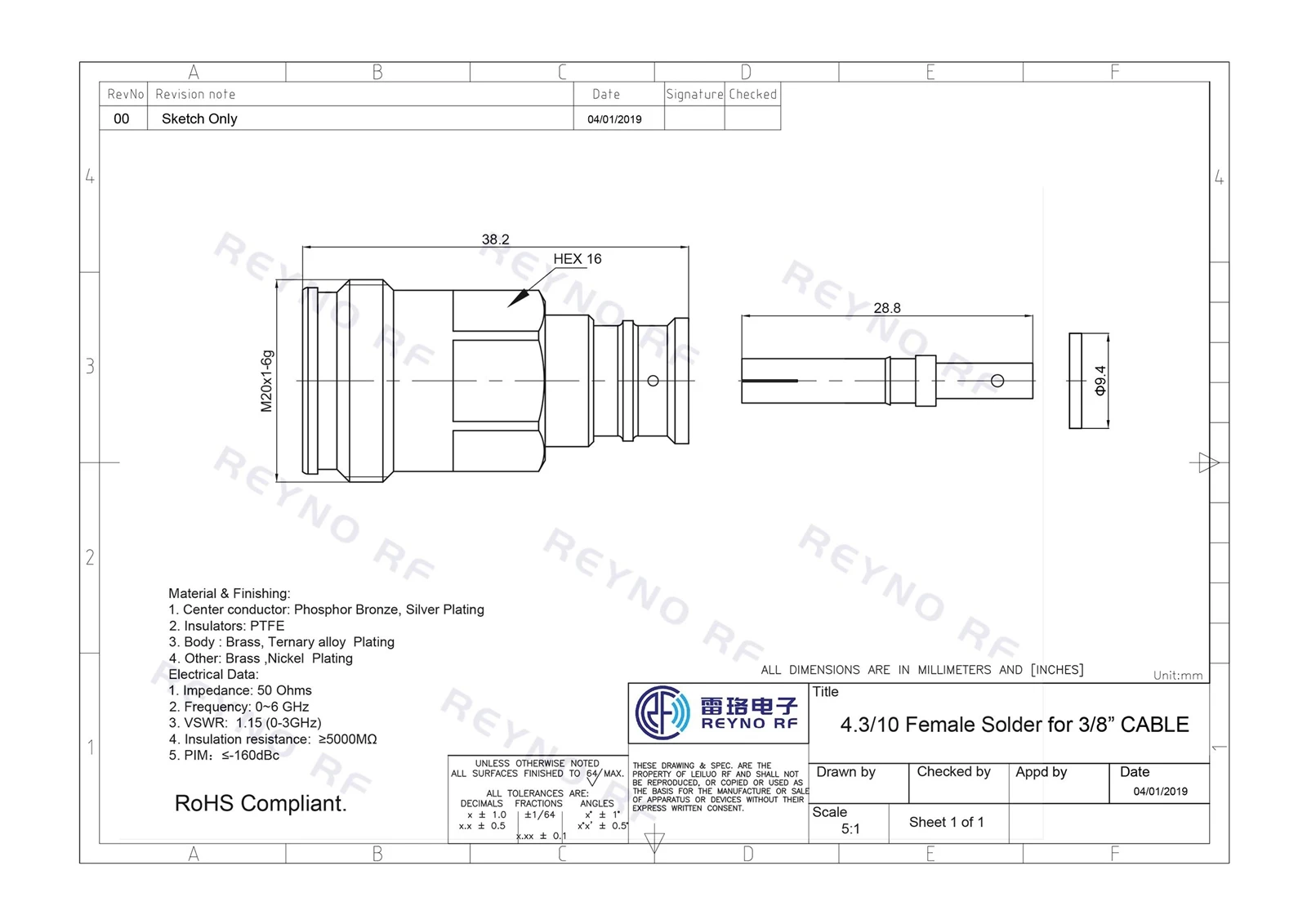

Specifications
|
Connector Type |
4.3-10-K3/8-HJ |
|
Cable Type |
3/8" Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor: |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Parts |
Brass, Nickel Plating |
Applications
This 4.3-10 female solder connector is 40% smaller than conventional 7/16 DIN types, adapting to space-constrained installation environments. It applies to short RF jumpers between 5G base station RRUs and antennas, indoor distributed antenna systems, and RF links for small-cell base stations.
Standard Soldering Process
Pre-treatment Steps
Use a dedicated cable stripper to remove the outer jacket, corrugated outer conductor and PTFE insulation in sequence per connector specifications, exposing the required length of inner conductor. Clean the cable end and connector solder surfaces with alcohol to eliminate grease and metal particles.
Inner Conductor Soldering
Tin the cable inner conductor lightly, then insert it into the inner solder cup of the 4.3-10 female connector. Use a 35 W temperature-controlled soldering iron and apply lead-free solder to form the joint. Solder joints shall be smooth and uniform, free of cold joints or excess solder buildup. Trim surplus solder carefully with a blade to prevent damage to the silver plating on the inner conductor.
Outer Conductor Soldering
Slide the 4.3-10-K3/8-HJ connector body over the cable. Align the 3/8-inch corrugated outer conductor fully against the connector's soldering shoulder. Apply low-temperature solder for a full 360° circumferential solder joint. The solder joint provides electrical continuity between the corrugated outer conductor and connector housing. Clean residual flux once soldering finishes.
Post-processing and Inspection
Clean the entire soldered region with isopropanol to remove solder slag and flux residue. Carry out SWR, continuity and PIM tests. Fit adhesive-lined heat-shrink tubing for sealing and protection after all test results meet the specified requirements.
FAQ
Do you have a quality control team
Yes, we have a dedicated quality control team responsible for incoming inspection, in-process testing and final quality assurance.
What industries do your products serve
Our products serve the telecommunications, industrial automation, new energy, military defense, aerospace and transportation industries.
Can I request to advance the shipment
We will try our best if advance shipment is required. It depends on our current production schedule.
Do you ship to my country
Yes, we can ship to most countries all over the world.
