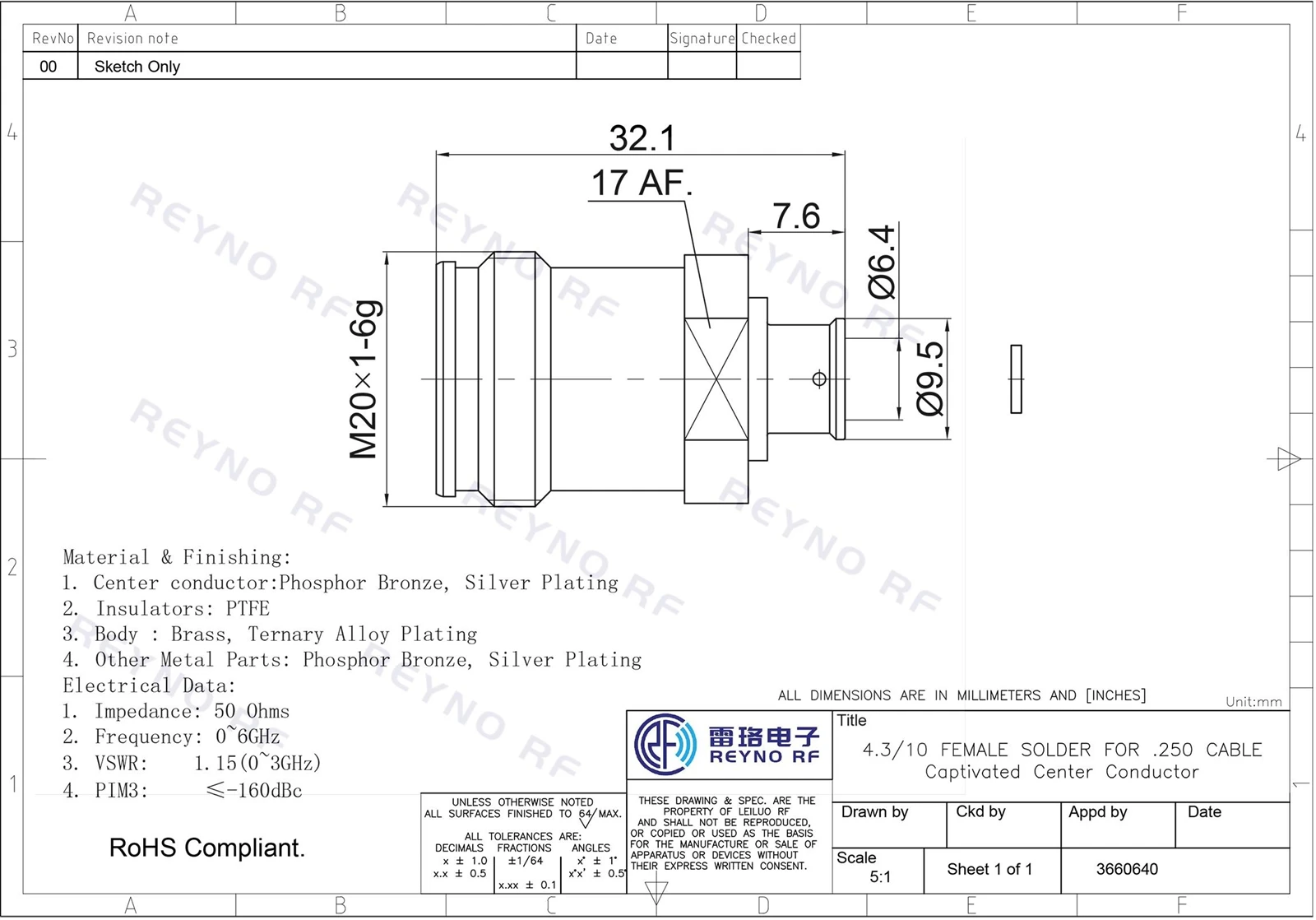

RF Coaxial Connector 4.3-10 FEMALE SOLDER FOR .250 CABLE(Captivated Center Conductor) 4.3-10-K250-MH

Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector 4.3-10 female solder for .250 cable(captivated center conductor) 4.3-10-k250-mh in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.

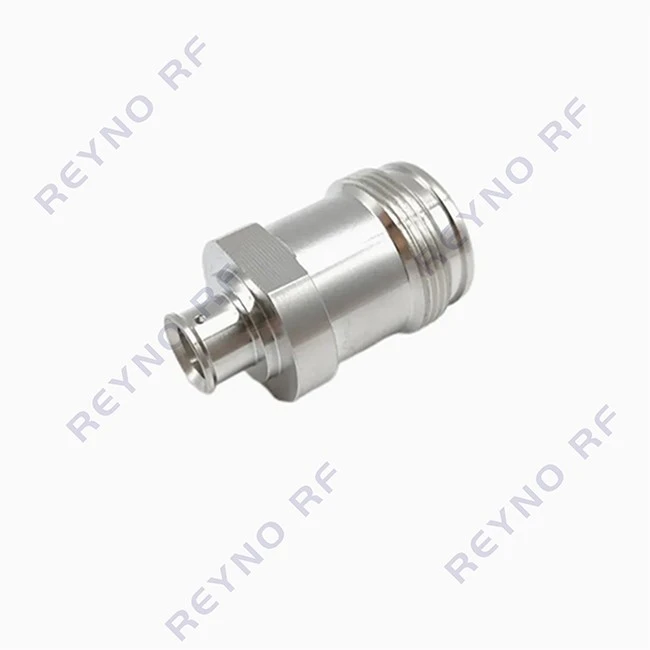

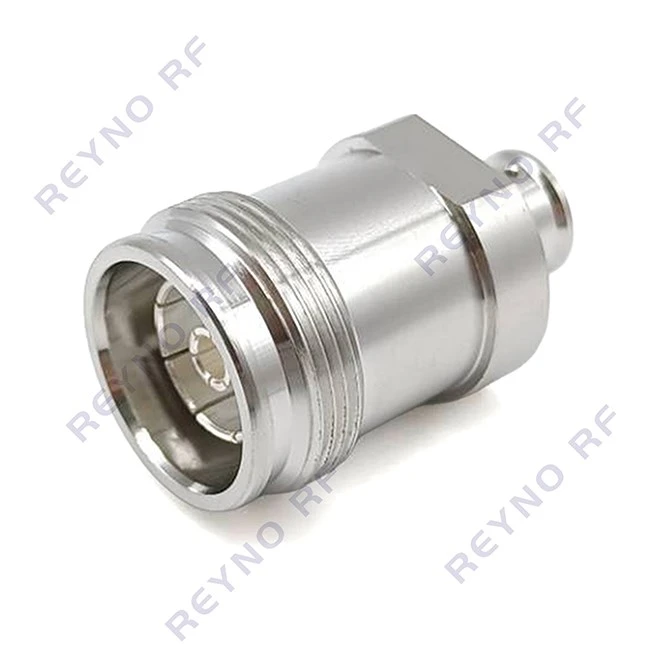

This 50-ohm RF connector has a compact 4.3-10 female interface with captivated center conductor. It is for semi-rigid and flexible coaxial cables with 0.250-inch (6.35 mm) outer diameter. The 4.3-10 coax connector matches cable types such as RG402, PE-SR402FL and equivalent specifications. The connector uses dual solder termination and fixed center contact construction to form permanent electrical connections. It mounts to base station cabinet panels, RRH/AAU enclosures, test jigs and indoor distribution panels for 4.3-10 female port integration.

The 4.3-10 female interface has a compact multi-thread coupling. As an alternative to larger 7/16 DIN connectors for radio equipment, its compact size is suitable for equipment with limited installation space.

This 4.3-10 coax connector uses dual solder termination for inner and outer conductors. It provides a permanent electrical connection with 0.250-inch semi-rigid and flexible coaxial cables. Soldered connections reduce intermittent contact concerns seen with conventional crimp termination.

A mechanically locked female center contact sits within the connector body, with axial retention force rated no less than 27 N (6.1 lbs). This locking design limits contact movement or separation during assembly, mating and servicing.

Optimized for coaxial cables with a 0.250-inch outer diameter, the 4.3-10-K250-MH connector matches RG402, PE-SR402FL, PE-SR402FLJ, PE-SR402AL and equivalent cable types for RF test, measurement and telecom applications.

The 4.3-10 coax connectors have been widely used in the following aspects:

• Wireless Communication Equipment: RF cable interconnections for wireless hardware with matching 4.3-10 ports.
• RF Modules: Compact interlinks between RF modules, subassemblies and external RF interfaces.
• Antenna Systems: Integrated into antenna cable assemblies requiring a 4.3-10 female connection.
• RF Test & Measurement: Deployed in test jigs, measurement setups and custom test gear using solder-terminated .250" cable.
• Communication Cabinets: Fits compact RF units and cabinet assemblies with dense RF routing in confined space.
• Radio Equipment: RF signal links between radio modules, cable assemblies and compatible RF components.
• Custom Coaxial Cable Assemblies: Built to order with defined .250" cable lengths and mixed connector combinations for equipment-specific RF connections.
