Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector 4.3-10 female solder for .250 cable 4.3-10-k250 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

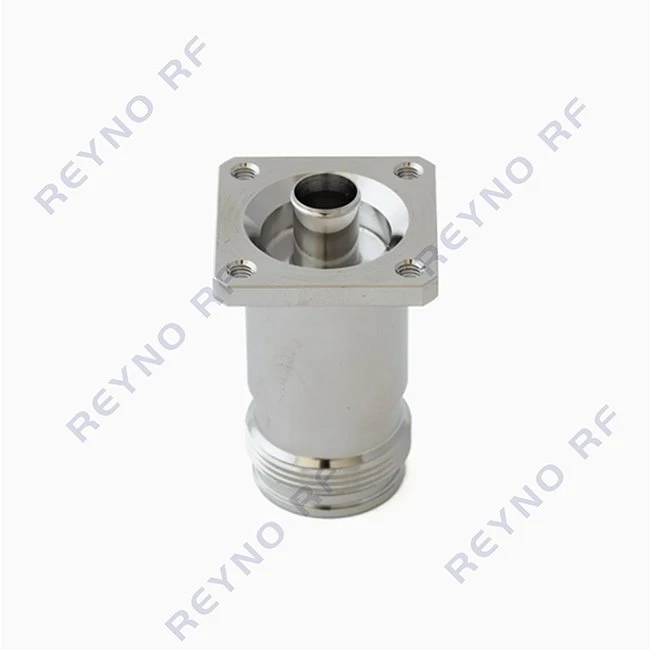

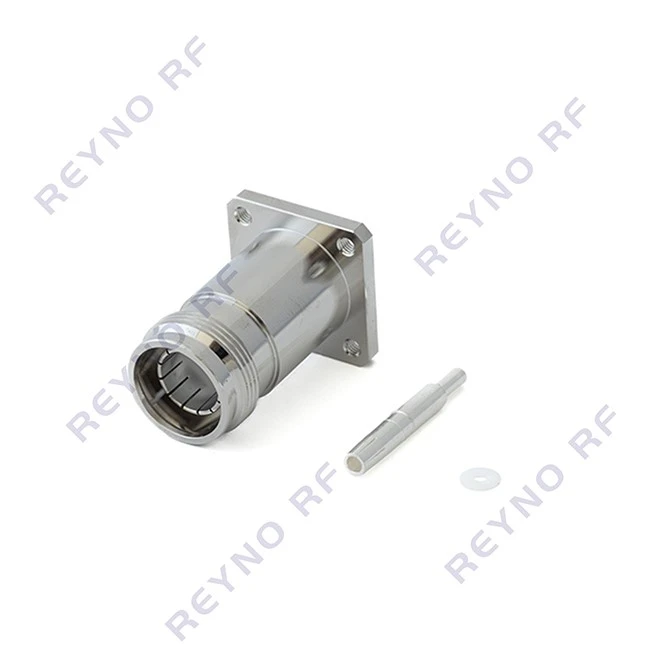

The 4.3-10 female RF coax connector adopts a four-hole flange straight female head structure and directly terminates 250 specification semi-rigid coaxial cable by welding. The industry standard model is often marked as 4.3-10-K-.250", which is specially adapted to RF system scenarios that require high-density installation and low passive intermodulation.
Features
This 4.3-10 female RF coax connector uses solder termination for inner and outer conductors. The construction maintains contact impedance and offers shock resistance. Low PIM design limits torque influence on RF performance and reduces intermodulation interference. The form factor is more compact than traditional 7/16 DIN connectors. It fits high-density wiring inside RF modules and saves internal space. PTFE insulation delivers wideband low-loss characteristics and reduced signal reflection across DC to 6 GHz. This connector is for 0.250-inch semi-rigid coaxial cable. It preserves cable shielding for short patch cords built inside instruments and base station modules.
Connector Design

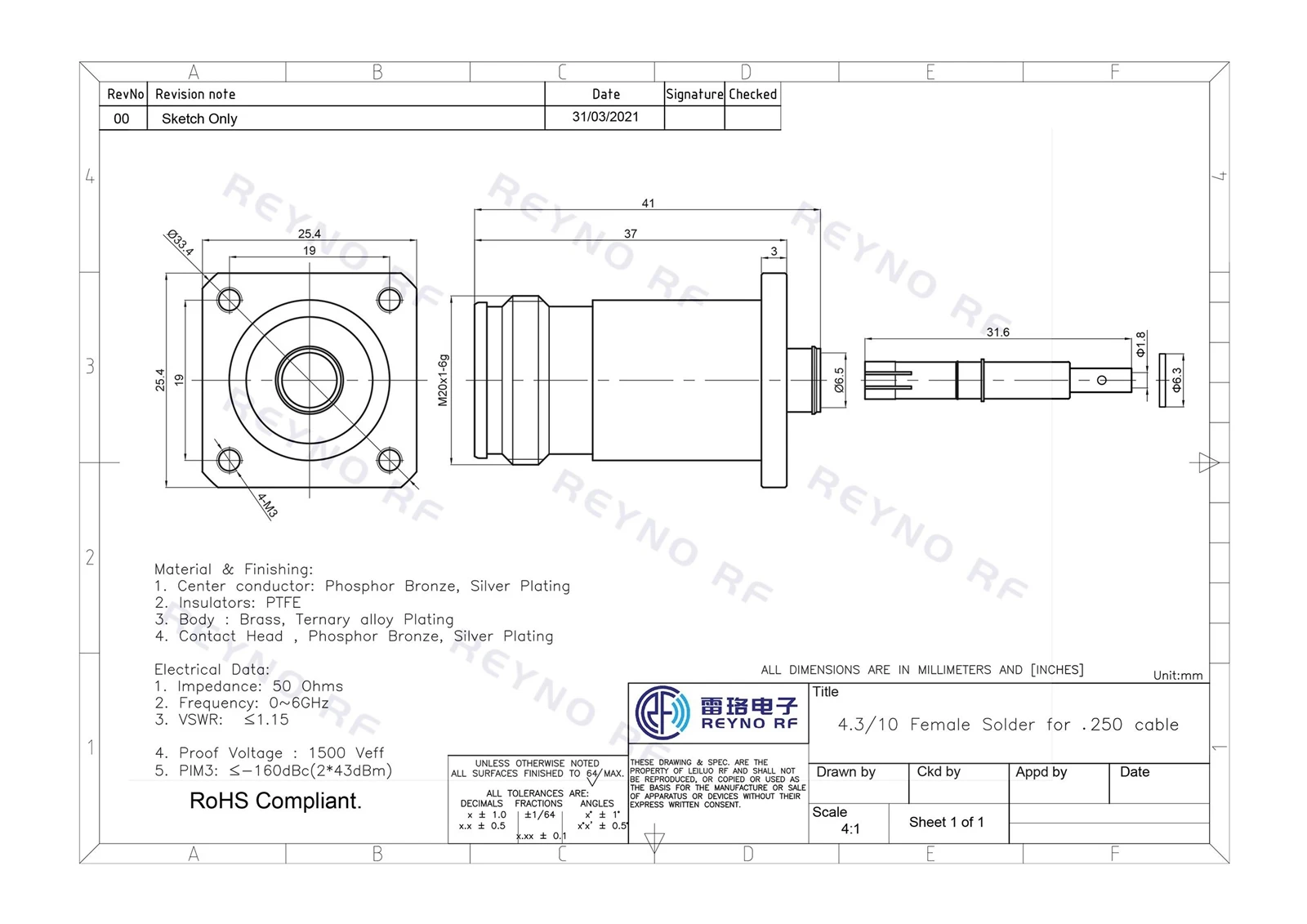

The 4.3-10-K250 connector combines a 4.3-10 female mating interface with a rear solder termination for the .250 cable.
The 4.3-10 interface provides the equipment-side RF connection, while the rear section is prepared for soldering to the cable conductor and corresponding cable components.
Unlike clamp-type connectors designed for larger feeder cables, this solder configuration is intended for applications where a direct soldered cable termination is preferred.
Specifications
|
Connector Type |
4.3-10-K250 |
|
Cable Type |
.250 Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Contact Head |
Phosphor Bronze, Silver Plating |
Applications
This 4.3-10 female RF coax connector is widely used in modern wireless communication systems, including scenarios with high requirements for signal stability such as 4G LTE base stations, 5G infrastructure, small cell base stations, and distributed antenna systems (DAS).
FAQ
How do you control product quality
We have strict quality control in every production procedure, from incoming material inspection to in-process testing and final pre-shipment inspection.
How does order quantity affect the price
Larger order quantities generally result in lower unit prices due to economies of scale in material procurement and production.
Can I customize samples
Yes, we can prepare customized samples according to your drawings, specifications or samples. Custom sample fees may apply.
How long does it take to produce regular models
Regular models generally require about 15 days for production after order confirmation.
