Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector 4.3-10 male clamp for 7/8 corrugated cable 4.3-10-j7/8 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

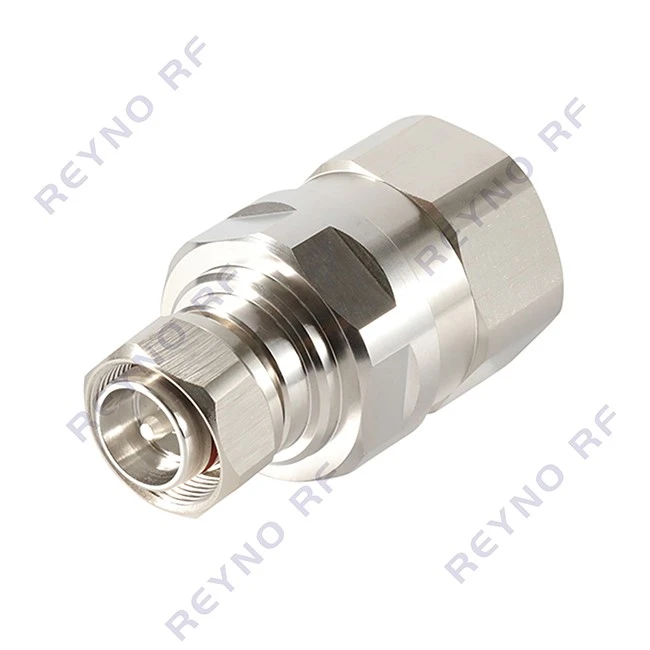

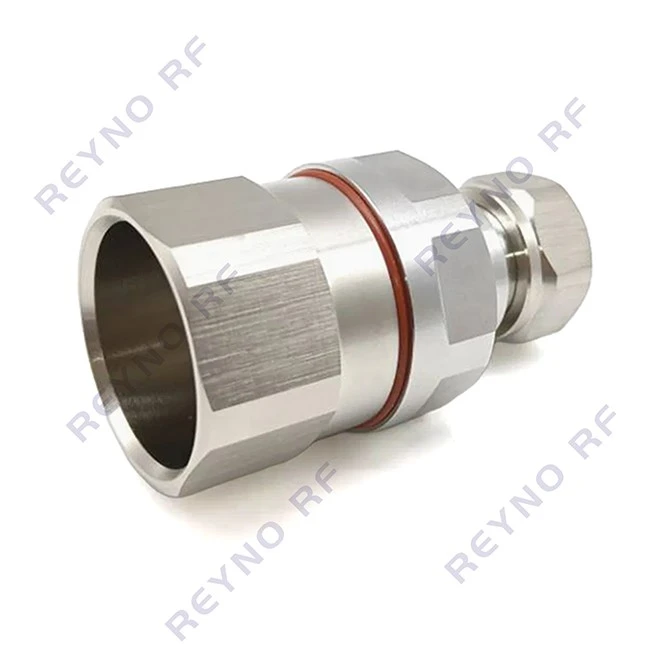

The 4.3-10 RF connector is designed for 7/8 inch corrugated coaxial cable and features a 4.3-10 male interface paired with a clamp-style cable termination. It is used for antenna feeders, mobile communication networks and high-power RF transmission setups. The 7/8 inch corrugated cable is used for larger-scale RF feeder applications. This connector connects the corrugated coaxial cable to compatible 4.3-10 RF equipment. The 4.3-10 male end uses a push-pull coupling mechanism, and the clamp grips the corrugated outer conductor.
Features
Designed for Large Feeder Cable
The 4.3-10 RF connector is configured for 7/8 inch corrugated coaxial cable, making it suitable for larger RF feeder installations.
4.3-10 Male Interface
The compact 4.3-10 male interface provides a modern RF connection option for compatible communication and antenna equipment.
Clamp-Type Termination
The clamp structure provides a practical method for mechanically terminating the corrugated outer conductor of the feeder cable.
Suitable for RF Infrastructure
The 4.3-10 RF connector can be used in base stations, antenna feeder systems, DAS installations and other communication infrastructure.

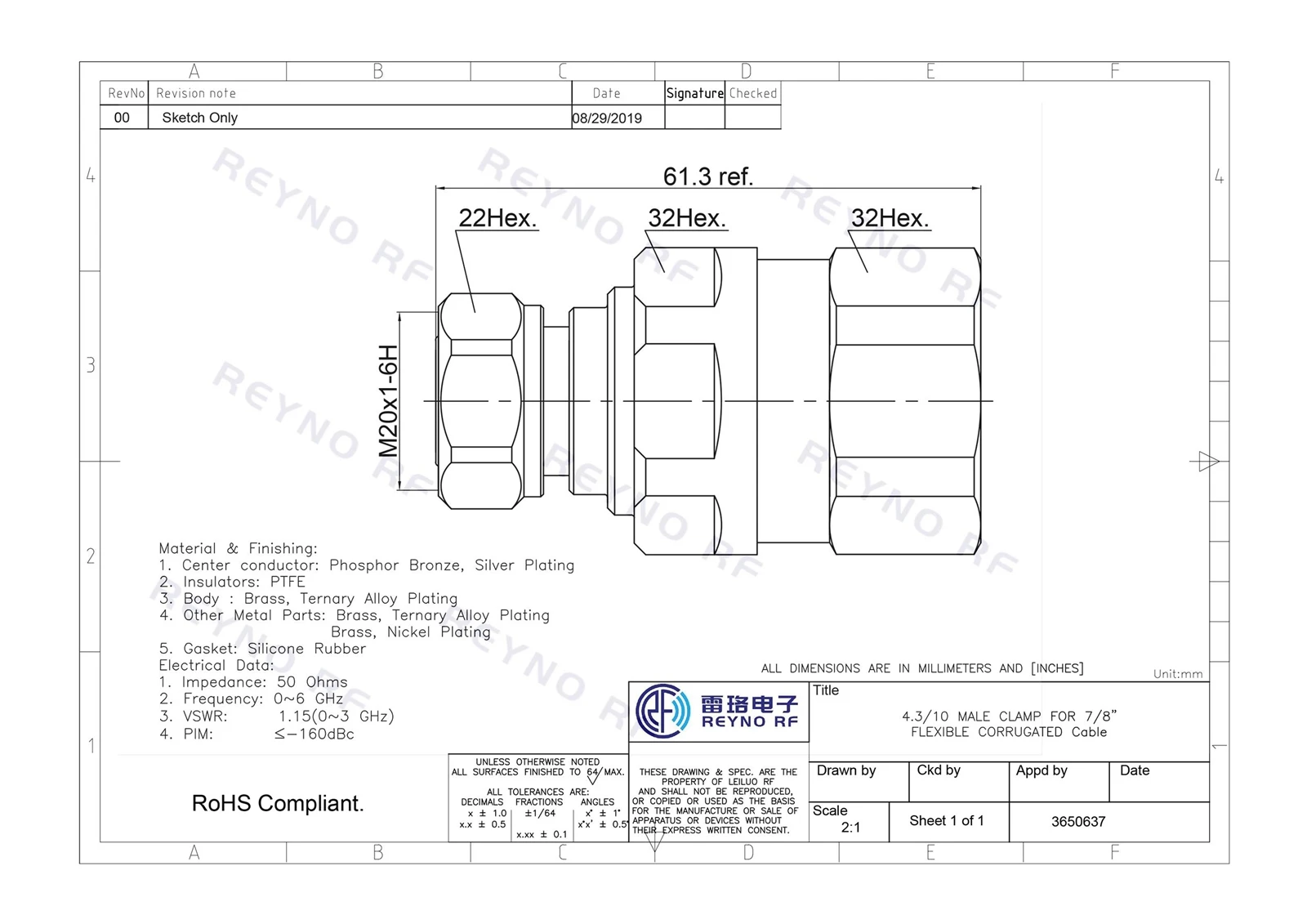

Specifications
|
Connector Type |
4.3-10-J7/8 |
|
Cable Type |
7/8" Flexible Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Installation Considerations
Due to the larger size of 7/8 inch feeder cable, correct cable preparation and connector installation are important.
The cable should be cut cleanly, and the corrugated outer conductor should be prepared according to the connector's specified dimensions. The center conductor must be correctly positioned before the clamp section is secured.
After installation, the finished connection should be inspected for mechanical stability and tested according to the requirements of the RF system.
For outdoor installations, weatherproofing and cable support should be considered as part of the complete feeder system.
FAQ
Do your products meet international standards
Yes, our products meet common international standards and can be adapted to the standards of your country upon request.
Why are your prices lower than some companies?
We are a direct factory without middleman profit. We optimize the production process to control costs while maintaining good quality.
Who pays for the sample freight
Normally the sample freight is covered by the customer. You can use your own courier account or we can arrange shipment and charge the freight.
Can I order below the MOQ
We will check for you. For small orders below MOQ, extra processing cost may be applied.
