Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector sma right angle male solder for rg316 cable sma-c-jw1.5 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

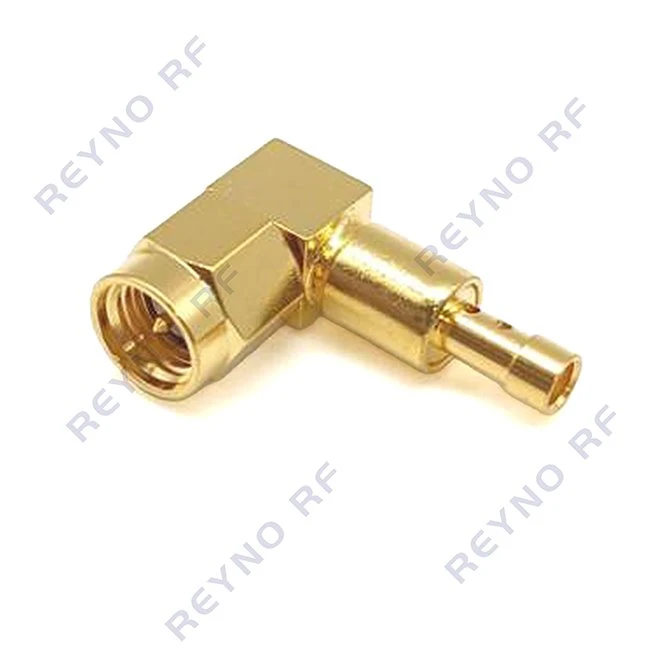

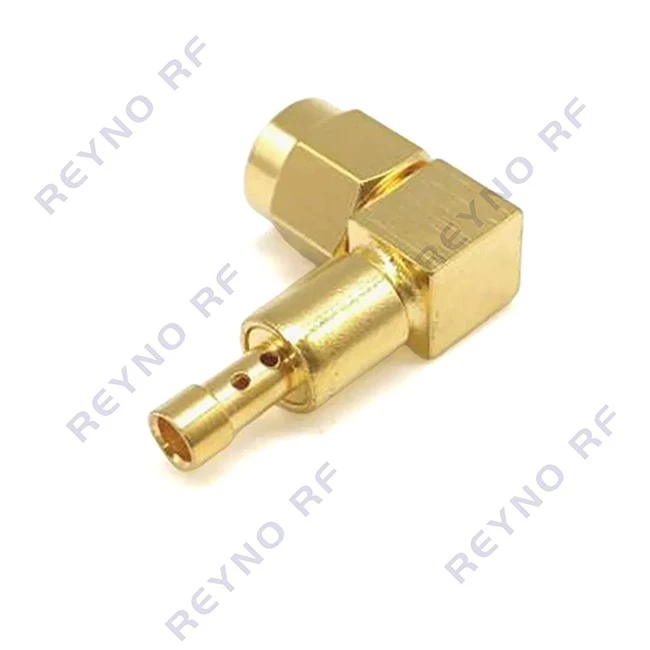

SMA Right Angle Male Solder RF Coaxial Connector for RG316 Cable. This connector is machined to match the dimensions of RG316 coaxial cable for compact RF and microwave applications. It features a right-angle SMA male interface and uses solder-type cable termination.
The right-angle configuration allows the cable to exit perpendicular to the mating interface. This makes the rg316 sma connector suitable for equipment where installation space is limited or where a straight cable connection is not practical.
The SMA-C-JW1.5 connector is used for 50-ohm RG316 coaxial cable assemblies in communication equipment, antennas, test instruments and electronic systems.
Features
- The 90-degree configuration routes the cable parallel to the PCB or chassis, making it suitable for dense electronic assemblies with limited space.
- The cable is attached to the connector by soldering.
- The rg316 sma connector is rated for operation up to 12.4 GHz and is used for RF cable assemblies in communication equipment, antennas, test instruments and electronic systems.

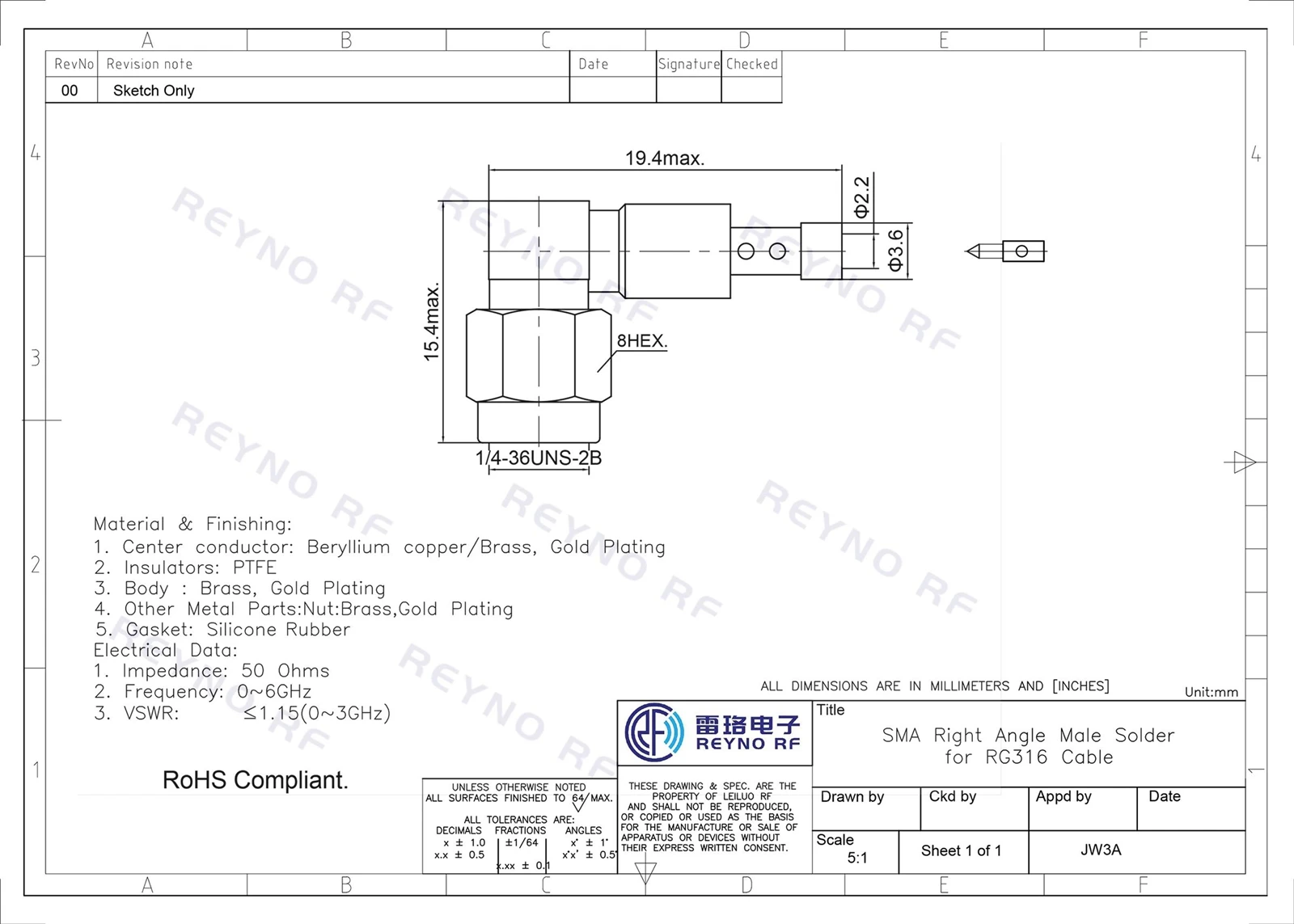

Specifications
|
Cable Type |
SMA-C-JW1.5 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Beryllium copper, Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Gold Plating |
|
Other Metal Components |
Brass, Gold Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
These rg316 sma connectors are used in RF coaxial cable assemblies for wireless communication equipment, antenna systems, GPS equipment, RF test and measurement instruments, microwave equipment, radio communication systems, electronic instruments, industrial RF equipment and compact RF modules. The right-angle configuration routes the cable parallel to the PCB or chassis, making it suitable for dense electronic assemblies with limited space. The cable is attached to the connector by soldering. The connector is rated for operation up to 12.4 GHz.
FAQ
Can You Produce According To The Samples:
Yes, please send us original samples or clear sample pictures with full specifications.
Do you meet our country's standards
Our products meet common international standards.
Do you transport production to our country
Yes, goods will be transported to your designated destination.
Can I get a refund for samples once I place a bulk order
Yes, sample fee can be refunded when you place bulk orders as agreed.
