Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector sma right angle male solder for rg405.086 cable sma-c-jw405.086 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

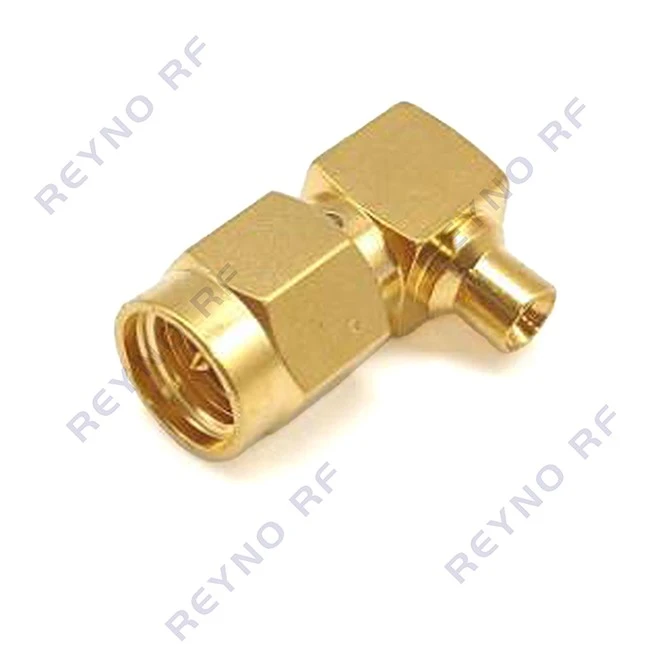

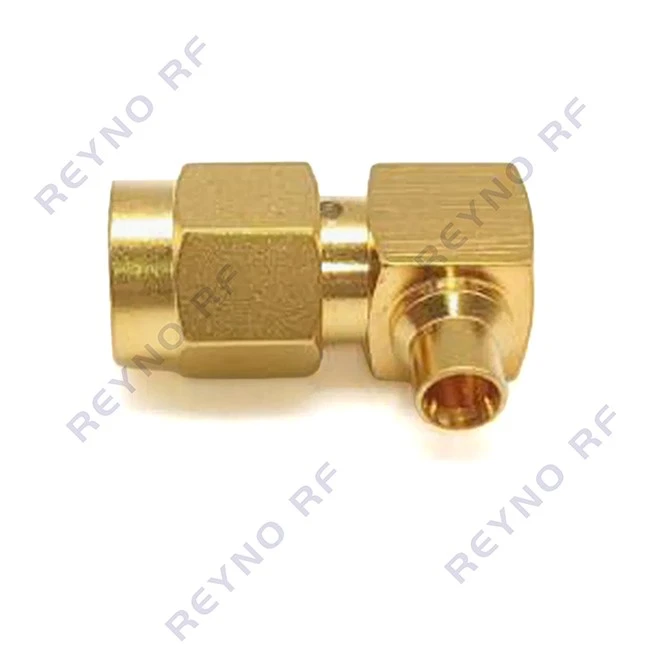

This sma male coax connector is machined to match RG405.086 coaxial cable and is used for small-diameter RF cable assemblies. It features an SMA male interface with a 90-degree cable exit and uses solder termination.
The 90-degree configuration routes the cable perpendicular to the mating interface. This arrangement is suitable for communication modules, RF test equipment and microwave assemblies where a straight connector would require additional clearance.
The connector is used with RG405.086 coaxial cable assemblies. Custom assemblies are available with specified cable lengths, connector orientations and equipment interfaces.
Features
- The 90-degree cable exit routes the cable perpendicular to the mating interface, avoiding interference with onboard components.
- The inner conductor and outer shield are attached by soldering.
- The sma male coax connector uses a PTFE dielectric and is rated for operation up to 18 GHz.
- The center pin is gold-plated.
- The SMA-C-JW405.086 connector is used for RG405.086 ultra-fine semi-flexible cable.

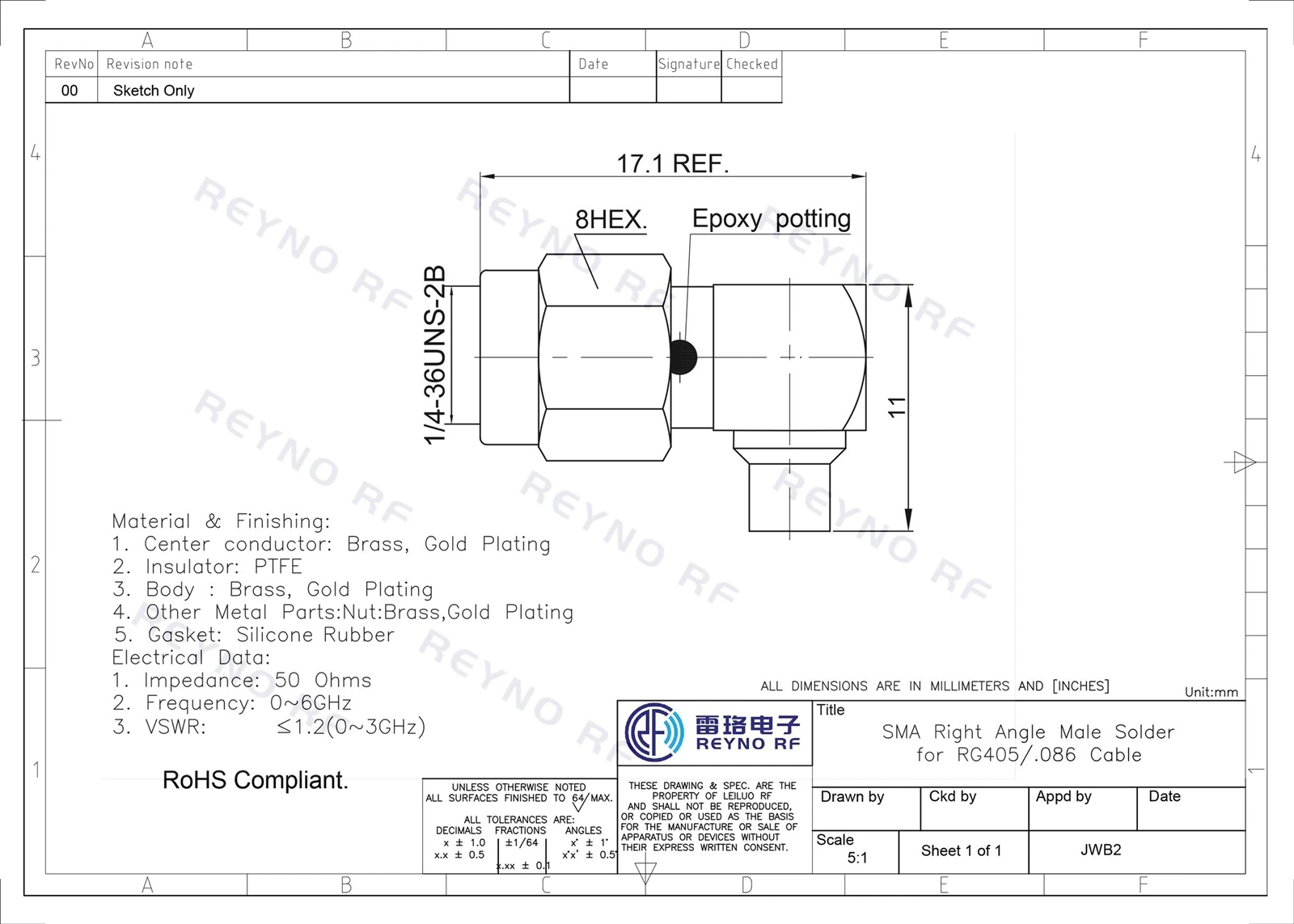

Specifications
|
Cable Type |
SMA-C-JW405.086 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.2(0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Gold Plating |
|
Other Metal Components |
Brass, Gold Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The sma male coax connectors have been widely used in the following aspects:
Aerospace and military electronics (Mil-Aero)
PCB mounting and board-to-board connections
Radar and satellite communication systems
Cellular base stations and microwave radio
Test and measurement equipment (Vector Network Analyzers, Spectrum Analyzers)
Packing
We provide inner and outer packaging options for different products and shipping requirements. Packaging is selected according to product size, quantity and transportation method to provide suitable protection during sea, air and land transportation.
Available packaging options include PP bags, blister cards, laser-printed labels, waterproof export cartons and wooden pallets. Custom packaging can be arranged according to product specifications and customer requirements.
For export orders, packaging can be prepared according to the required carton size, labeling, pallet configuration and shipping method.
