Introduction

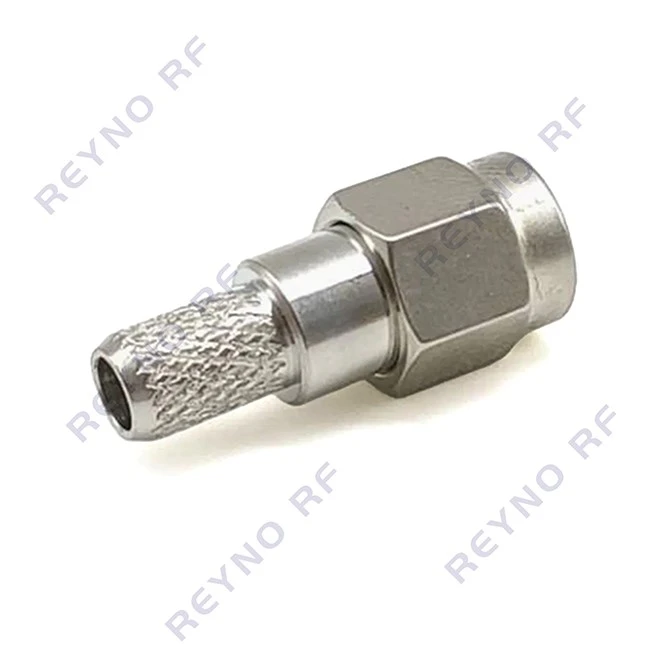

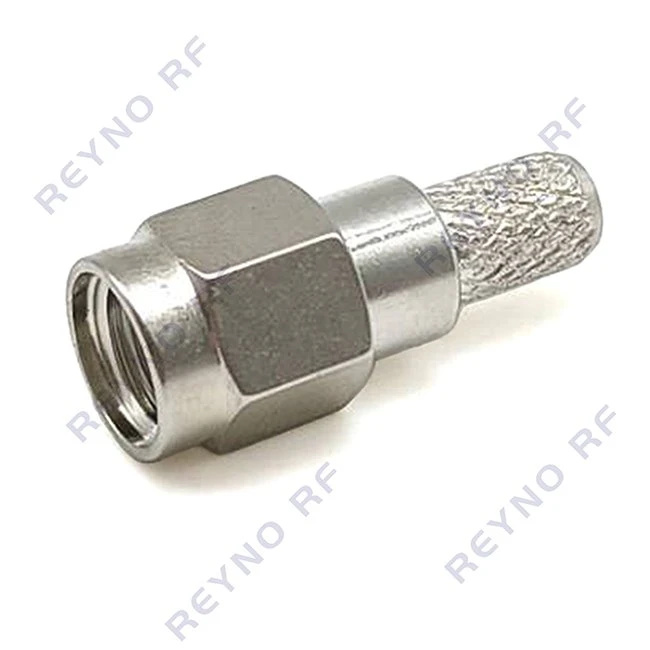

SMA male crimp connector for LMR195. The connector body is brass, nickel plated, The center conductor is brass, gold-plated, and PTFE is commonly used as dielectric insulator. It is specially matched with 50 Ohm low-loss LMR195 coaxial cable, and widely applied in 5G & Wi-Fi antennas, wireless base stations and GPS positioning and more.
Features
This SMA-C-JLMR195 connector is machined to fit LMR195 coaxial cable for standard cable termination. Its compact SMA interface fits RF equipment where installation space is limited.
The cable is terminated by crimping rather than soldering to hold the cable in place during assembly. The threaded coupling mates with the matching SMA interface.

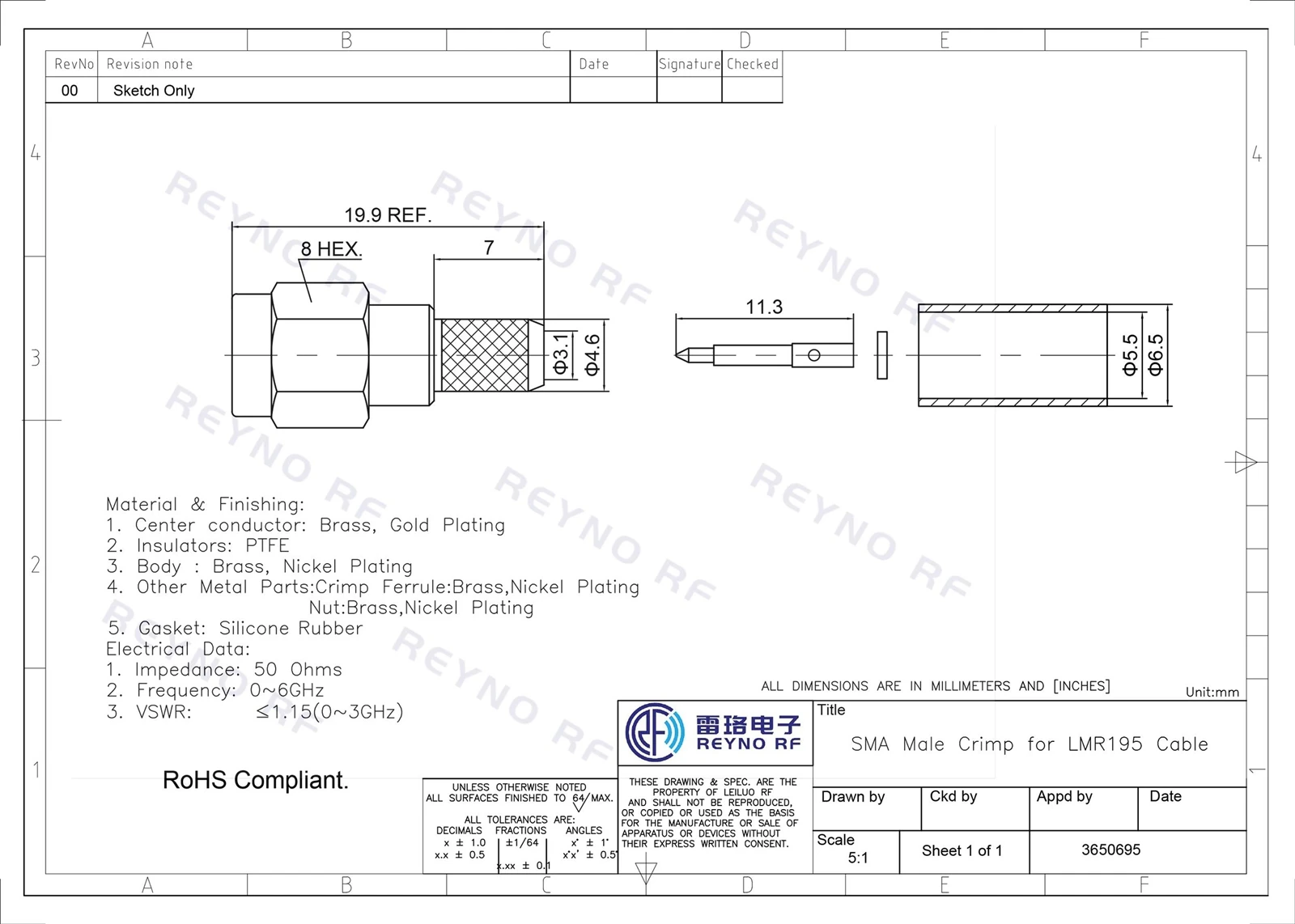

Specifications
|
Connector Type |
SMA-C-JLMR195 |
|
Cable Type |
LMR195 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Nickel Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The sma male crimp connectors have been widely used in the following aspects:
Base station
Antenna systems
5G equipment
Instrumentation
Test and Measurement Instruments
Microwave Radar
Vehicle communication RF links
Why Use This sma male crimp connector?
Threaded coupling
The threaded coupling helps keep the mating connectors in place during installation and normal operation.
Field assembly
Crimp termination does not require on-site soldering. The specified hex crimp die should be used for proper cable termination.
Environmental sealing
Heat-shrink tubing and mastic tape can be added around the connection for additional protection from moisture and dust.
