Introduction

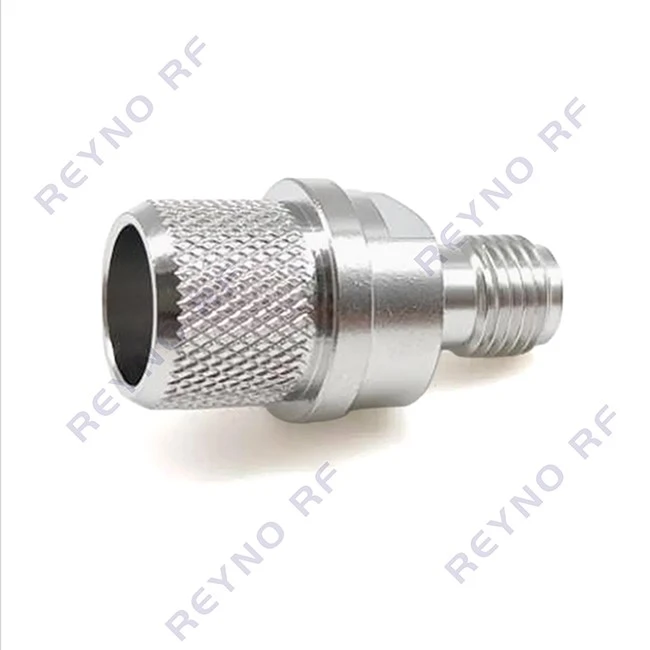

Crimp termination influences performance when assembling low-loss LMR400 cables for RF systems. This sma female coaxial connector mates with LMR400 cable. The crimp mechanism forms a mechanical connection to the cable's outer braid and jacket. It may be applied to outdoor installations and industrial setups exposed to vibration and temperature cycles.
Features

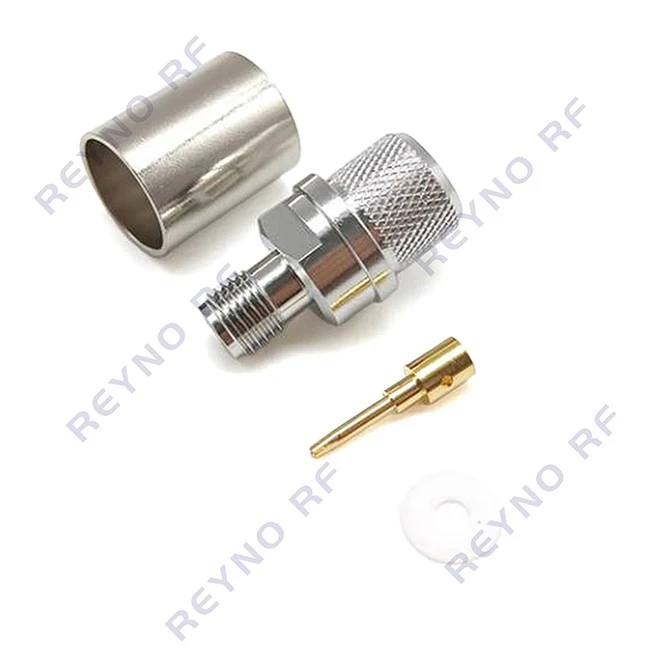

This sma female coaxial connector has a compact SMA female threaded interface. It mates with matching connectors and fits equipment terminals where installation space is limited. The cable is terminated by crimping, so no soldering is required during cable assembly. PTFE dielectric is fitted inside the connector for RF and microwave frequency use. The female contact is fabricated from gold-plated beryllium copper for repeated mating cycles. This unit is designed for LMR400 thick-diameter, low-loss coaxial cable.

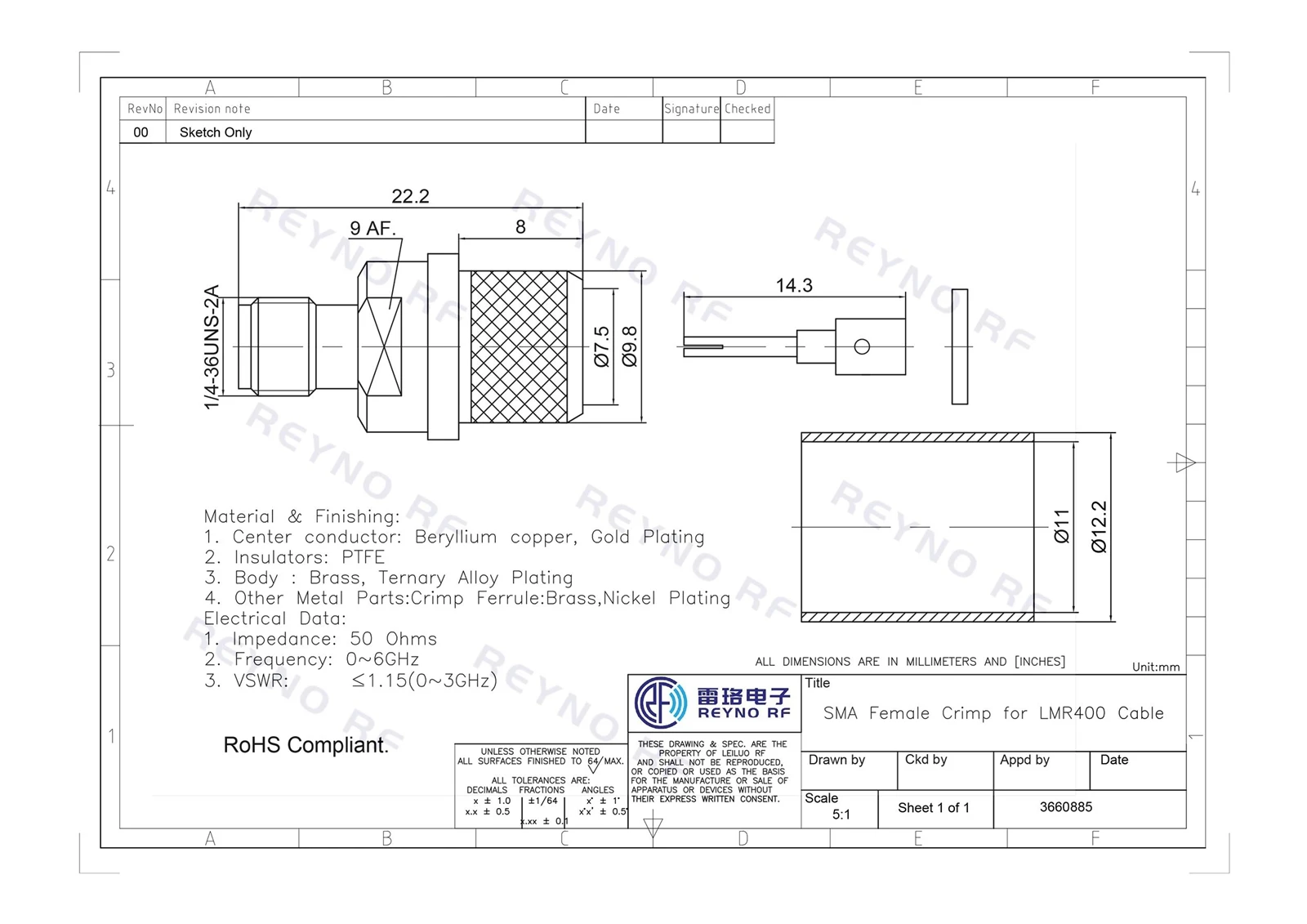

Specifications
|
Connector Type |
SMA-C-KLMR400 |
|
Cable Type |
LMR400 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Beryllium copper, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The sma female coaxial connectors have been widely used in the following aspects:
- Wireless Communication Systems: RF connections between communication equipment, antennas and radio units.
- Cellular Communication Equipment: Cable assemblies for wireless infrastructure and RF equipment.
- Antenna Systems: Connections between antennas, RF transceivers and other antenna-side components.
- Wi-Fi and WLAN Equipment: External antenna and RF signal connections.
- Radio Communication Systems: Radio transceivers and wireless communication devices.
- RF Test and Measurement: Test cables for signal generators, spectrum analyzers and other RF instruments.
- GPS and GNSS Equipment: RF cable connections for positioning and navigation equipment.
- Microwave Equipment: Interconnection between RF modules, amplifiers, filters and related components.
- Industrial Wireless Systems: Wireless monitoring, control and data transmission equipment.
- RF Modules: Cable interface for RF modules and electronic assemblies.
- Antenna Feed Assemblies: Equipment-to-antenna RF cable connections.
- OEM RF Cable Assemblies: Customized cable lengths and connector combinations.
