Introduction

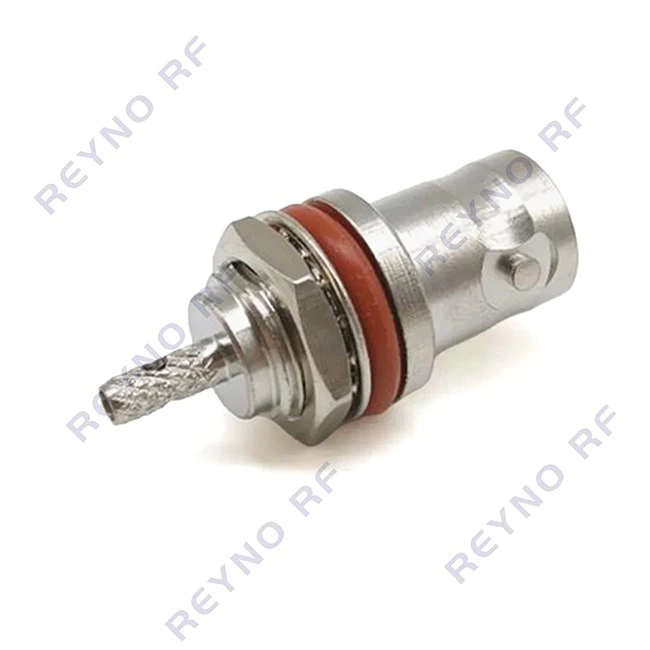

This BNC female crimp coaxial connector works with RG316 cable for custom coaxial assemblies. The rg316 bnc connector has a standard BNC female port and crimp-style termination, usable for RF hardware, communication systems, test instruments and electronic assembly projects.
RG316 is thin, low-profile coaxial cable used for installations needing flexible routing and limited space. This connector matches RG316 cable dimensions and forms interconnections with compatible BNC male plugs.
The BNC bayonet coupling enables tool-free mating cycles. It differs from threaded RF connectors which require repeated turning during connection.
Features

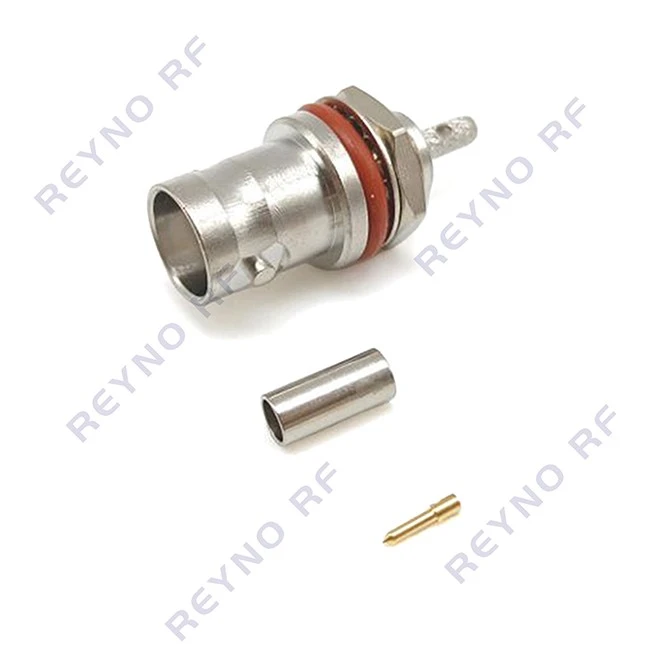

This BNC-C-KRG316 connector works with small-diameter RG316 coaxial cable for compact, lightweight RF cable assemblies in installations with limited space. It uses standard BNC bayonet coupling to mate with compatible BNC male connectors. The rg316 bnc connector uses crimp termination. Assembly follows defined cable strip dimensions and matched crimp tooling for repeatable cable termination. Cable lengths and connector combinations can be adjusted for custom RF assemblies. It can be used for prototype development, equipment replacement cables and high-volume OEM production for industrial and commercial projects.

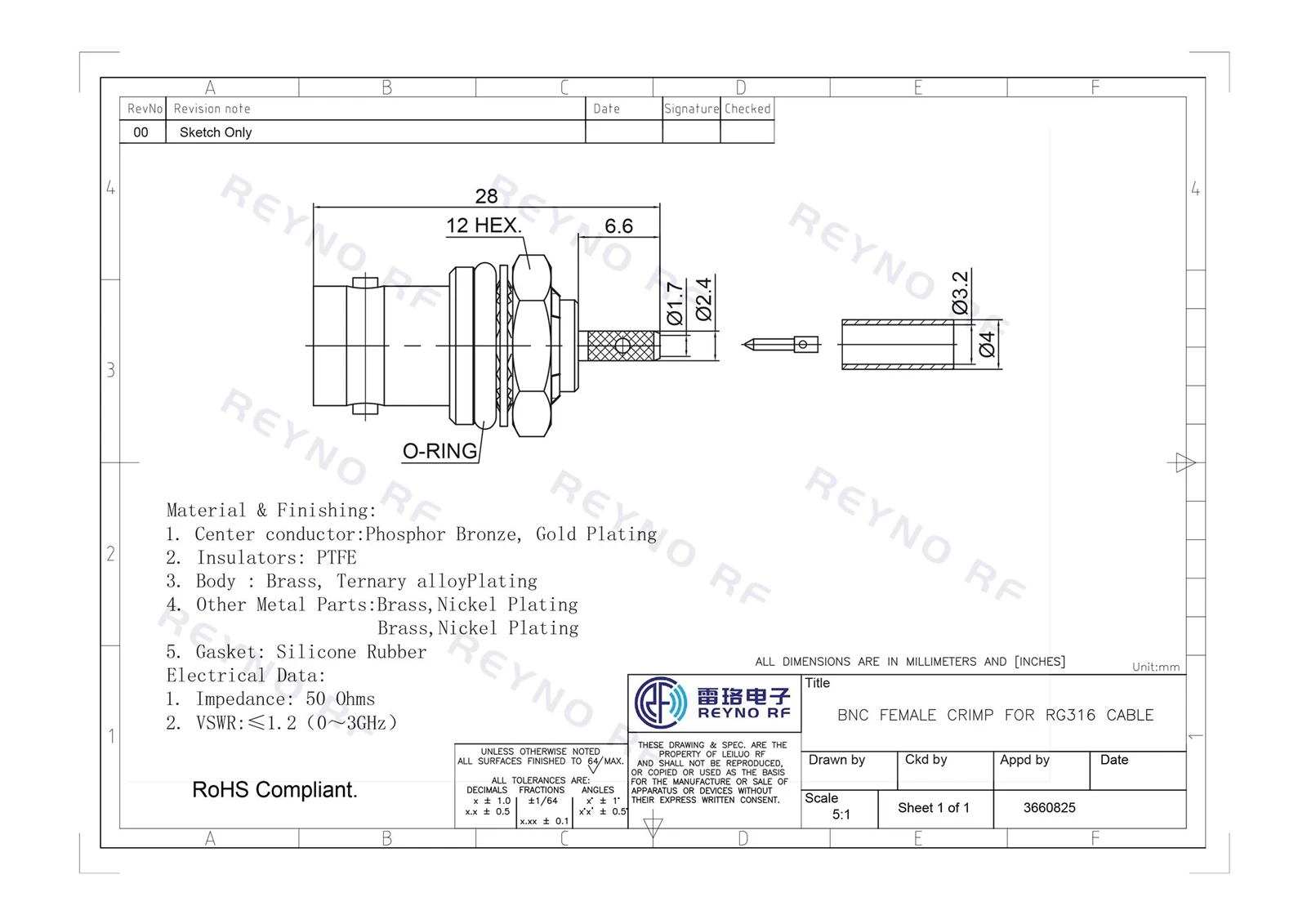

Specifications
|
Connector Type |
BNC-C-KRG316 |
|
Cable Type |
RG316 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.2 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
This BNC crimp connector works with RG316 cable. The rg316 bnc connector is used for test and measurement setups, connecting signal sources, spectrum analyzers, test fixtures and other BNC-fitted instruments. The connector forms RF interconnections for radio and wireless communication hardware. Assembled cable assemblies serve laboratory RF connections where installation space is limited. The connector can be integrated into custom RF module assemblies to create signal connections between internal coaxial wiring and external devices. It applies to antenna cable assemblies, forming BNC interconnections between RF hardware and small-diameter coaxial lines. The connector is used with industrial electronic hardware, monitoring devices and control units. Finished BNC-RG316 cable assemblies can be used as replacement cables, service leads and temporary test connections for RF equipment operation and on-site troubleshooting.
