Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector bnc male crimp for rg59 cable 75ω bnc-c-jrg59 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

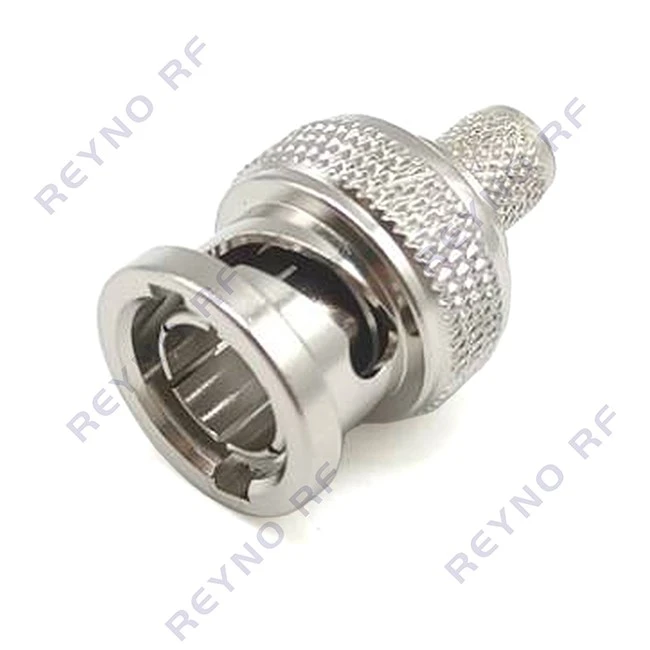

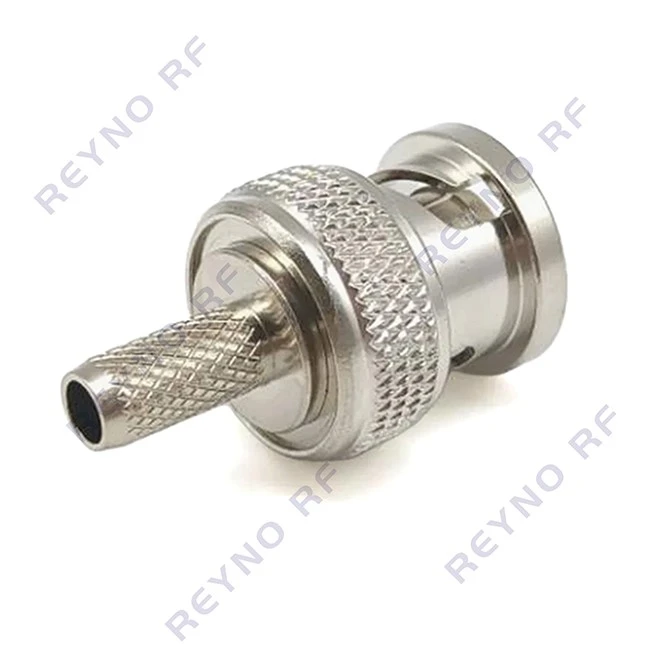

This 75 Ohm BNC male crimp coaxial connector is designed for RG59 cable termination.The rg59 bnc crimp connectors are used in video monitoring, broadcasting and conventional signal transmission systems. The BNC-C-JRG59 connector has a standard BNC male interface and uses crimp-style cable termination for 75Ω coaxial wiring.
RG59 coaxial cable is commonly used for video and signal transmission. This 75Ω BNC connector joins RG59 cables with surveillance cameras, display monitors, professional video devices, broadcast equipment and signal distribution systems.
Features
This rg59 bnc crimp connectors is built as a BNC male type and designed for RG59 75Ω coaxial cable. Cable termination is completed by crimping. It has 75-ohm impedance and bayonet coupling for mating.
The unit works for video and RF signal transmission. It fits RG59 cable assemblies and supports connections at both equipment and cable ends.

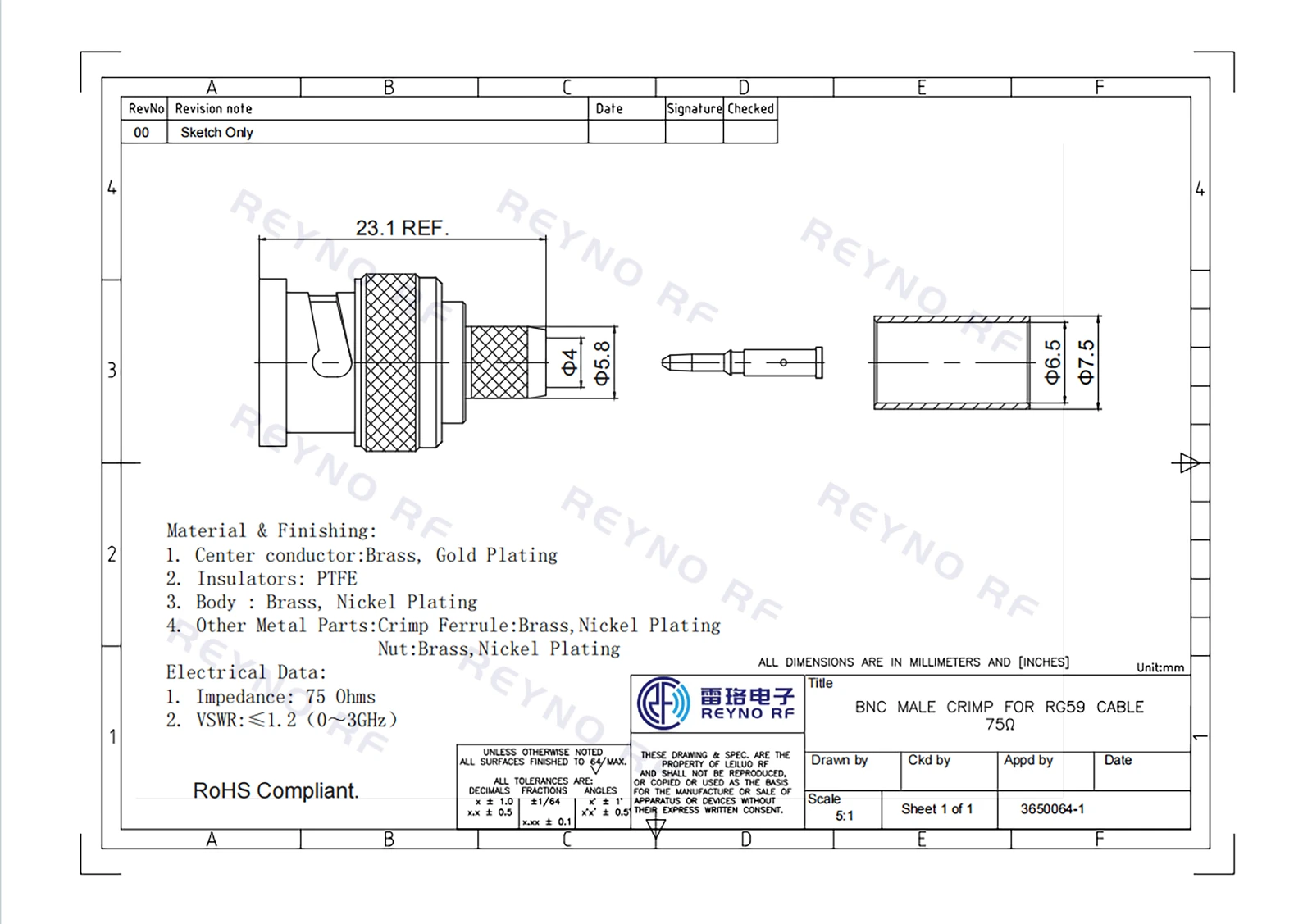

Specifications
|
Connector Type |
BNC-C-JRG59 |
|
Cable Type |
RG59 |
|
Impedance (Ohms) |
75 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.2 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Nickel Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The rg59 bnc crimp connectors have been widely used in the following aspects:
CCTV and Video Surveillance
Terminates RG59 cable for connections between cameras, DVRs and related video equipment.
Broadcast Video Equipment
Cable assemblies for professional video equipment, signal distribution equipment and broadcast-related systems.
Analog Video Systems
Analog video signal transmission and equipment interconnection.
Video Monitoring Systems
Connections between monitors, video processors, recorders and other 75Ω video equipment.
Cable TV and Signal Distribution
Coaxial cable assemblies for 75Ω signal distribution applications.
Security and Building Systems
Video connections in security monitoring installations and structured coaxial cabling systems.
Test and Service Cables
Test, maintenance and equipment connection cables where a 75Ω BNC interface is required.
FAQ
Are samples free
Normally sample cost and freight need to be covered by customers. We can refund sample fees when you place bulk orders.
What is the MOQ for regular connectors
The MOQ for regular connectors is 300 PCS.
What shipping methods can I choose
You can choose sea freight, air freight or express courier according to your timeline and budget.
Do you accept T/T payment
Yes, T/T is one of our commonly accepted payment methods.
