Introduction

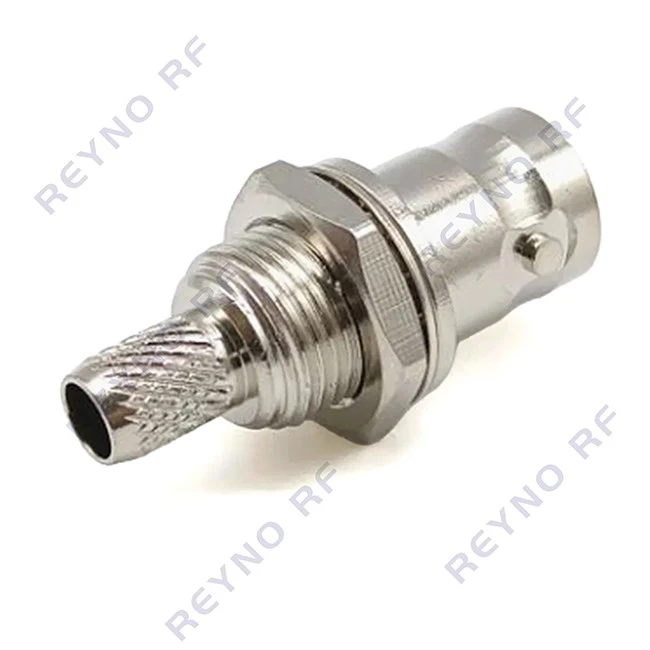

This bnc female bulkhead connector works with RG316 coaxial cable for panel mount RF connections. It includes a BNC female port, bulkhead mounting body and crimp-style cable termination. The connector routes RF signals through equipment panels, enclosures and fixed mounting plates.
The bulkhead body fastens onto equipment panels. RG316 cable is crimped and terminated at the rear side. The external BNC port provides mating access between external RF hardware and internal circuitry.
This compact connector terminates RG316 cable for standard panel mounting. It can be fitted to RF communication hardware, test instruments, electronic enclosures, antenna transmission systems and custom RF assemblies.
Features
Panel Mounting

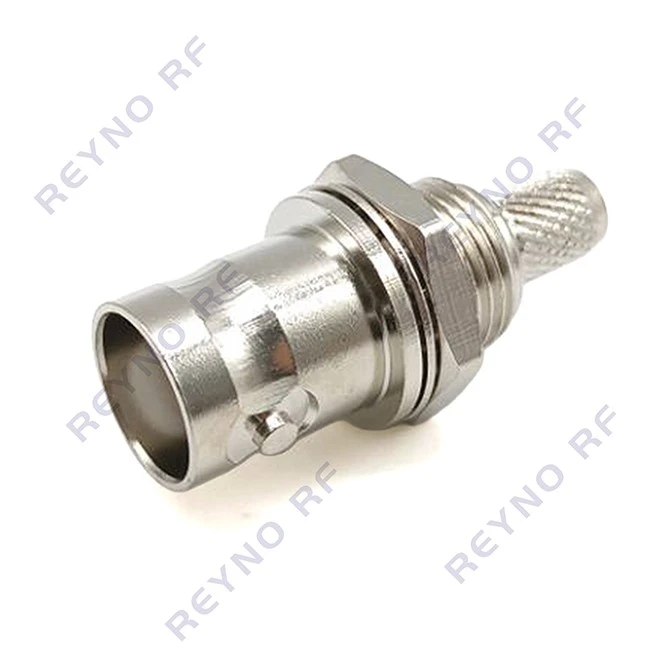

The BNC-C-KYB3 connector uses a bulkhead flange mounting structure. It is fixed on equipment panels via a rear lock nut or front mounting screws.
Crimp Termination
The crimp ferrule is for RG316 coaxial cable with an outer diameter of 2.5mm to 2.8mm. It clamps the cable's outer sheath and braided shielding layer.
Environmental Sealing
Bulkhead-type versions are equipped with an O-ring or sealing gasket between the flange and the panel surface.
Bayonet Connection
The bnc female bulkhead connector uses a standard BNC bayonet locking structure.
50Ω Impedance
The connector is designed for 50Ω characteristic impedance. The internal dimensions are for RG316 cable.

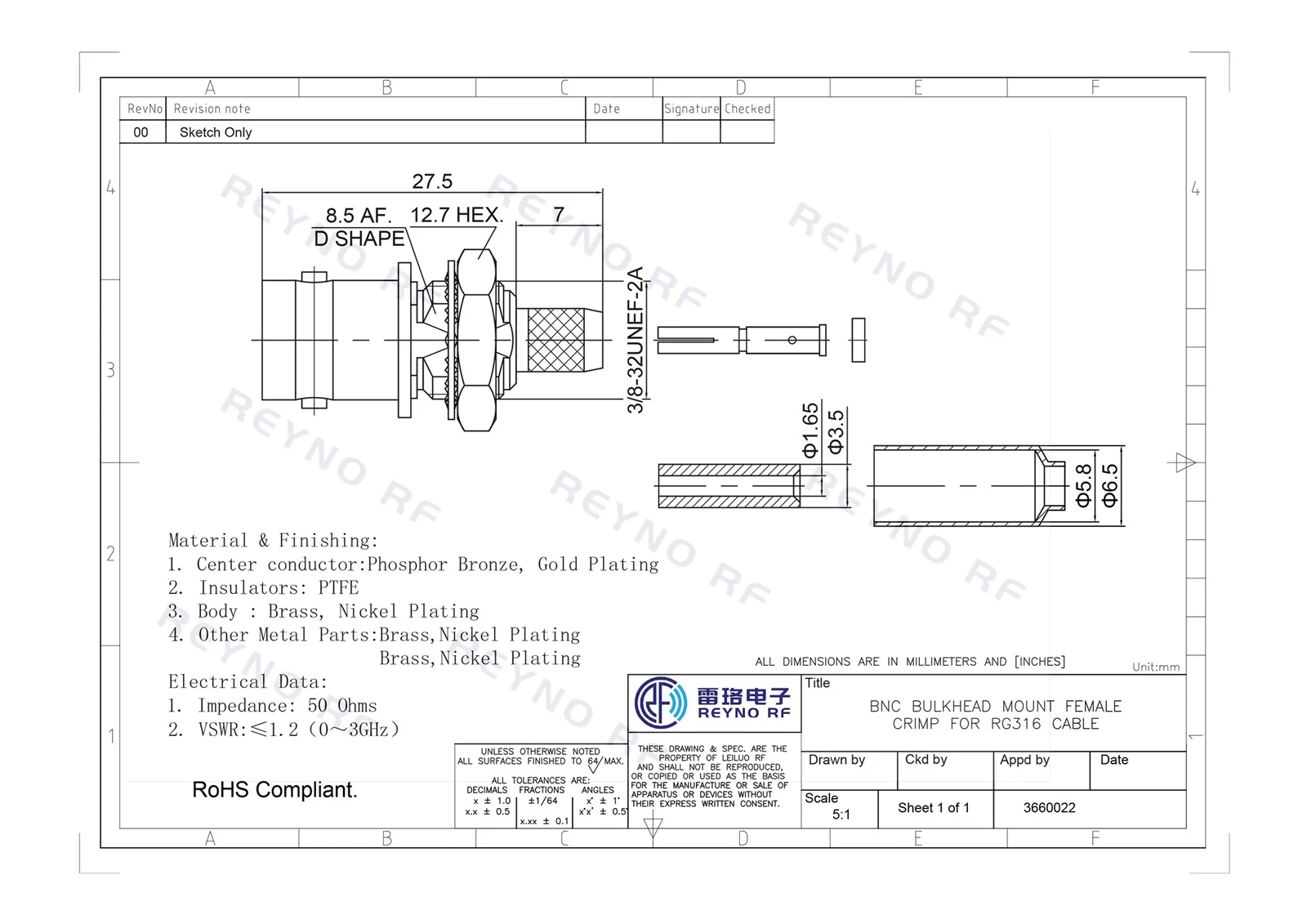

Specifications
|
Connector Type |
BNC-C-KYB3 |
|
Cable Type |
RG316 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.2 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Nickel Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The bnc female bulkhead connectors have been widely used in the following aspects:
Outdoor Enclosures & NEMA Boxes
The connector serves as an RF access port for externally installed antennas and sensors.
Industrial Control Panels
The bulkhead mounting design allows cables to pass through metal equipment enclosures for telemetry modules, PLC systems and industrial sensors.
Communication Equipment
The connector provides an interface for external antenna access on communication base stations, signal repeaters and network routers.
Test & Measurement Fixtures
The connector provides fixed BNC ports for equipment front panels and rack-mounted systems.
Amateur Radio & Ham Setups
The connector is used for custom antenna tuners and transceiver housing assemblies.
Packing
Custom inner and outer packaging solutions are offered to cater to diverse client and market demands. Besides elevating corporate identity and boosting your brand value, custom packaging keeps products intact throughout long-distance sea, air and land transit. It effectively prevents product breakage and quantity shortage caused by rough transportation. Available packaging options include PP bags, blister cards, laser printed labels, waterproof export cartons, wooden pallets and more.
FAQ
What is the MOQ for adapters
The MOQ for adapters is 100 PCS.
Do you ship by sea
Yes, we can arrange sea freight for large-volume orders, which is cost-effective for bulk shipments.
Do you accept L/C payment
Yes, we accept L/C payment for large orders. The specific terms can be discussed.
How can I purchase your products
Send us your requirements by email or WhatsApp. We make a quotation, confirm details, and then you place the order.
