In tight enclosures and dense rack installations, a straight connector often forces an awkward cable bend that can compromise signal integrity over time. This bnc male connector rg58 is engineered to solve that exact problem for RG58 cabling.
By providing a clean 90-degree exit, it allows the cable to route parallel to the panel or board, saving critical space and reducing mechanical strain on the connection point. The crimp termination ensures a gas-tight, vibration-resistant bond with the RG58 cable, making it a reliable choice for both permanent installations and test setups where space is at a premium.
Features

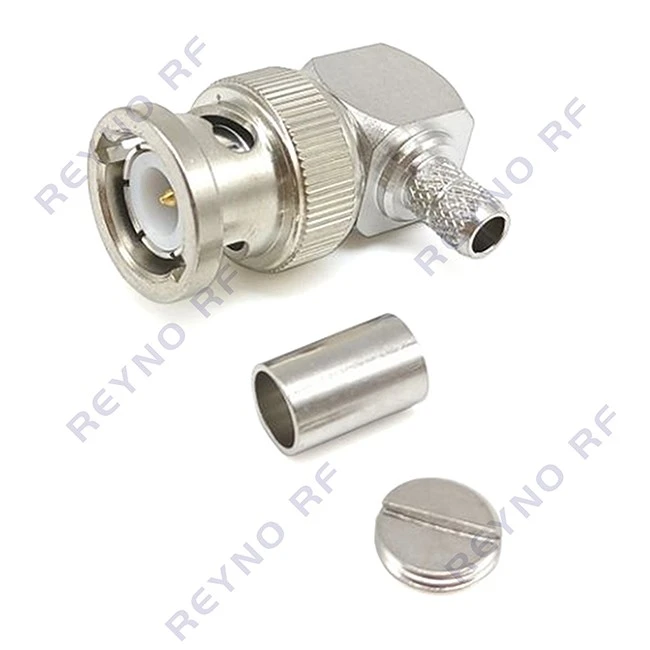

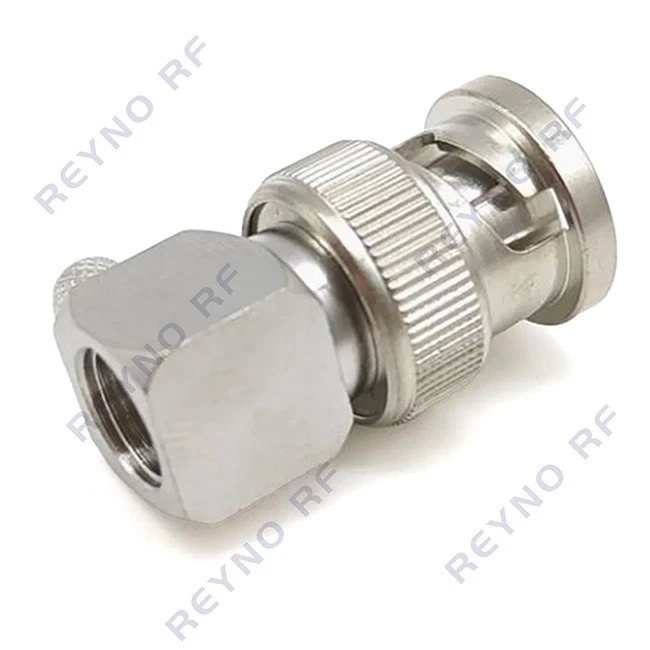

90° Right-Angle Body
The right-angle body allows for compact routing in equipment racks, behind wall-mounted displays, or in portable test kits.
Crimp Termination
The crimp ferrule is for RG58 cable (approx. 5.0mm OD). It grips the cable's outer jacket and braid.
Bayonet Interface
The bnc male connector rg58 uses a standard BNC bayonet locking mechanism.
50Ω Impedance
The BNC-C-JWRG58 connector is designed for 50Ω impedance. The internal geometry is machined for RG58 cable.
Construction
The connector is constructed from brass with nickel or gold plating. The center contact is gold-plated.
Specifications
|
Connector Type |
BNC-C-JWRG58 |
|
Cable Type |
RG58 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.35 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating,Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
- Typical applications include camera cable termination for CCTV and security systems. The connector mounts flat against walls or junction boxes for tidy cable routing.
- The bnc male connector rg58 can form custom test leads and pigtail assemblies for oscilloscopes, signal generators and spectrum analyzers on workbenches with limited space.
- For radio and communication hardware, this right-angle connector joins mobile radios, repeaters and base station panels or bulkheads, fitting compact enclosures.
- It connects telemetry modules, sensors and industrial control hardware for industrial instrumentation in installations with limited space and quick mating requirements.
- The connector is used for custom antenna jumpers and patch cables in portable amateur radio setups.
