Introduction

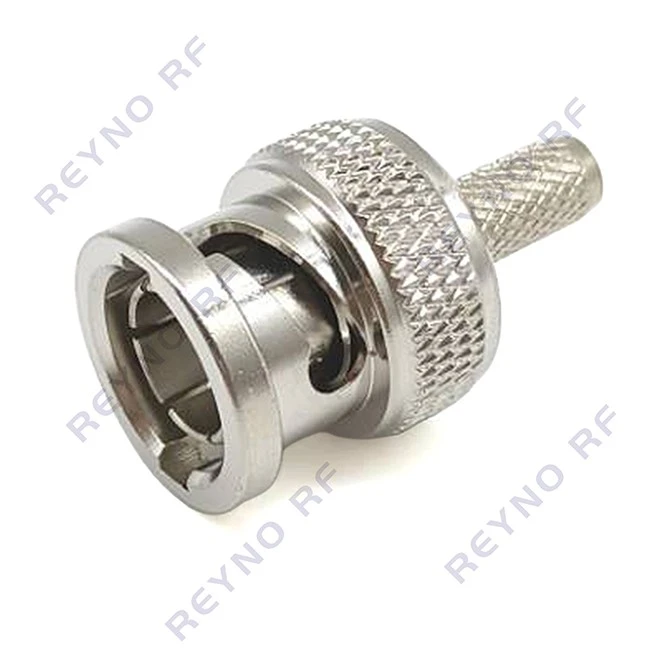

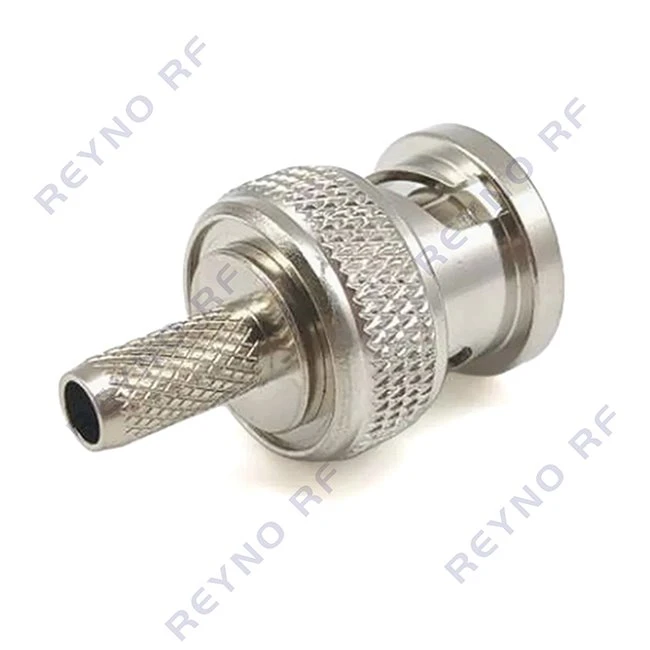

This is a bnc male crimp connector for SYV-75-3 75Ω solid polyethylene insulated coaxial cable. It uses a BNC bayonet locking structure for crimp termination. The cable assembly uses a crimping tool.
SYV-75-3 cable has a shielding layer and a specific cable outer diameter. The assembly is for analog video, closed-circuit monitoring, and cable television RF signal transmission.
Features
This bnc male crimp connector adopts BNC bayonet coupling. Rotation completes locking and release for repeated mating cycles. The cable is terminated by crimping, so no soldering is needed during assembly. This method works for batch cable assembly and field installation. It has a PTFE dielectric and is rated for operation from DC to 2.5 GHz. Its 75-ohm impedance supports video signal transmission. The gold-plated center pin withstands repeated connector mating. This unit is designed for SYV-75-3 coaxial cable. The cable features a small outer diameter and supports flexible routing inside equipment and installations with limited space.

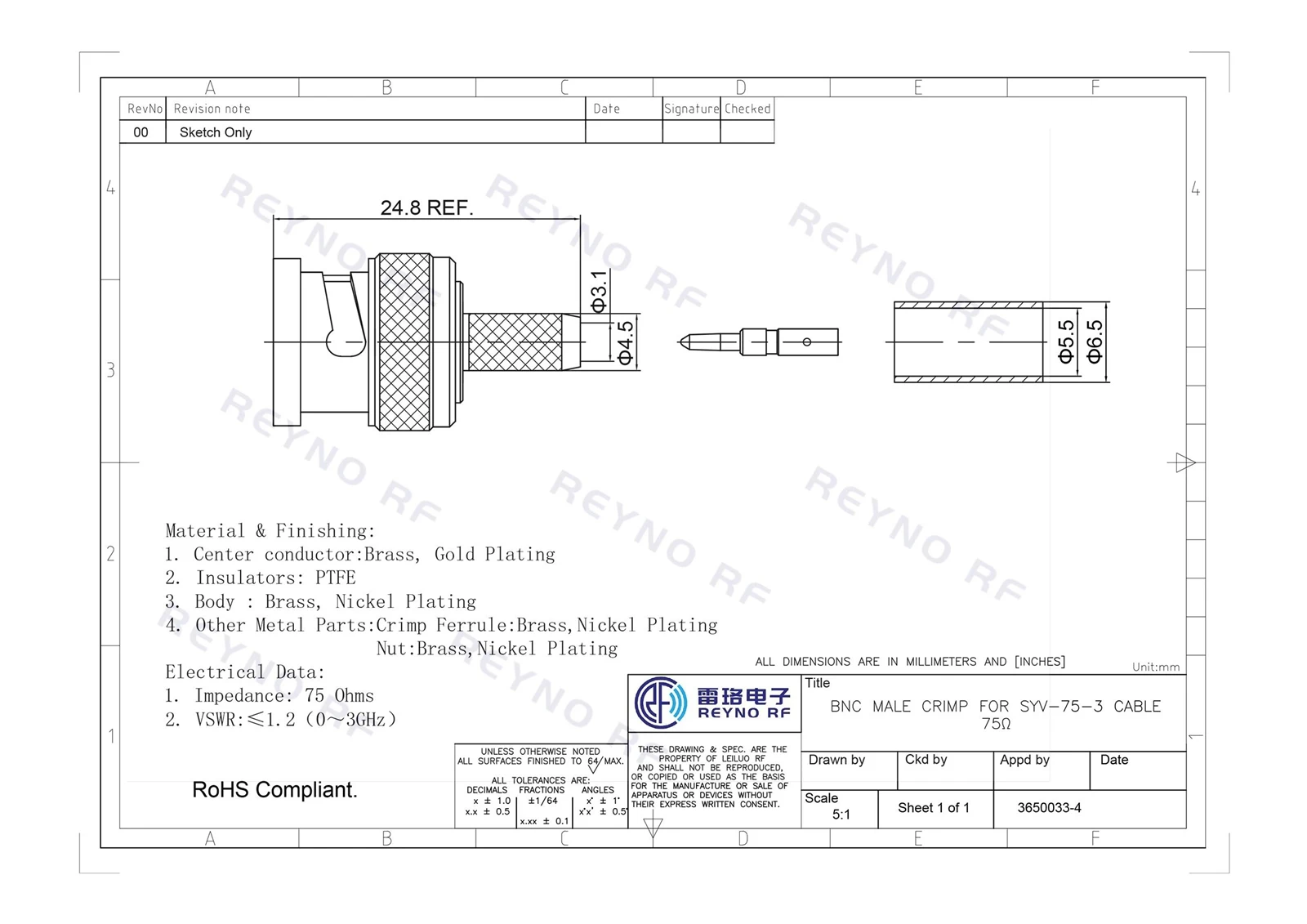

Specifications
|
Connector Type |
BNC-C-75J3 |
|
Cable Type |
SYV-75-3 |
|
Impedance (Ohms) |
75 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.2 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Nickel Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The bnc male crimp connectors have been widely used in the following aspects:
- Typical applications include video interconnection cables linking analog cameras and DVR units for CCTV surveillance. These cables carry closed-circuit monitoring signals for residential sites, office buildings, factories and retail premises.
- They are used for RF wiring in CATV headend rooms, building branch lines and signal distributor interconnections for cable TV systems.
- For audiovisual systems, these assemblies transmit standard-definition video signals in meeting rooms and exhibition displays, and form jumper links between video matrix hardware.
- The cable assemblies support video wiring for road checkpoints, tunnels and toll stations, and also serve vehicle-mounted video signal feeders.
- They can be used as 75-ohm video test jumpers for signal generators and oscilloscopes during equipment inspection and on-site commissioning of broadcast equipment.
- These cables fit low-voltage and security training platforms at vocational schools and communication teaching experiment devices.
FAQ
How can I negotiate and cooperate with you
You can reach us by email, WhatsApp or video meeting. Tell us your product requirements, then we discuss details and confirm orders.
How long is your warranty period
The specific warranty period depends on product types. Please consult our sales team for detailed warranty terms.
How far is your factory from the nearest train station
Our factory is about 17.9 km away from Danyang Train Station.
What are RF connectors
RF connectors are electromechanical components used to connect radio frequency signal transmission lines, widely used in communication, industrial and military equipment.
