Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector bnc male crimp for lmr400 cable bnc-c-jlmr400 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

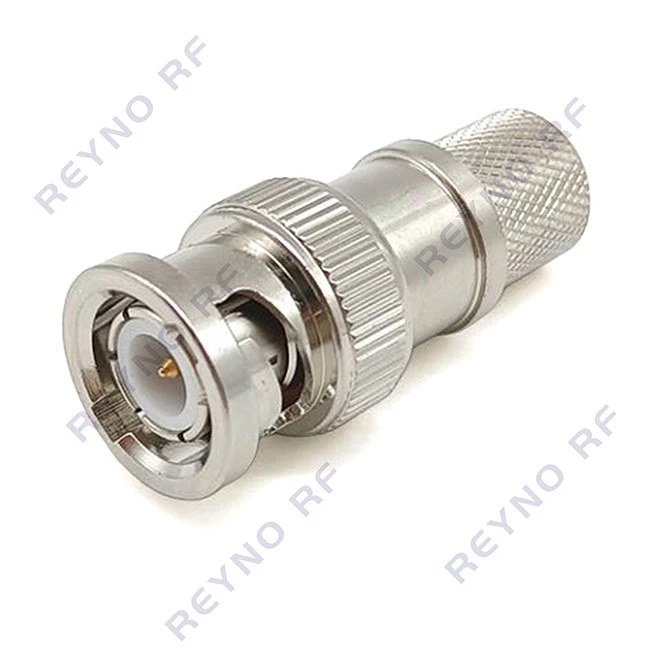

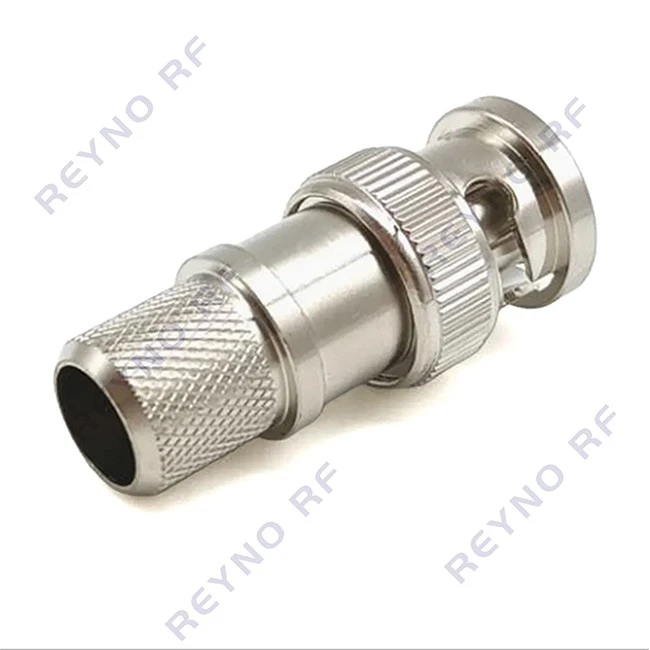

Straight BNC male crimp coaxial connector for LMR400 50 ohm coaxial cable. The lmr 400 bnc connector features a bayonet locking structure. The crimp termination attaches the connector to the cable without soldering. The connector has a gold-plated pin and PTFE dielectric. It operates up to 4 GHz.Applications include oscilloscope and spectrum analyzer test jumpers, EMC test assemblies, analog security monitoring, two-way radios, industrial measurement equipment, broadcast signal wiring and university teaching lab setups.
Features
BNC Bayonet Connection
The BNC-C-JLMR400 connector uses a bayonet coupling system.
LMR400 Cable Compatibility
The rear termination is configured for LMR400-type cable.
Crimp-Type Installation
The lmr 400 bnc connector uses crimp termination.
Cable Assembly
The connector can be combined with different cable lengths and connector configurations.
OEM Manufacturing
For volume orders, connector configuration, cable length, and assembly method can be customized.

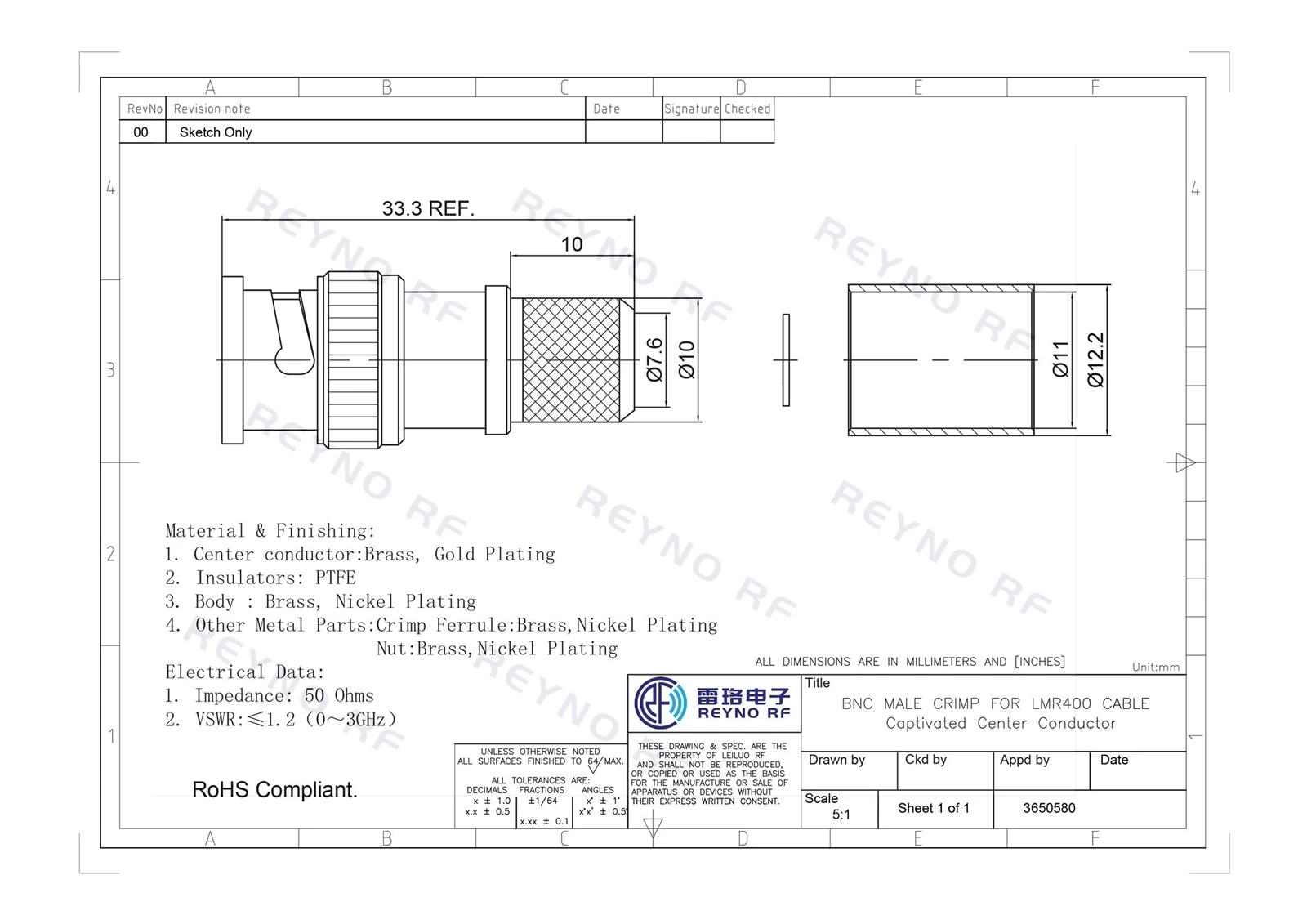

Specifications
|
Connector Type |
BNC-C-JLMR400 |
|
Cable Type |
LMR400 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.2 (0 ~ 3 GHz) |
|
Center Conductor: |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Nickel Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The lmr 400 bnc connectors have been widely used in the following aspects:
Antenna Feed Systems
Connects LMR400 coaxial cable to antennas, antenna interfaces, and radio equipment.
Wireless and Broadcast Systems
Base-station accessories, radio communication systems, and broadcast distribution equipment.
RF Test and Measurement
Test cables and assemblies for electronic test equipment.
Industrial and Laboratory Applications
Industrial communication equipment with external antennas, equipment prototypes, and development platforms.
LMR400 RF Cable Assembly
Tongda provides BNC male cable assemblies in custom lengths and connector configurations.
