Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector din female clamp for 1/2 flexible corrugated tube cable din-k1/2 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

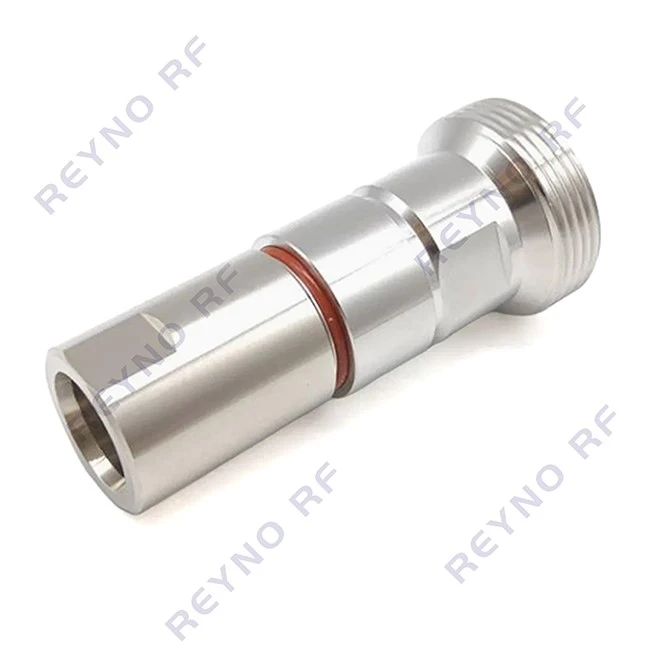

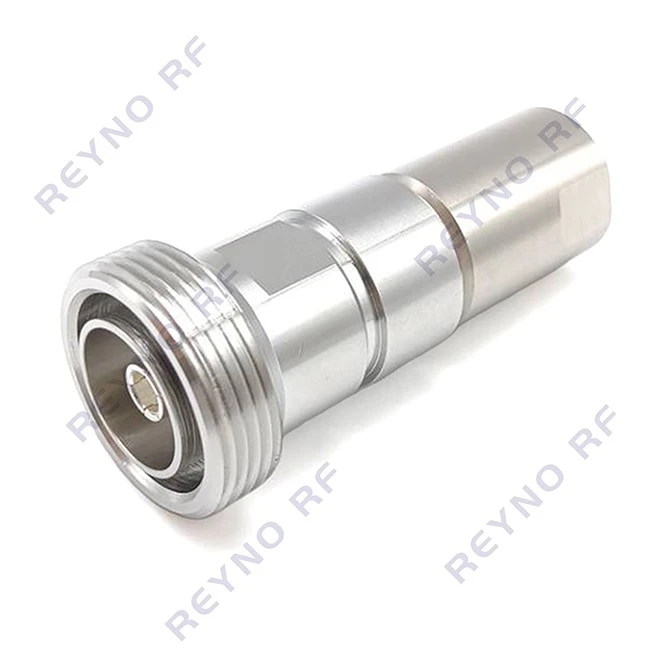

The 7-16 din female connector mates with 1/2-inch flexible corrugated coaxial cable. It serves high-power RF systems such as cellular base stations and broadcast hardware. Clamp termination forms a firm cable connection. The low-PIM design applies to multi-carrier RF systems requiring controlled passive intermodulation.
Features
Low PIM reduces interference and improves network quality.
High power capacity is suitable for macro base stations and broadcast transmissions.
IP68 protection ensures long-term reliable outdoor operation.
Clamp-on installation eliminates the need for welding, maximizing on-site installation efficiency.
7/16 DIN robust interface is vibration-resistant and durable for plugging and unplugging.

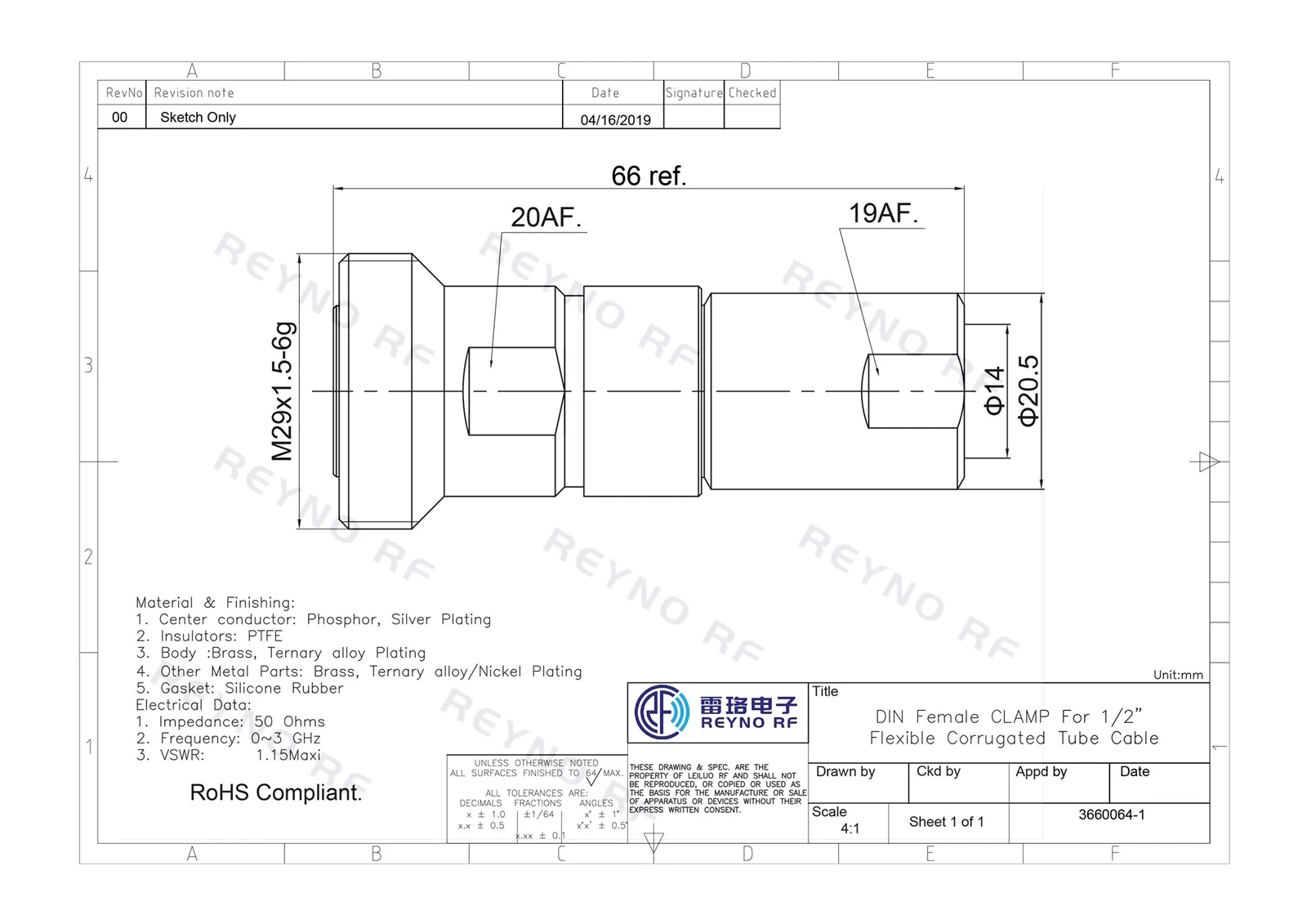

Specifications
|
Connector Type |
DIN-K1/2 |
|
Cable Type |
1/2" Super Flexible Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 7-16 din female connectors have been widely used in the following aspects:
- Mobile Communication Base Stations and Antenna Systems 7-16 din female connectors are used in cellular base stations and antenna feeder systems for 2G through 5G networks.
- Broadcast Television Transmission Systems They fit high-power broadcast transmitter installations.
- Radar, Satellite, and Aviation Systems The connectors serve radar, satellite and aviation communication deployments in demanding operating conditions.
- Testing and Measurement DIN-K1/2 connectors support accurate laboratory and field measurement setups.
- Distributed Antenna Systems (DAS) and Indoor Coverage They are deployed in indoor distributed antenna systems for low-PIM RF links.
Installation and Maintenance
Tool Requirements
While clamp-style connectors require no soldering, dedicated cable stripping tools and torque wrenches are needed to maintain accurate cable cut dimensions and proper clamping torque. Improper preparation or torque may affect PIM and VSWR performance.
Reusability
After clamping, repeated disassembly and reassembly are not advised. Clamping hardware or seals may sustain deformation during removal.
Inner Conductor Connection Types
Two configurations are available: soldered contacts and basket-spring non-soldered contacts. Basket-spring designs reduce installation skill requirements.
FAQ
Where is your factory located
Our factory is located in the 21th Building, Industrial Road, Houxiang, Danbei Dist., Danyang, Zhenjiang, Jiangsu, China.
How do you treat quality complaint
Please send us photos or videos to show the quality problem. We will analyze the problem quickly. If the problem is caused by our side, we will offer replacement, re production or corresponding compensation.
How can I get a sample to check your quality
Please send us your sample requirements. We will prepare samples and send them to you after sample payment and freight are confirmed.
Would you have a discount if l have a large order
Yes, better price will be offered for large‑volume orders according to order quantity.
