Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector din male clamp for 1/2s cable din-j1/2s in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

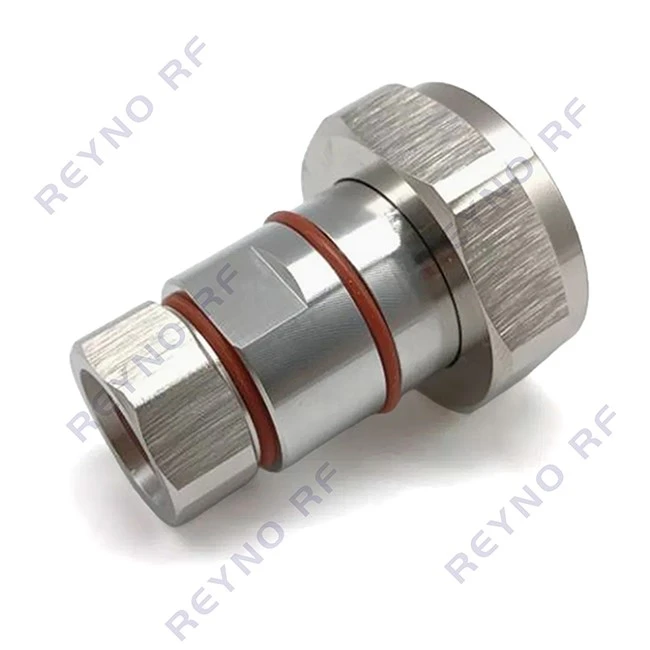

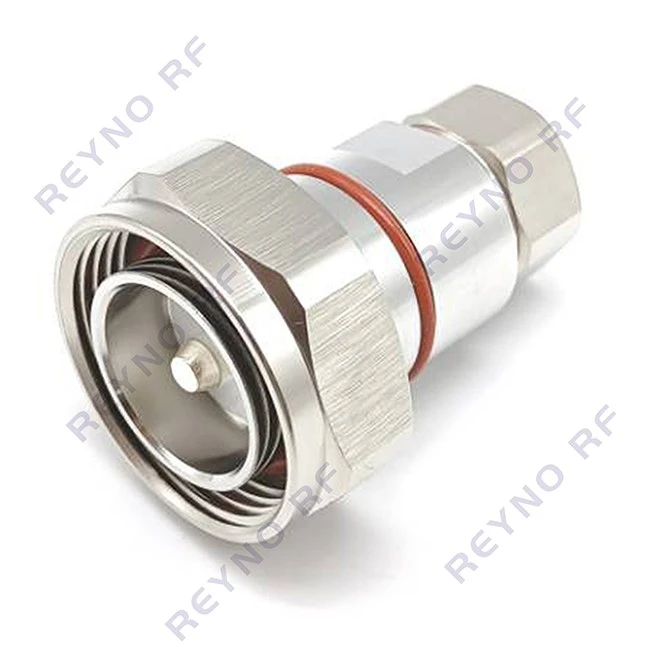

Designed for 1/2 inch super flexible coaxial cables, this 7-16 male clamp connector integrates a standard DIN male interface with a clamp-type cable termination. It is suitable for RF transmission and wireless communication systems where flexible feeder cable routing is required.
Features
Electrical Performance Standard impedance is 50 ohms, with operating frequencies up to 3 GHz. It delivers high power handling and low PIM performance.
Cable Compatibility Designed for 1/2-inch ultra-flexible coaxial cable. Offered with modular tail clip and solderless straight-insert center pin configurations to simplify field assembly.
Cable Handling The ultra-flexible cable is suitable for installations involving repeated cable bending.

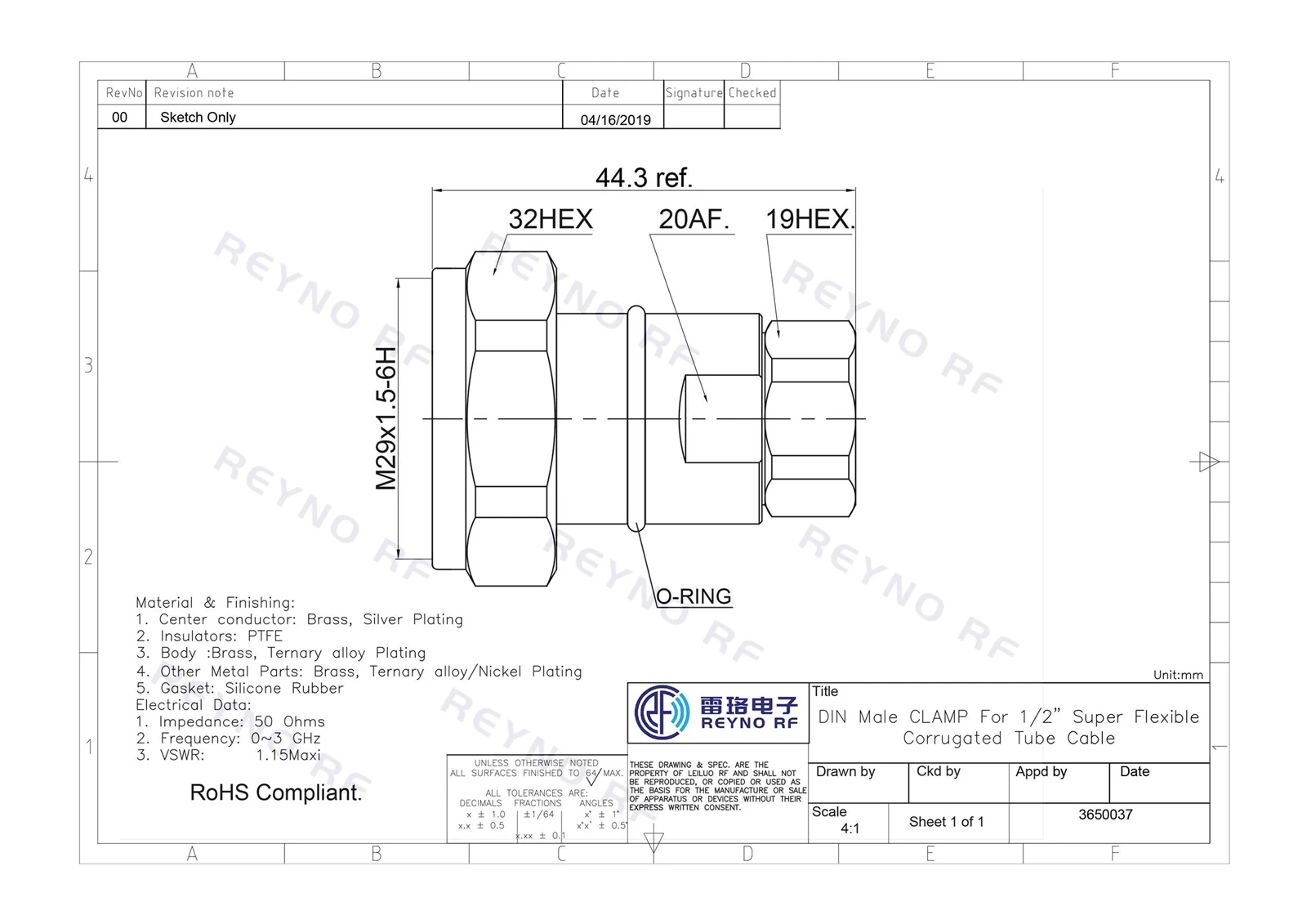

Specifications
|
Connector Type |
DIN-J1/2S |
|
Cable Type |
1/2" Super Flexible Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 7-16 male clamp connectors have been widely used in the following aspects:
The DIN male clamp RF coaxial connector supports flexible installation and secure mechanical fastening. It is used for RF wiring in wireless communication systems. Typical applications include 4G and 5G macro base stations, indoor DAS, and feeder connections between base station antennas and RRUs. It also fits private wireless networks, microwave links, and rail transit wireless coverage systems. The connector works for outdoor antenna RF wiring and emergency communication base station setups for indoor and outdoor wireless communication deployments.
FAQ
Will you provide a tracking number
Yes, we will provide the tracking number after shipment so you can monitor the delivery progress.
Do you provide third-party testing or audit services
We carry out full-range in-house product testing. Third-party testing or factory audits can be arranged upon customer request.
How do I get your quick feedback on pricing
Contact us via WhatsApp for a fast reply. Email is also available for detailed documents and formal quotations.
Can you transport goods to our designated destination
Yes, goods will be transported to your designated destination according to the agreed shipping method and trade terms.
