Introduction

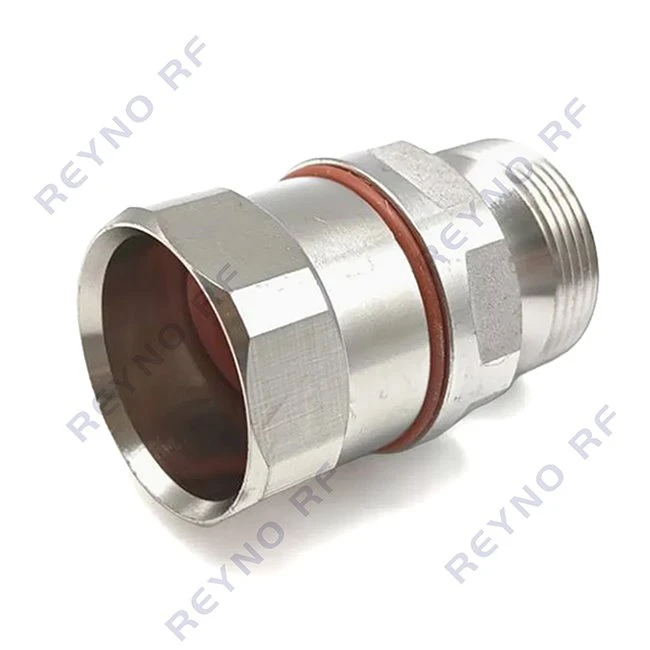

This 7-16 coax connector is built for 7/8 inch flexible corrugated coaxial cables. The 7/16 DIN interface conforms to IEC 60169-4. It targets high-power RF applications requiring low PIM, including cellular base stations and broadcast systems.
Features
Female DIN RF interface
Engineered for 7/8-inch coaxial feeder cable
Clamp-type cable termination mechanism
Ideal for large feeder cable assemblies
Ensures mechanical cable retention
Intermates with DIN male RF interfaces
Supports customized RF feeder cable assemblies

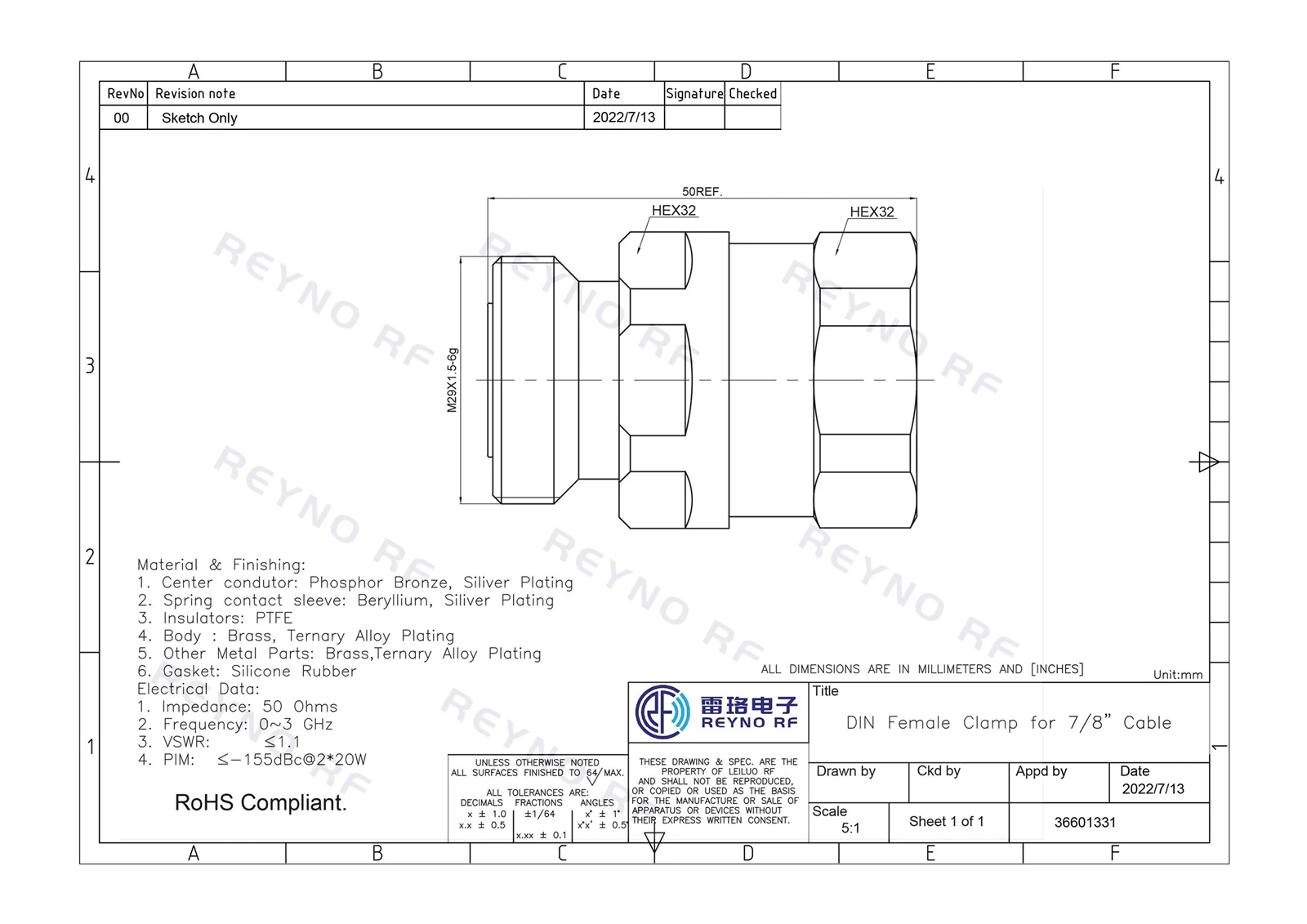

Specifications
|
Connector Type |
DIN-K7/8 |
|
Cable Type |
7/8" Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 7-16 coax connectors have been widely used in the following aspects:
- Mobile communication macro base stations: For main feeder connections between antennas and RRUs or equipment rooms. 7/8-inch cable supports long RF signal runs from tower top to equipment room.
- Broadcast and television transmission towers: For feeder systems between high-power broadcast transmitters and antennas.
- Radar and satellite communication ground stations: For RF links requiring high power handling and low-loss RF transmission.
- Distributed antenna systems (DAS): For backbone feeder connectors in large indoor coverage systems.
FAQ
What is your main market
Our products are exported to Europe, North America, Southeast Asia and other overseas markets.
Why are your prices lower than some companies
We are direct factory, without middle man profit. We optimize production process to control cost while keeping good quality.
Do you provide technical support
Yes, we supply full set technical support during pre-sales and after sales.
Can You Produce According To The Samples
Yes, please send us original samples or clear sample pictures with full specifications.
