Introduction

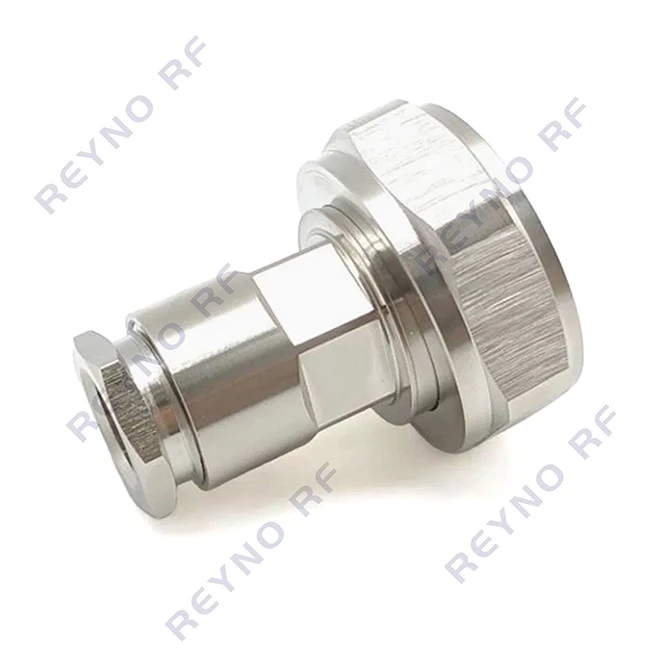

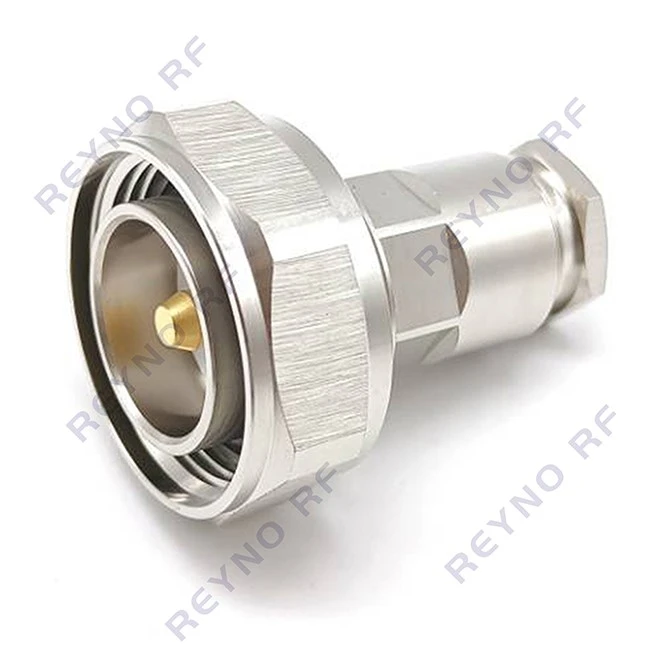

The 7-16 rf connector for RG213 cable is available with either clamp or crimp termination. It is commonly used in high-power RF applications, including cellular base stations. The connector has a 50-ohm impedance and supports frequencies up to 7.5 GHz.
Features
- Clamp-on assembly requires no soldering. It cuts on-site installation time and removes the need for a soldering station.
- Silver-plated conductors help maintain low insertion loss and limit RF signal attenuation.
- Low PIM performance helps reduce passive intermodulation in multi-signal RF systems.
- Sealed construction provides protection against moisture and dust, for indoor and select outdoor deployments.
- Threaded locking design provides resistance to vibration and cable pull.

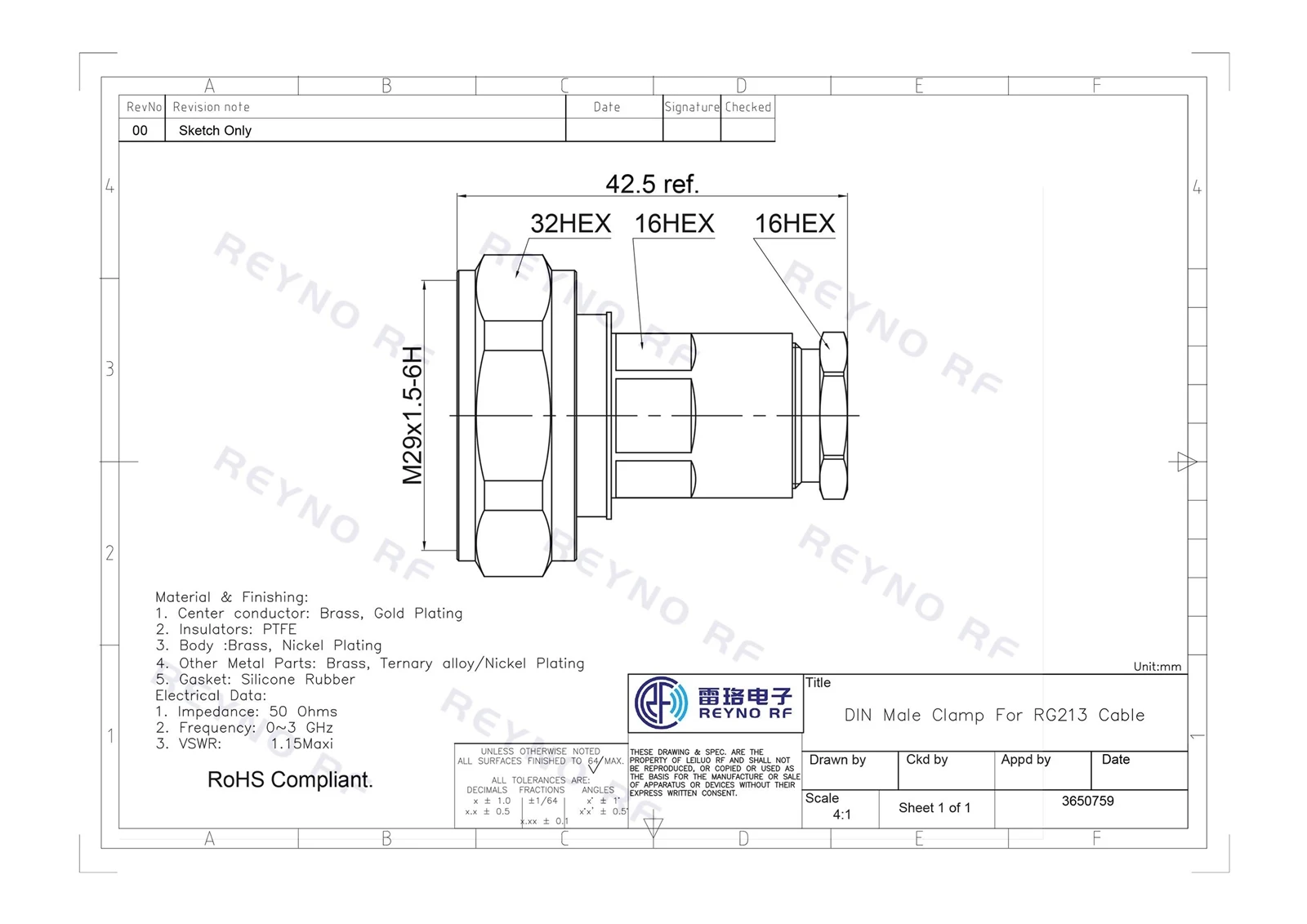

Specifications
|
Connector Type |
DIN-JRG213 |
|
Cable Type |
RG213 Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Nickel Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 7-16 rf connectors have been widely used in the following aspects:
- Mobile Communication Equipment: Precision semi-rigid RF jumpers for 4G/5G RF units and RRU modules
- RF Test and Measurement: Vector network analyzers, PIM test fixtures, laboratory microwave test cable assemblies
- Distributed Antenna Systems (DAS): Trunk amplifiers, RF interconnects within remote RF units
- Microwave RF Passive Components: Filters, couplers, RF connections inside power dividers
- Private Network Communication: Precision RF links for private-network base stations and emergency communication equipment
- Scientific Research Laboratories: Communication RF experimental platforms, microwave measurement systems
Packing
Custom inner and outer packaging is available to meet different customer and market requirements. Customized packaging helps protect products during long-distance shipping and reduces the risk of damage or loss during handling and transit. Packaging options include PP bags, blister cards, laser-printed labels, waterproof export cartons, and wooden pallets.
FAQ
Are customized products kept confidential
Yes, we keep all customer-customized products, drawings and project information strictly confidential.
How can I track logistics after delivery
We will send the tracking number to you after shipment, and you can track the logistics status online.
Is it safe to pay you for the first order
Yes, you can start with sample orders to verify our quality and credibility. Factory audits and video calls are also available. We are a legitimate manufacturer with export licenses and established customers worldwide.
How can I get more detailed product information
Please contact our sales team. We will send catalogs, technical datasheets and related documents for you.
