Zhenjiang Leiluo Electronic Co., Ltd. is one of the leading manufacturers and suppliers of rf coaxial connector din male clamp for 7/8 cable din-j7/8 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk premium products for sale here and get quotation from our factory. Also, customized service is available.
Introduction

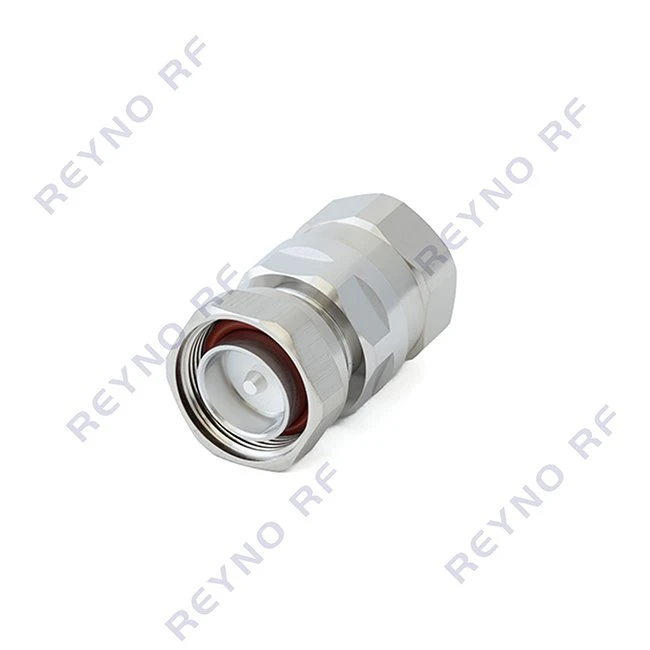

The 7-16 din male connector built for 7/8 inch feeder cable. It's used in wireless communication and RF transmission systems to terminate large feeder cables and connect them to antennas and base station equipment.
7/8 inch feeder cable is commonly used in RF transmission systems where higher power handling and lower cable loss are required. The clamp termination secures the cable mechanically and establishes electrical contact between the cable conductors and the connector contacts.
This connector works for permanent RF installations and custom feeder cable assemblies in communication infrastructure projects.
Features
DIN male RF interface
Designed for 7/8 inch coaxial feeder cable
Clamp-type cable termination
Clamp structure provides mechanical cable retention
Product Configuration
7/8 Inch Cable Compatibility
The 7-16 din male connector is designed for 7/8 inch coaxial feeder cable, commonly used for RF feeder links between antennas and communication equipment. The cable entry matches the specified 7/8 inch feeder cable. Proper cable preparation is important to ensure that the center conductor, dielectric and outer conductor are correctly positioned before the connector is clamped.
Clamp Termination

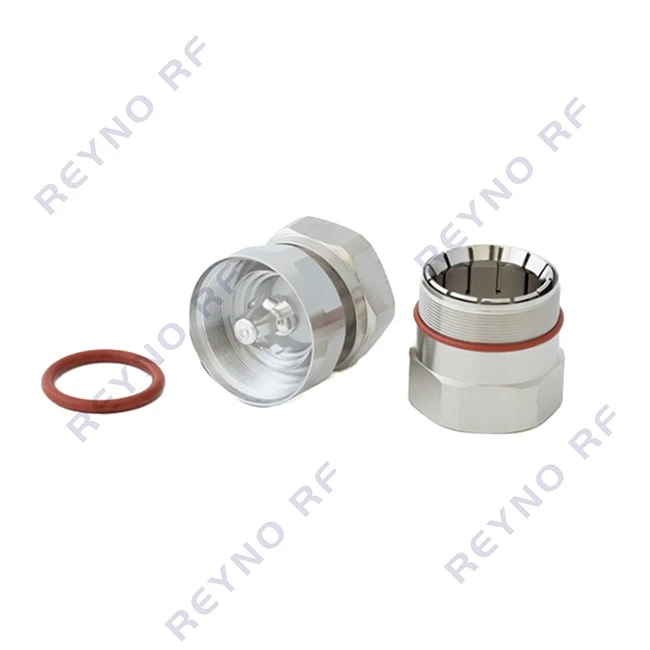

Unlike solder-type connectors, this model uses a clamp-style termination. During assembly, the prepared cable is inserted into the connector and the clamp mechanism is tightened according to the specified procedure.
DIN Male Interface
The DIN-J7/8 connector features a DIN male RF interface for mating with a compatible DIN female connector. The DIN interface is commonly used in antenna feeder systems and base station equipment.

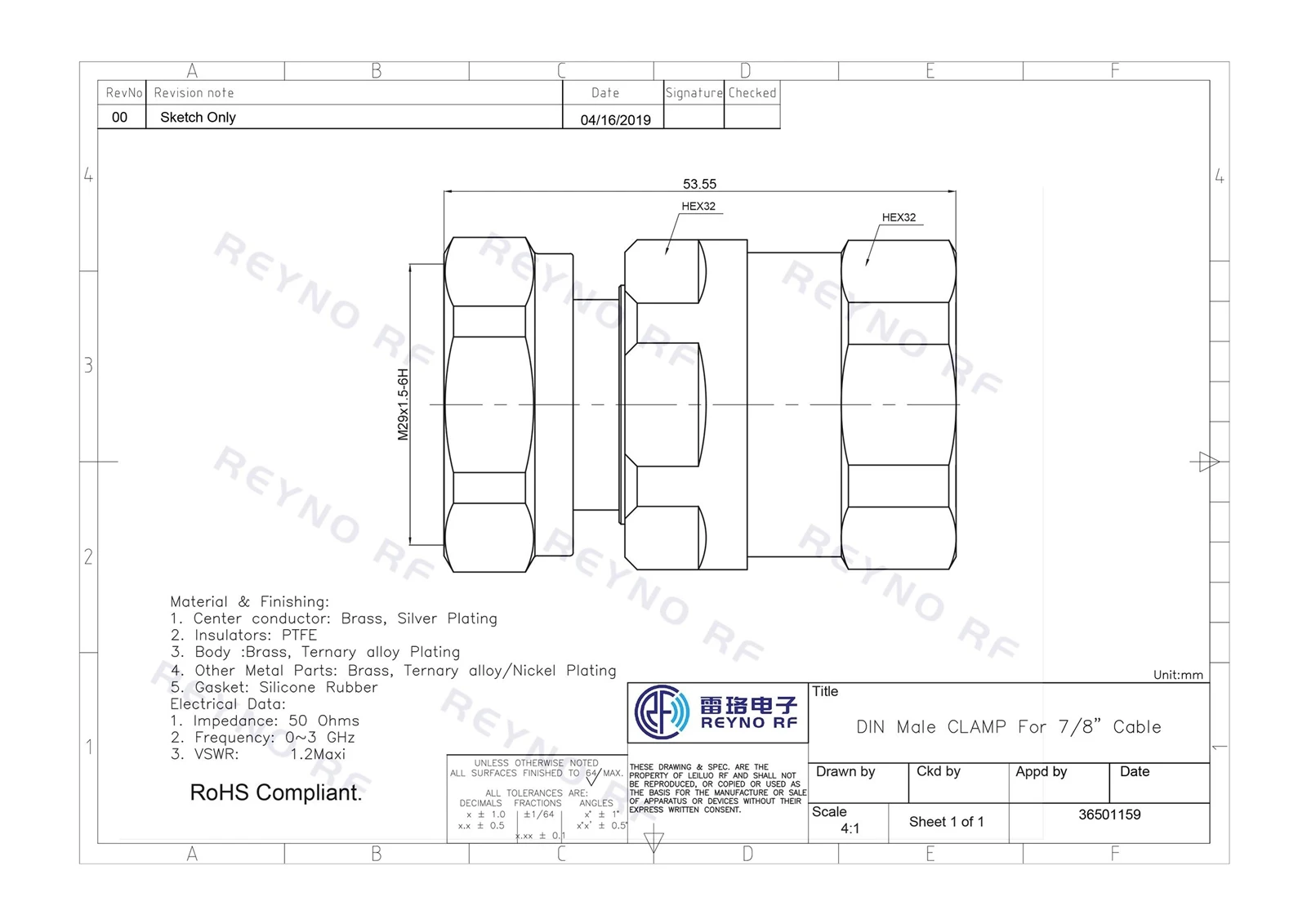

Specifications
|
Connector Type |
DIN-J7/8 |
|
Cable Type |
7/8" Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The 7-16 din male connectors have been widely used in the following aspects:
Cellular Base Stations
Antenna Feeder Lines
RF Transmission Cabinets
Communication Towers
Radio Communication Systems
Antenna Distribution Systems
RF Equipment Rooms
Distributed Antenna Systems (DAS)
Wireless Network Infrastructure
FAQ
Do you provide long-term technical consultation after sale
Yes, we supply long-term technical consultation and after-sales technical support for our customers.
How do you handle quality complaints
Please provide photos or videos showing the defective products and related order information. Our quality team will investigate the root cause quickly. If the defect is caused by our manufacturing, we will provide replacement, re-production or corresponding compensation.
Is the quotation fixed and formal
Yes, we provide formal written quotations with clear specifications, prices, validity periods and terms.
Which products are usually in stock
A small number of standard connector models may be in stock. Please contact our sales to check real-time stock status.
