Introduction

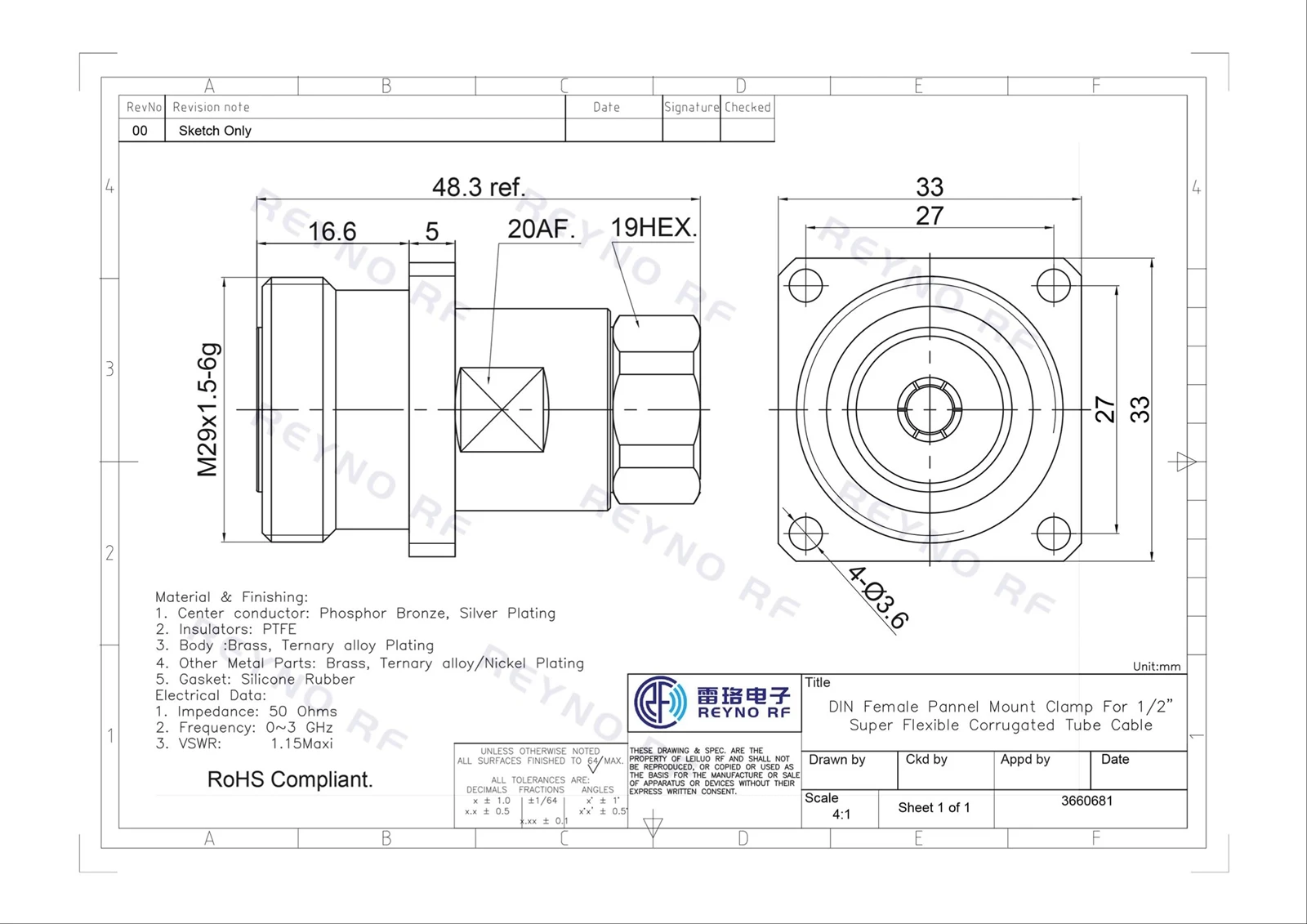

This low-PIM 50Ω RF interface is designed for fixed feeder installations and panel-mounted RF ports. It features a 7/16 DIN (L29) M29×1.5 screw-coupling interface with a clamp-type cable termination and a panel-mount flange or bulkhead-style body. The din 7-16 connector is suitable for base station cabinet feed-through ports, antenna system bulkhead connections, broadcast equipment RF panels, and telecom infrastructure.

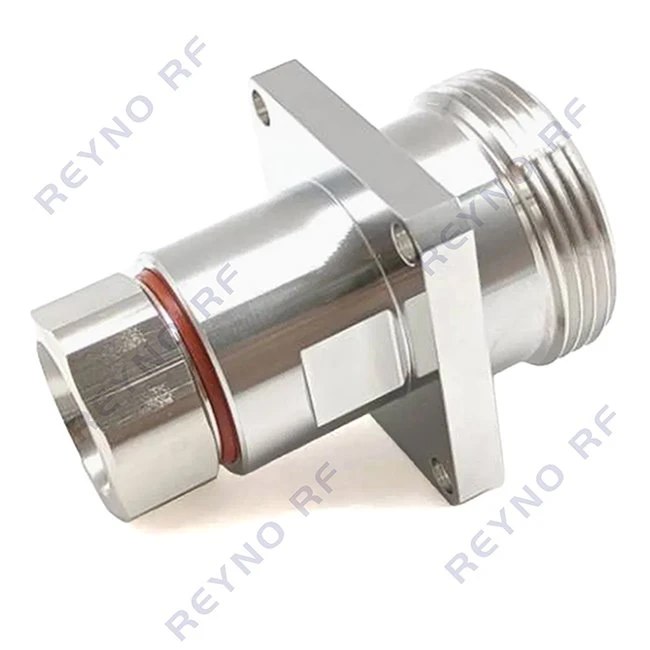

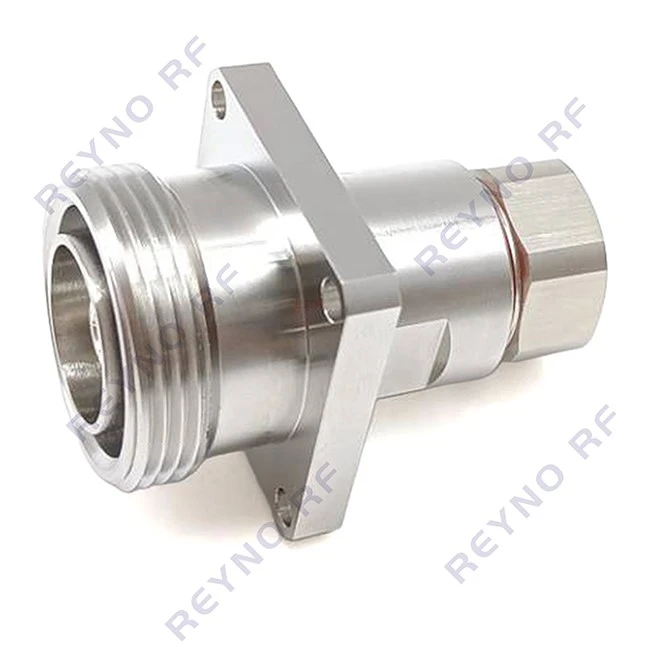

The DIN-KF1/2S connector mounts through a metal panel and connects to 1/2" super flexible corrugated cable.
The panel-mount body of din 7-16 connector is secured to the mounting surface through a flange or bulkhead nut. The clamp-type termination secures the cable outer conductor without requiring soldering, simplifying field installation. Depending on the specific design variant, the center contact is soldered or clamped to the cable's inner conductor.
Specifications
|
Connector Type |
DIN-KF1/2S |
|
Cable Type |
1/2" Super Flexible Corrugated Cable |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Ternary alloy Plating, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The din 7-16 connectors have been widely used in the following aspects:
Base station cabinet RF feedthrough port
Antenna system partition connection
Broadcast and radio transmitting equipment panel
Distributed antenna system (DAS) wall panel
Test fixture and RF measurement equipment panel
Telecommunications infrastructure equipment chassis
Installation scenarios requiring panel mounting of fixed 7/16 DIN female RF ports and connection to 1/2 inch ultra-flexible corrugated cables
Selection Recommendations
Confirm Cable Model
Verify connector compatibility with the brand and model of your ultra-flexible cable.
PIM Performance
For 4G/5G base station deployments, select models with PIM performance of ≤ -160 dBc.
Verify Frequency Range
Choose the 7-16 din female connector according to your actual operating frequency band.
Confirm Installation Method
Check panel mounting requirements, such as a 4-hole flange or bulkhead mounting styles.
Protection Rating
For outdoor deployments, select an IP rating suitable for the installation environment.
