Introduction

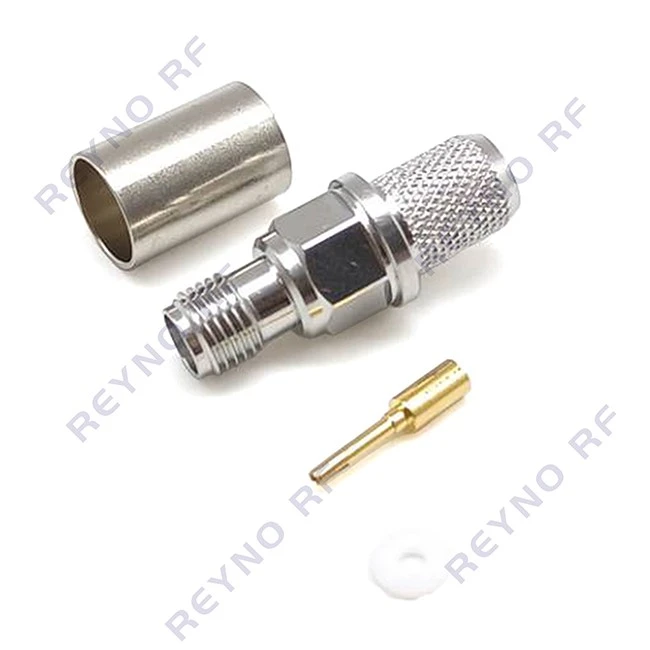

This standard sma female coax connector terminates LMR300 coaxial cable for RF and microwave assemblies. It has a threaded coupling interface and crimp-style rear termination. The sma female rf connector joins LMR300 cable runs with equipment, antennas, RF modules and other SMA-compatible components. Crimp termination fixes the cable at the rear, usable for single field assembly and high-volume OEM production.
Features
Solder Termination
The center pin and outer shield are attached using a solder cup.
90° Geometry
The SMA-C-KLMR300 connector features a right-angle design.
RG316 Compatibility
The internal dimensions are matched to the dielectric and conductor sizes of RG316/U cables.
Frequency Range
The sma female coax connector operates from DC to 12.4 GHz. It uses a PTFE dielectric and gold-plated contacts.
Construction
The body is made of brass with corrosion-resistant plating.

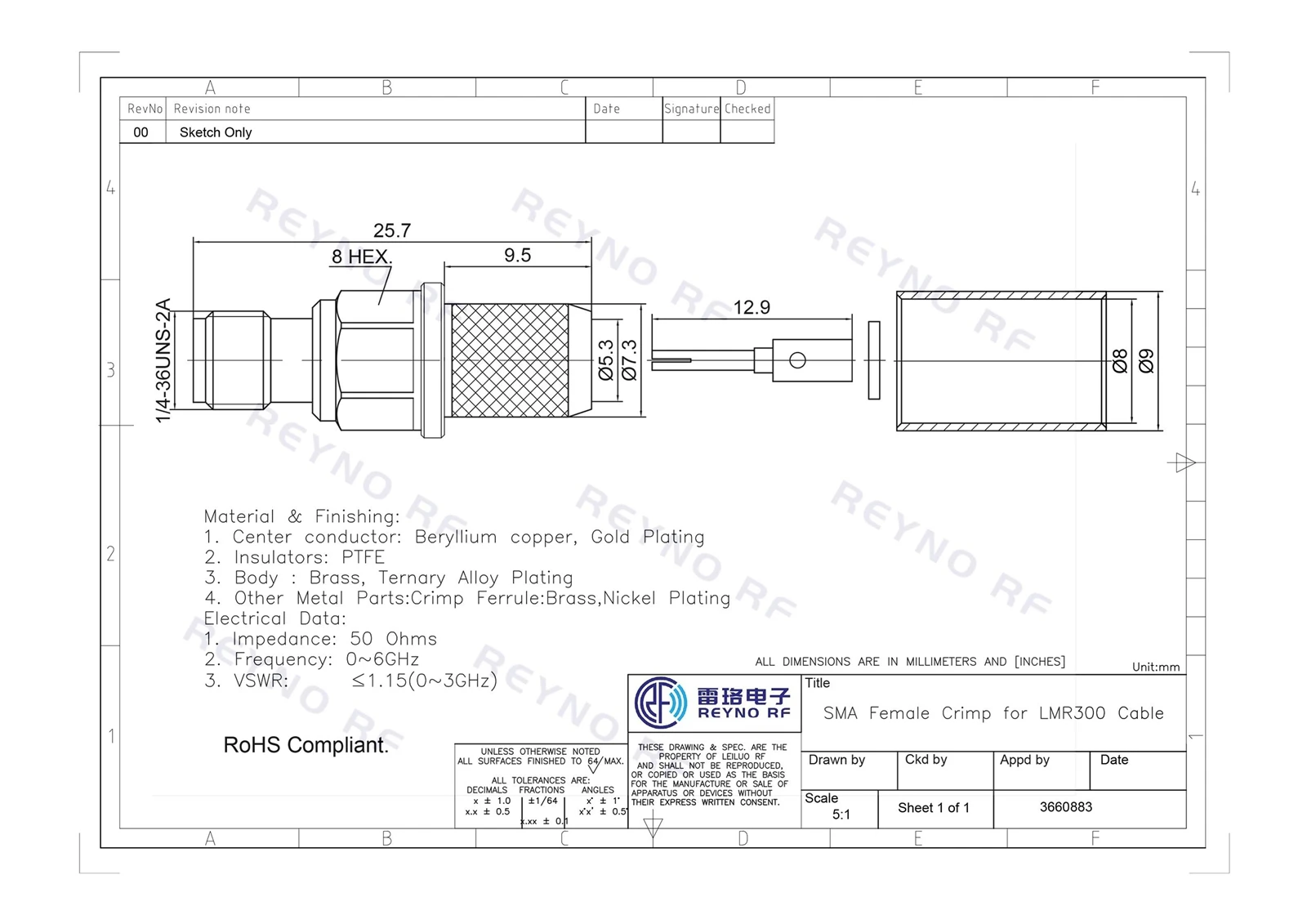

Specifications
|
Connector Type |
SMA-C-KLMR300 |
|
Cable Type |
LMR300 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Beryllium copper, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The sma female coax connectors have been widely used in the following aspects:
- Wireless Communication: Used for 2.4 GHz and 5.8 GHz Wi-Fi antennas, industrial wireless APs, CPE devices, 4G/5G IoT antenna feeders and point-to-point wireless bridge links.
- Surveying and Positioning: Used with GNSS and RTK receivers, Beidou/GPS antenna extension cables, agricultural machinery guidance systems and surveying drone ground stations.
- IoT and Smart Cities: Used for outdoor monitoring gateways, smart street light terminals, environmental monitoring sensors and remote wireless data acquisition systems for oil, gas and water management.
- RF Testing and Measurement: Used as RF test jumpers and interconnection cables for spectrum analyzers, signal generators, power meters, amplifiers, filters and other microwave components.
- Industrial Automation and Special Equipment: Used for AGV communication systems, industrial robot RF links, portable radios, emergency communication equipment and wireless security monitoring systems.
- Amateur Radio and Broadcasting: Used for outdoor amateur radio antenna feeders, compact broadcast equipment and low-power microwave communication systems.
FAQ
What is your main market
Our products are exported to Europe, North America, Southeast Asia and other overseas markets.
Who are your main customers
Our main customers include LUXSHAREICT, Rosenberger, AMPHENOL, HUBER+SUHNER and ANDREW.
Do you have an export license
Yes, we have a complete export license and rich experience in international trade.
What certificates do you have
Our products can meet CE and RoHS standards, and our company is ISO 9001 certified.
