Introduction

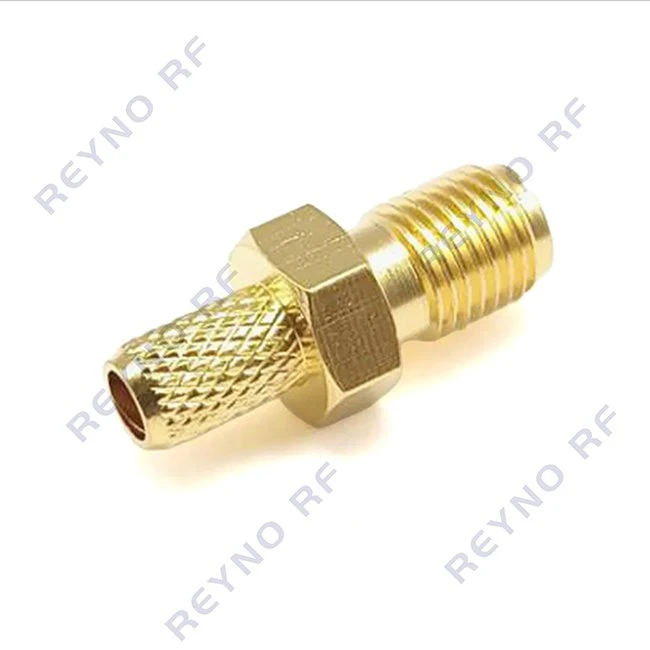

RF Coaxial Connector SMA Female Crimp for LMR195, Crimp type. The SMA FEMALE CRIMP connector body is brass, gold-plated, The center conductor is beryllium copper, gold-plated, and PTFE is commonly used as dielectric insulator. It is specially matched with 50 Ohm low-loss LMR195 coaxial cable, and widely applied in 5G & Wi-Fi antennas, wireless base stations and GPS positioning and more.
Product Structure

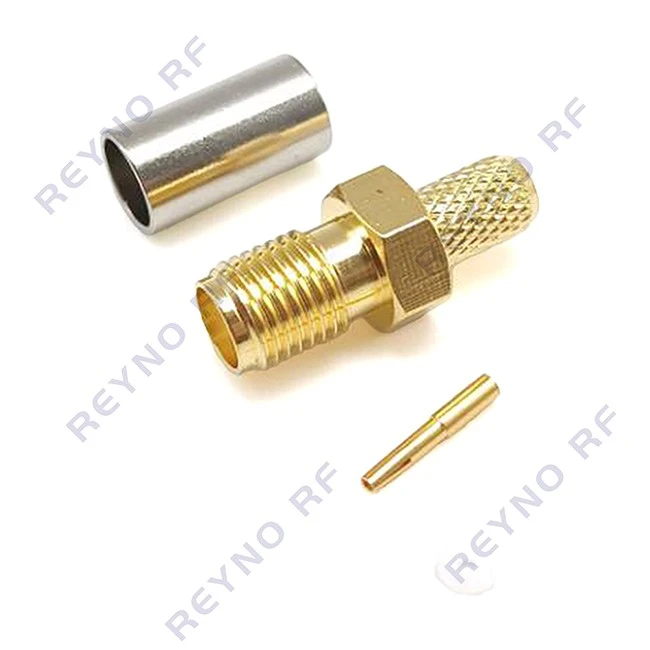

The SMA FEMALE CRIMP connector consists of an SMA female interface, center contact, dielectric insulator, connector body and cable termination section. The SMA female interface receives the corresponding SMA male connector. The threaded coupling structure maintains the mechanical connection after mating. On the cable side, the LMR195 coaxial cable is prepared according to the specified stripping dimensions, and the termination sleeve is crimped to secure the cable.
Features
SMA Interface
The connector features a threaded locking mechanism.
Crimp Termination
The outer conductor is attached by crimping.
PTFE Insulation
The connector uses a PTFE dielectric.
Gold-Plated Contacts
The female contact is made of gold-plated beryllium copper.
LMR195 Compatibility
The SMA-C-KLMR195 connector is designed for LMR195 cable.

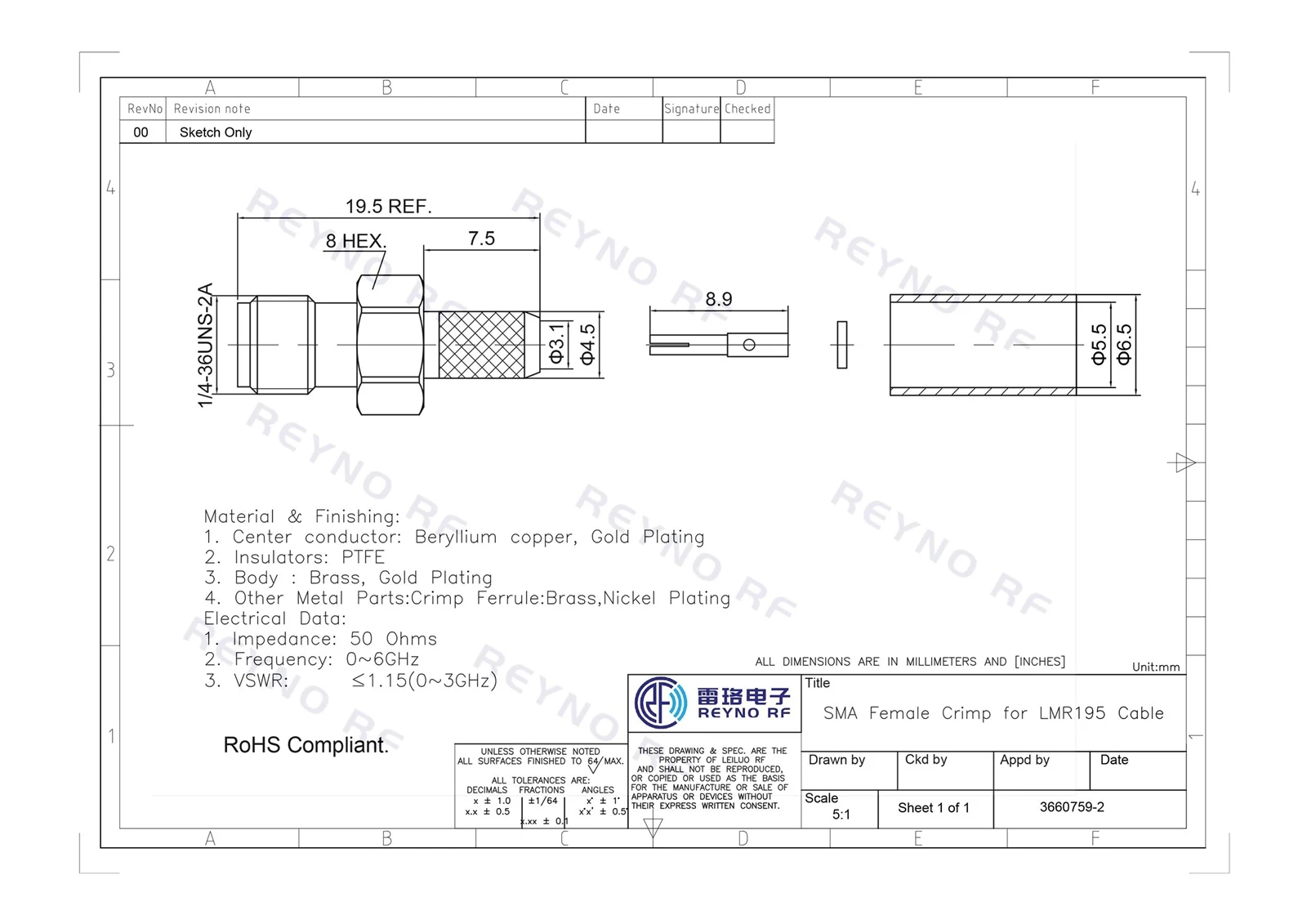

Specifications
|
Connector Type |
SMA-C-KLMR195 |
|
Cable Type |
LMR195 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Female |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor: |
Beryllium copper, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Gold Plating |
|
Other Metal Components |
Brass, Nickel Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The SMA FEMALE CRIMP connectors have been widely used in the following aspects:
Cellular base stations and repeaters
Amateur radio and commercial two-way radio systems
Wi-Fi and WLL systems
Broadcast and satellite communication ground stations
