Introduction

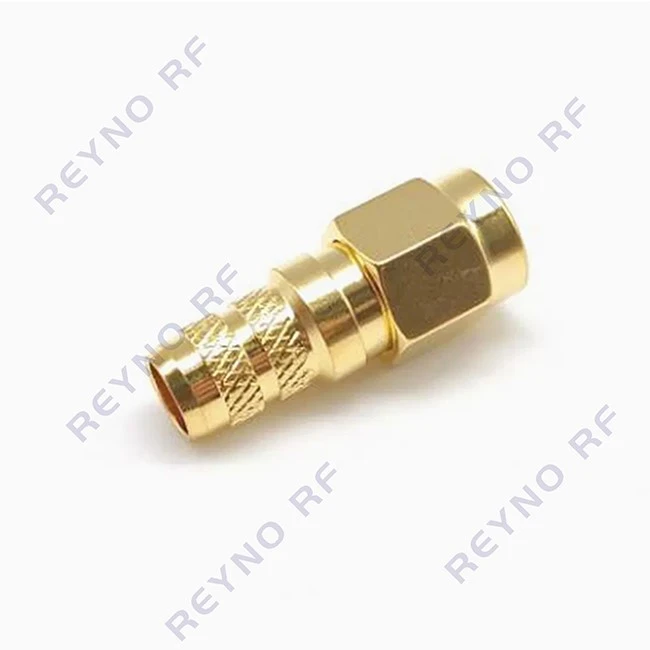

This straight SMA male crimp connector mates with LMR240 low-loss 50 ohm coaxial cable. The connector uses a brass housing and gold-plated contact. PTFE dielectric is fitted inside.The lmr 240 sma connector has low VSWR, rated for frequencies up to 12.4 GHz. Crimp termination does not require soldering for field cable assembly. Typical applications include WiFi antennas, IoT modules, GPS & RTK feeders and RF test cables.
Features

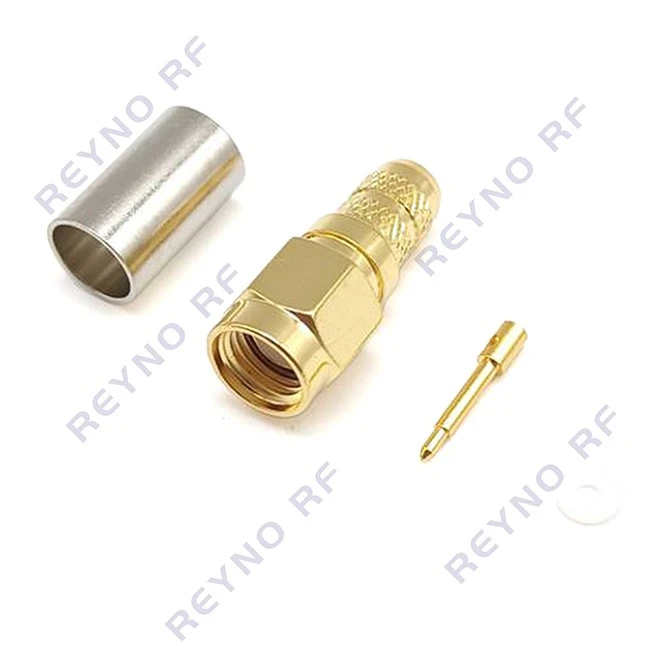

- This SMA-C-JLMR240 connector has an SMA male threaded interface and is machined to fit LMR240 coaxial cable. Cable termination is completed by crimping.
- The compact structure fits installations with limited space.
- The lmr 240 sma connector delivers a 50-ohm RF connection.
- Threaded coupling forms the mechanical connection for RF and microwave setups.
- We accept OEM orders and produce cable assemblies according to required equipment interfaces and cable layout.

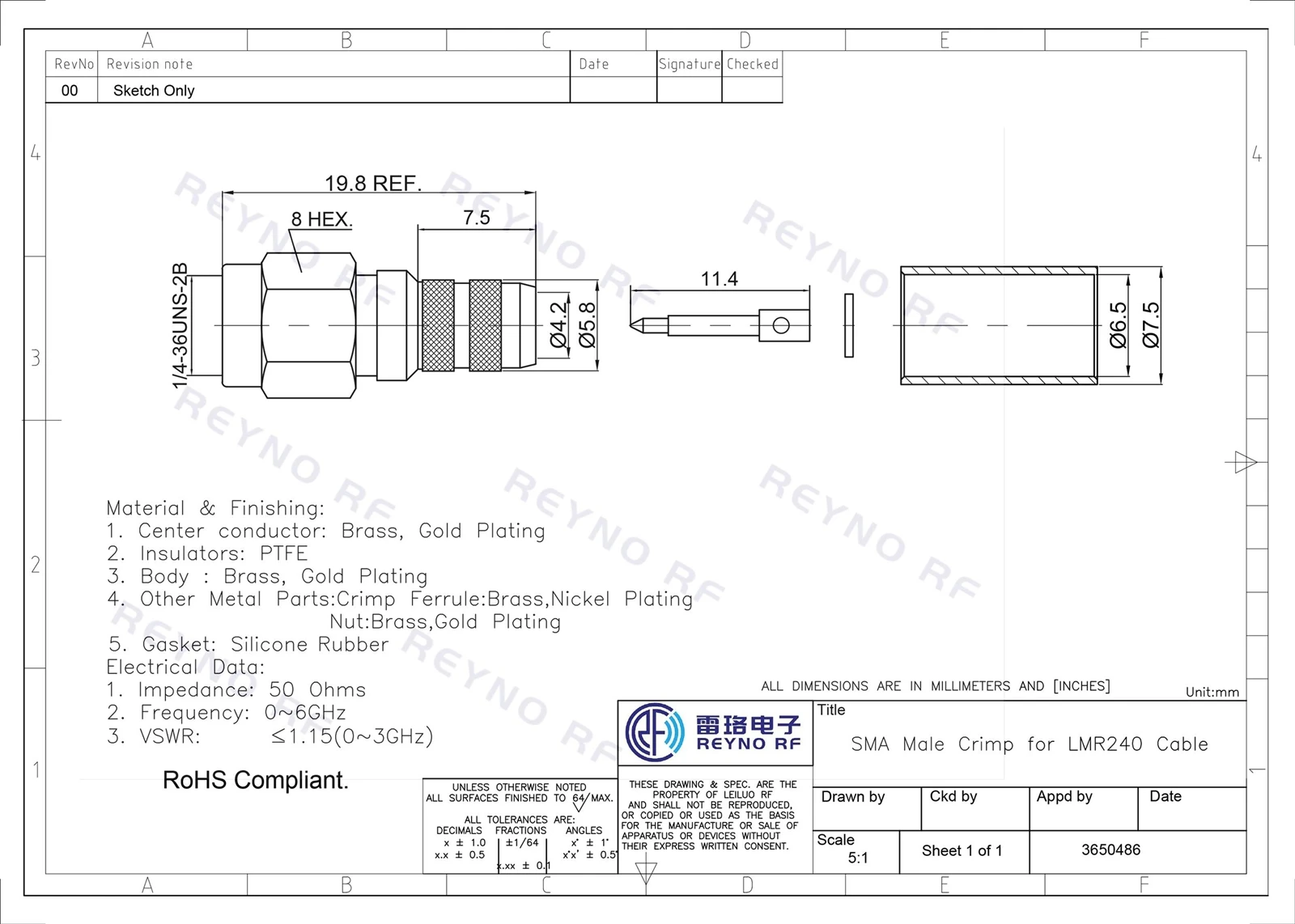

Specifications
|
Connector Type |
SMA-C-JLMR240 |
|
Cable Type |
LMR240 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Golding Plating |
|
Other Metal Components |
Brass, Nickel Plating,Golding Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The lmr 240 sma connectors have been widely used in the following aspects:
2.4G/5.8G Wireless AP, WiFi Antenna Feeder
IoT, RTK/GPS Antenna Connection Cable
Portable Radio, RF Module
Laboratory RF Test Cables
Industrial Wireless Communication Equipment
