Introduction

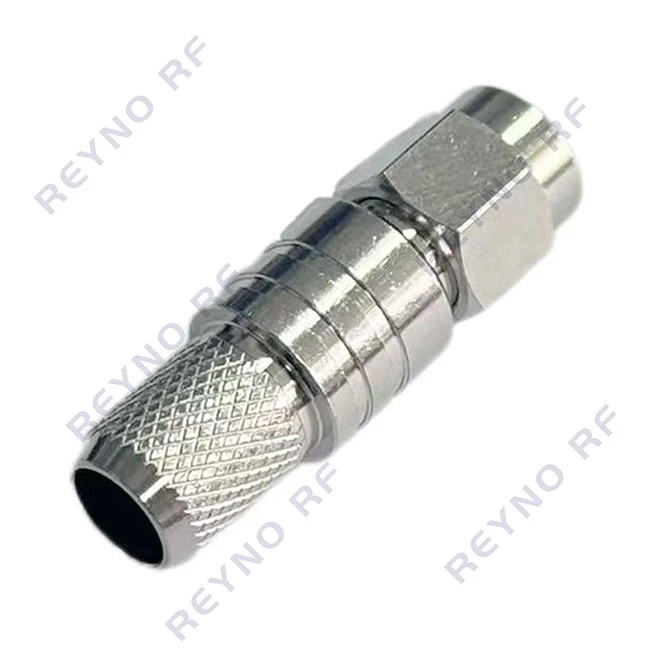

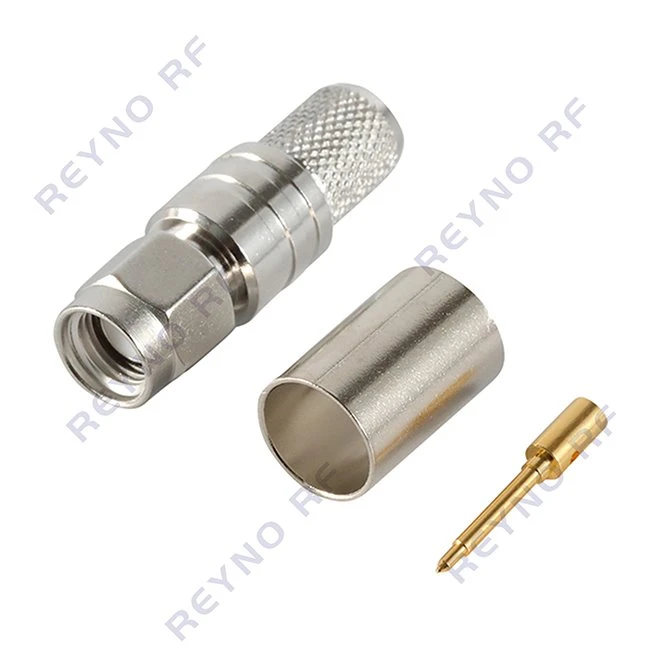

This SMA male crimp connector is machined to match LMR300 50-ohm coaxial cable for RF and microwave assemblies. The SMA-C-JLMR300 connector features a compact SMA male interface with a threaded coupling, and uses a crimp termination.
The sam type male connector is designed to match the dimensions of LMR300 cable. During assembly, the center conductor, dielectric, and outer shield are positioned according to the cable structure. The threaded interface mates with a matching SMA female port.
The compact body and crimp termination make it suitable for RF cable assemblies used with communication hardware, antenna systems, test instruments, and other electronic devices.
Features
LMR300 Compatibility
Machined to match the dimensions of LMR300 coaxial cable.
Compact SMA Interface
Suitable for RF equipment with limited installation space.
Crimp Termination
The sam type male connector uses a crimp method for cable assembly.
Threaded Coupling
Mates with a matching SMA female port.

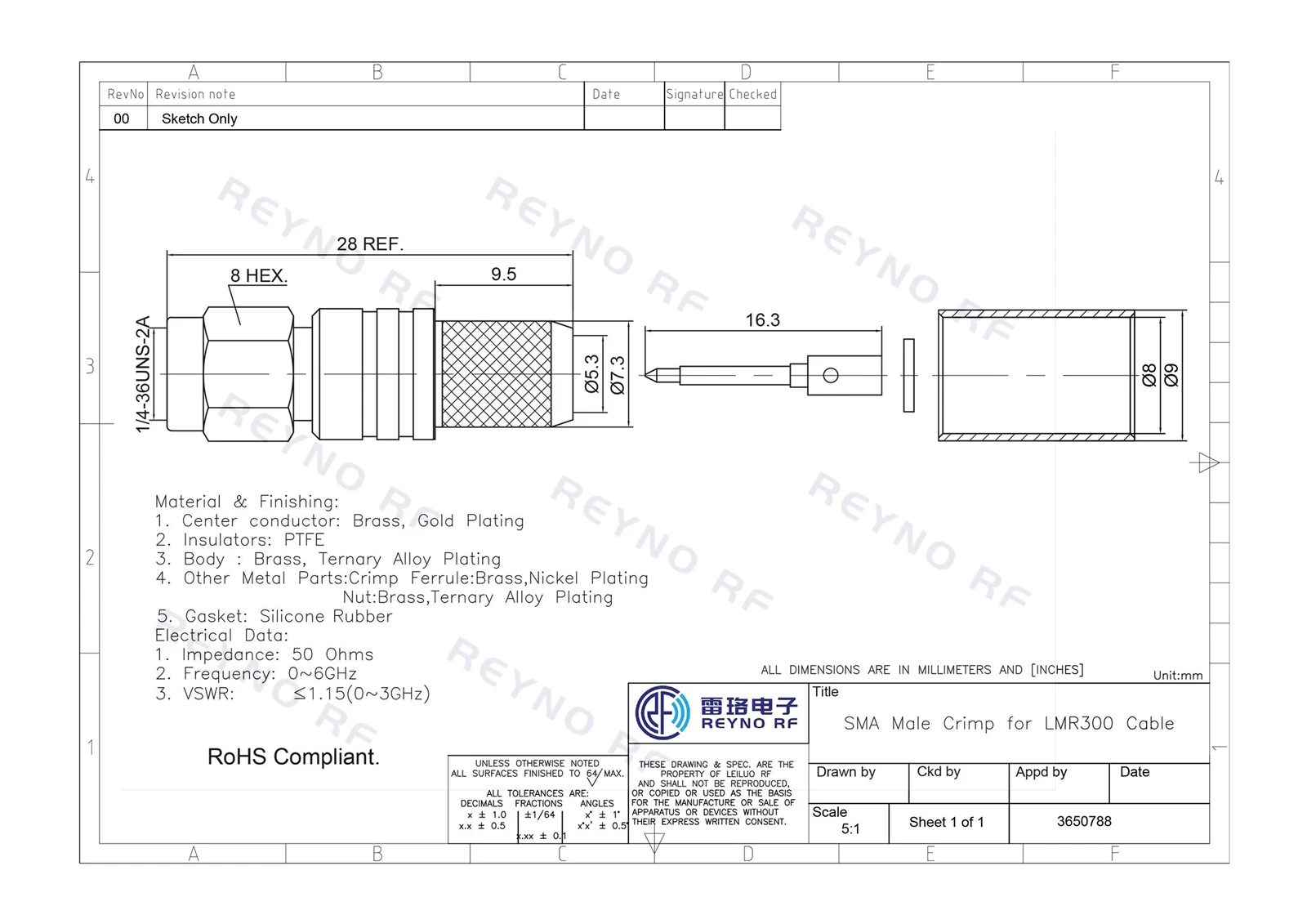

Specifications
|
Connector Type |
SMA-C-JLMR300 |
|
Cable Type |
LMR300 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor |
Brass, Gold Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy Plating |
|
Other Metal Components |
Brass, Nickel Plating, Ternary Alloy Plating |
|
Sealing Gasket |
Silicone Rubber |
Applications
The sam type male connectors have been widely used in the following aspects:
2.4G/5.8G High Gain Antenna Feeder
RTK/GNSS Mapping and Positioning Antenna Connection Cable
Industrial Wireless Private Network, Outdoor IoT Communication Equipment
RF Test and Measurement Cables
Small Base Station, Wireless Repeater Module
