Introduction

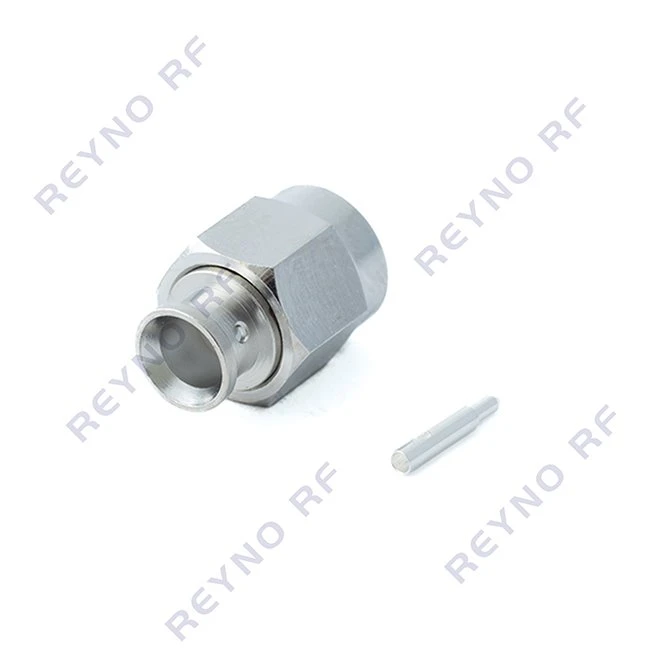

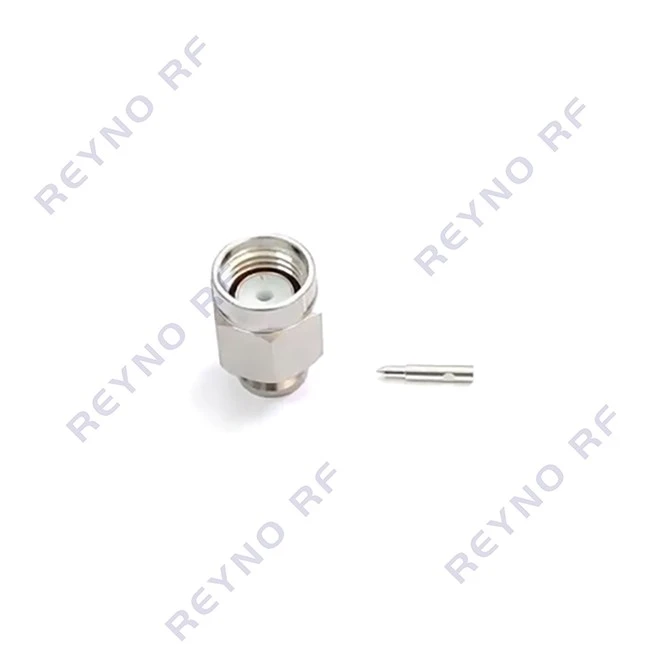

This sma male rf connector is designed for RG141 50-ohm semi-flexible coaxial cable. Soldering joins the inner conductor and outer braid during cable assembly. Gold-plated contacts and PTFE dielectric are fitted within the connector. The unit is rated for operation up to 12.4 GHz. Its SMA male threaded coupling mates with a corresponding SMA female port.
RG141 coaxial cable is selected for RF and microwave cable assemblies needing semi-flexible structure and high-temperature performance.
Features
Welded Termination
The inner conductor and shielding layer are welded together.
PTFE Insulation
The sma male rf connector uses a PTFE dielectric.
Gold-Plated Center Pin
The center pin is gold-plated.
RG141 Compatibility
The connector is designed for RG141 semi-flexible cable.
SMA Interface
The SMA-C-JLMR141 connector features a standard SMA miniature threaded interface.

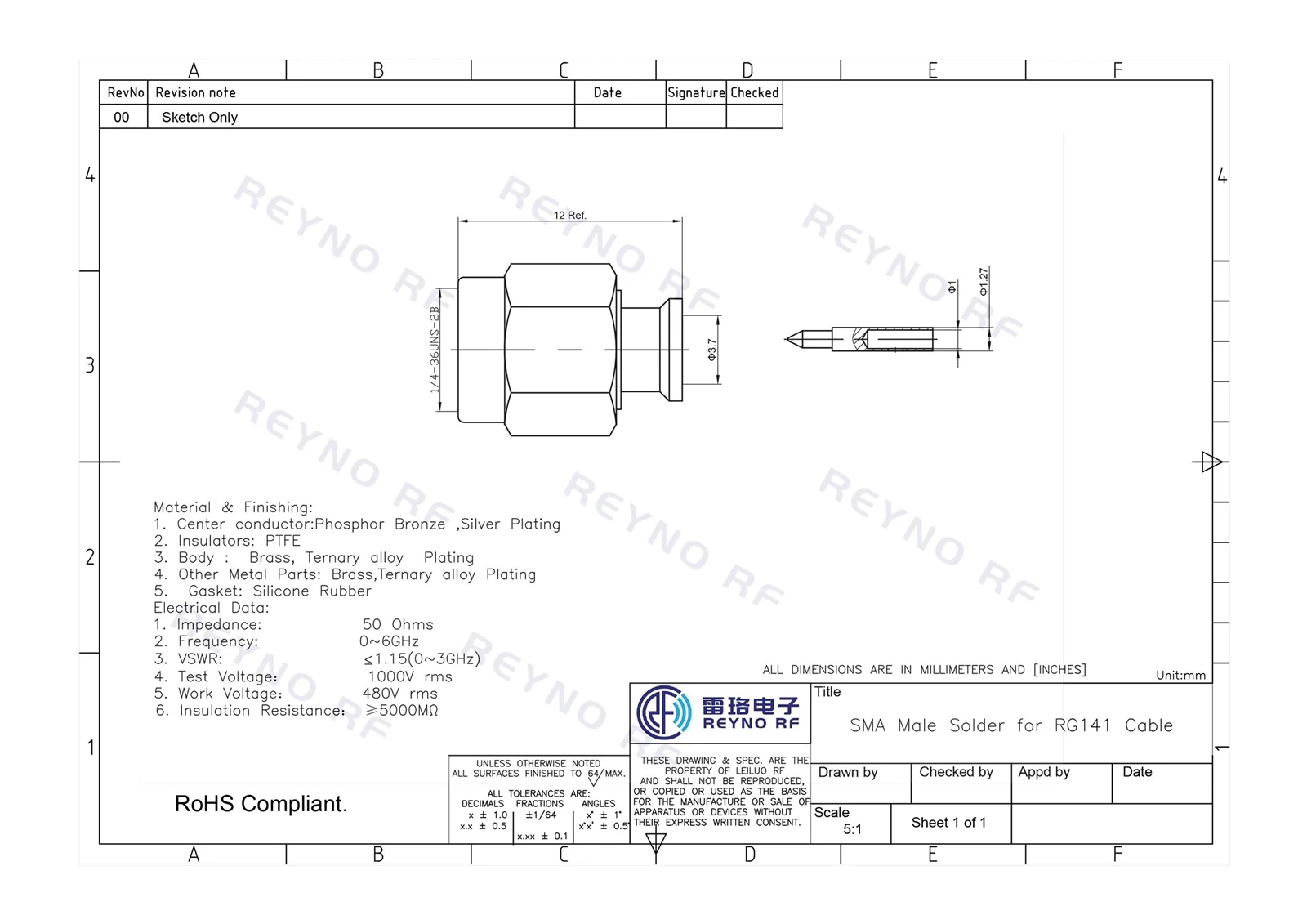

Specifications
|
Connector Type |
SMA-C-JLMR141 |
|
Cable Type |
RG141 |
|
Impedance (Ohms) |
50 |
|
Frequency |
0~6GHZ |
|
Gender |
Male |
|
VSWR |
≤1.15 (0 ~ 3 GHz) |
|
Center Conductor: |
Phosphor Bronze, Silver Plating |
|
Insulator |
PTFE |
|
Connector Body |
Brass, Ternary Alloy Plating |
|
Other Metal Components |
Brass, Ternary Alloy Plating |
|
Sealing Gasket |
Silicone Rubber |
|
Test Voltage |
1000V rms |
|
Work Voltage |
480V rms |
Applications
The sma male rf connectors have been widely used in the following aspects:
Instrumentation: RF test jumpers for laboratory instruments.
Mobile Platforms: Miniature microwave components for airborne and vehicle-mounted communication systems.
Critical Infrastructure: Internal RF wiring assemblies for radar and satellite communication equipment.
Industrial Applications: Wireless RF links for high-temperature industrial environments.
Field Testing: Assemblies for portable RF testing equipment.
